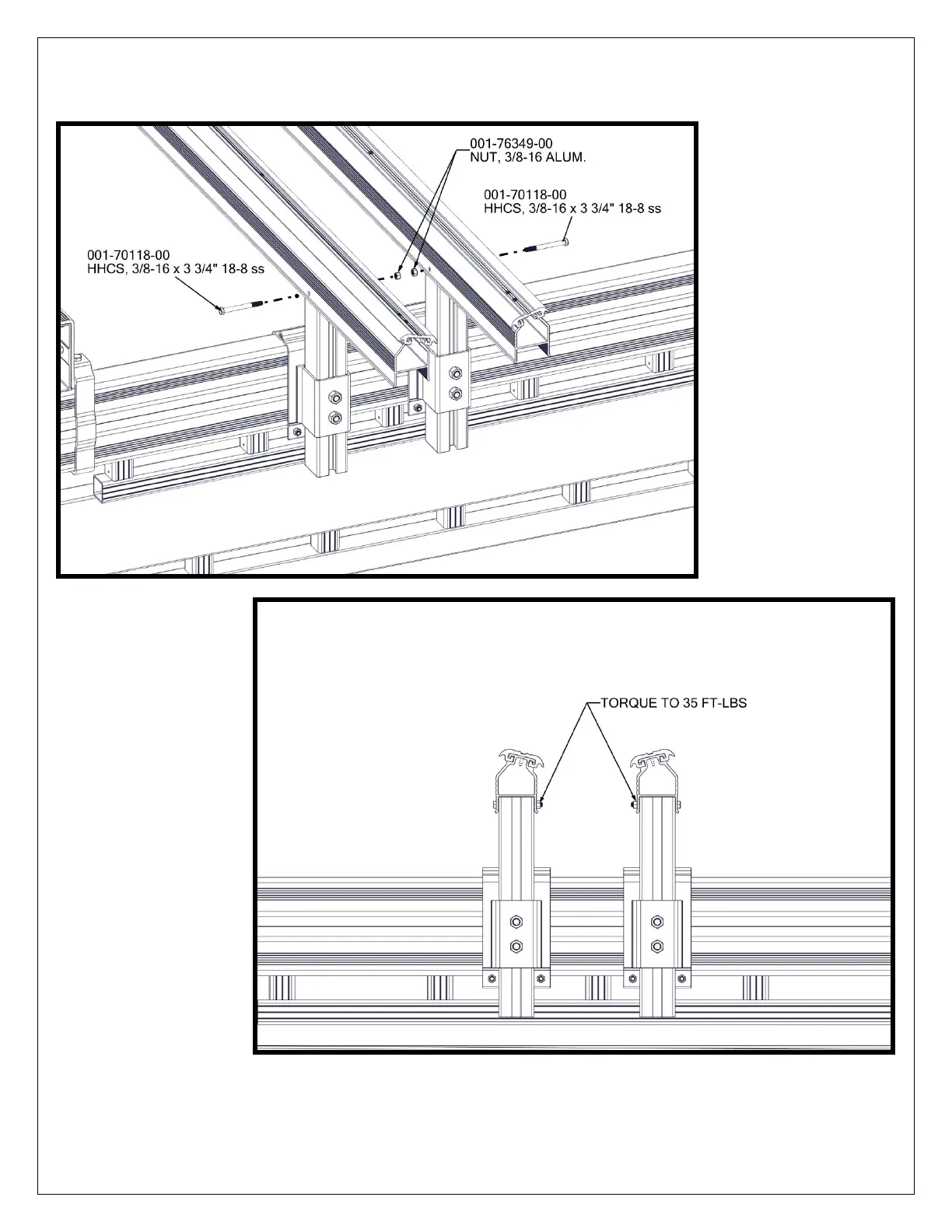

ATTACH USING (2) 3/8” X 3 3/4” BOLTS AND (2) 3/8” NUTS PER UPRIGHT (FIGURE 2.3). TORQUE TO 35
FT-LBS (FIGURE 2.4).
FIGURE 2.3
FIGURE 2.4
4X
4X
