SHEET 4 OF 12
STEP 1

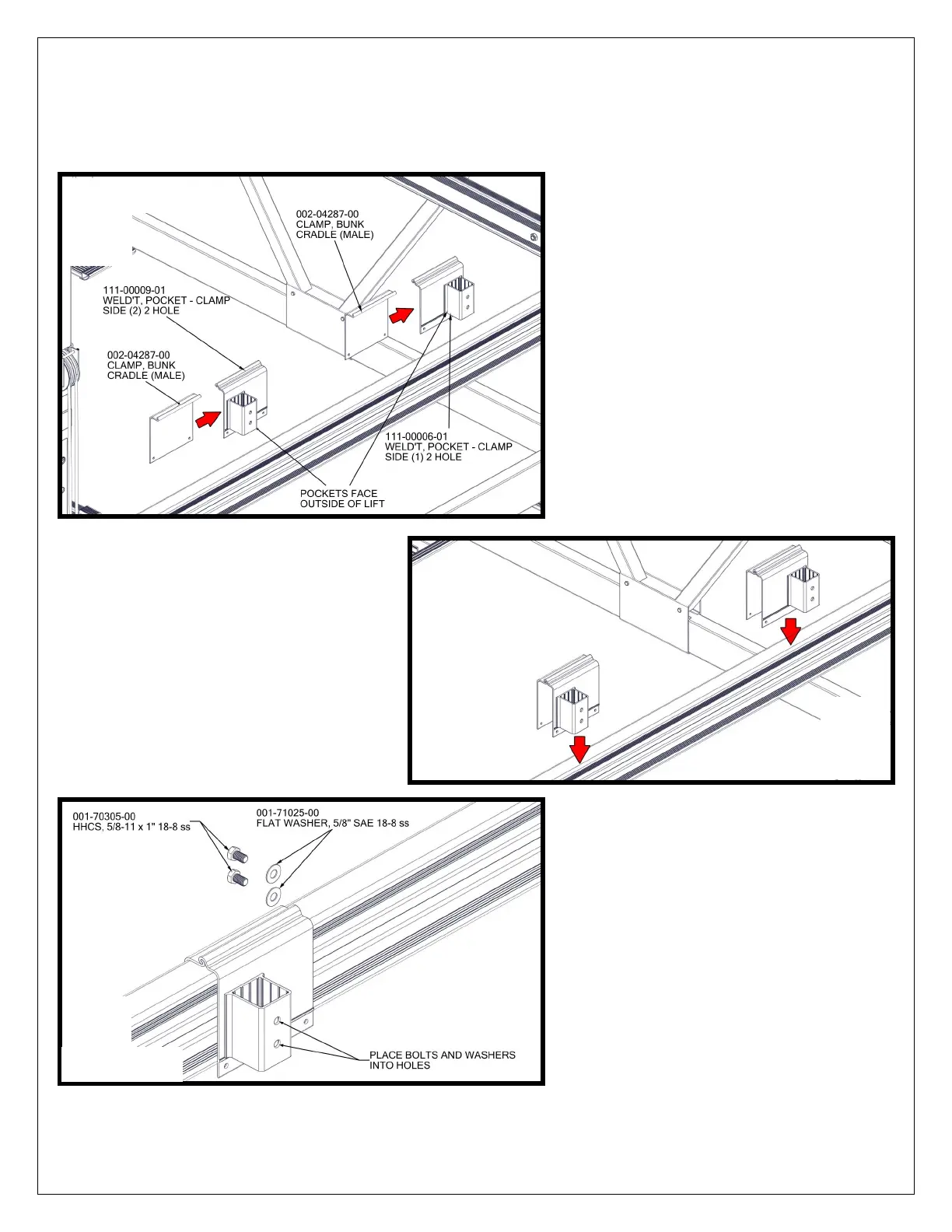

SLIDE CLAMPS TOGETHER (FIGURE 1.1) AND SLIDE PAIRS OVER CRADLE BEAM (FIGURE 1.2). PLACE (2)
5/8” X 1” BOLTS AND (2) ½” WASHERS INTO EACH CLAMP WELDMENT POCKET (FIGURE 1.3).
4X
FIGURE 1.1
FIGURE 1.2
4X
FIGURE 1.3
4X
