Floe VSD6000 - Page 5

SHEET 5 OF 12

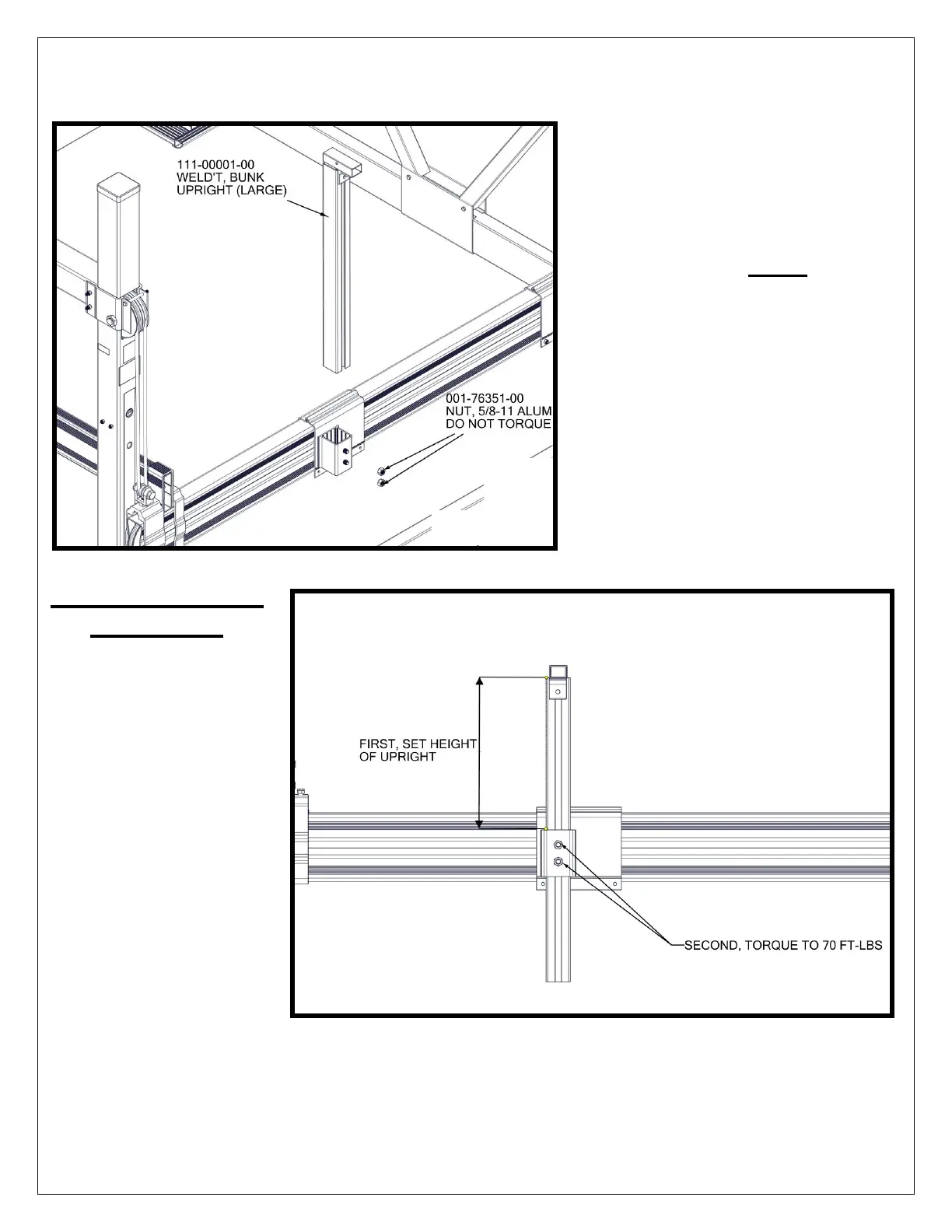

INSERT UPRIGHT TUBES INTO CLAMP WELDMENTS AND ATTACH USING (2) 5/8” NUTS, HAND TIGHT
ONLY (FIGURE 1.4). ADJUST HEIGHT AND TORQUE TO 70 FT-LBS (FIGURE 1.5).
4X
FIGURE 1.4
4X
FIGURE 1.5
NOTE:
UPRIGHTS MAY HAVE
TO BE CUT TO ALLOW
FULL TRAVEL OF
CRADLE ONCE FINAL
PLACEMENT IS
ESTABLISHED.
BUNK/CRADLE PAD
DISCLAIMER
DUE TO THE LARGE
VARIETY OF BOAT
HULL DESIGNS, WE
STRONGLY
RECOMMEND THAT
YOU CONSULT WITH
YOUR BOAT’S
MANUFACTURER TO
ENSURE THAT YOUR
ARE SUPPORTING
YOUR BOAT
PROPERLY TO AVOID
ANY POTENTIAL
DAMAGE.
