SHEET 6 OF 12
STEP 2

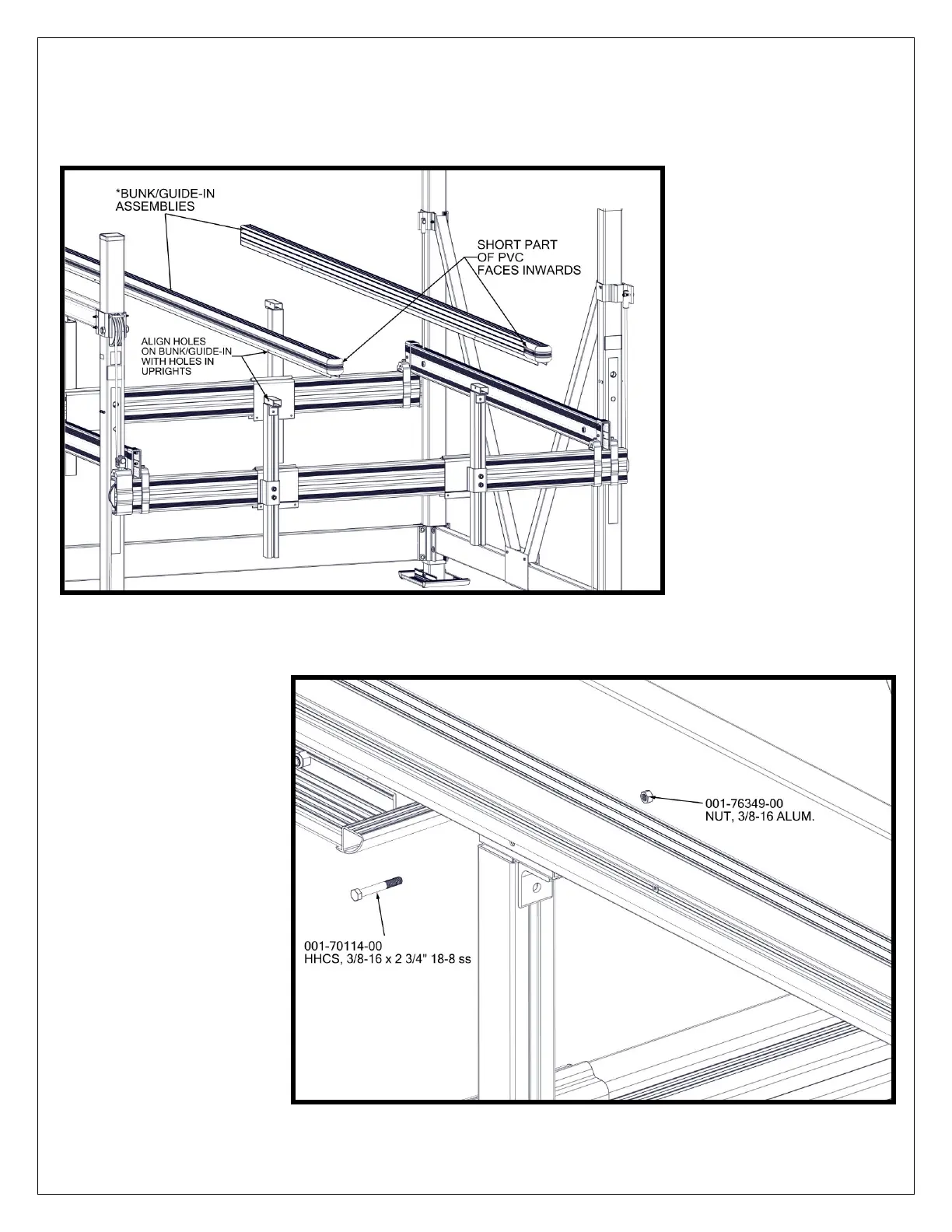

PLACE BUNKS ONTO UPRIGHTS (FIGURE 2.1) AND ATTACH USING (2) 3/8” X 3 3/4” BOLTS AND (2) 3/8”
NUTS PER UPRIGHT (FIGURE 2.2).
FIGURE 2.1
4X
FIGURE 2.2
*111
-
00491
-
00 &
111-00492-00
INCLUDED WITH
511-02484-00
(22’ PONTOON
BUNKS/GUIDE INS)
*111-00370-00 &
111-00371-00
INCLUDED WITH
511-02485-00
(16’ PONTOON
BUNKS/GUIDE-INS)
*111-00385-00 &
111-00386-00
INCLUDED WITH
511-02486-00
(18’ PONTOON
BUNKS/GUIDE-INS)
