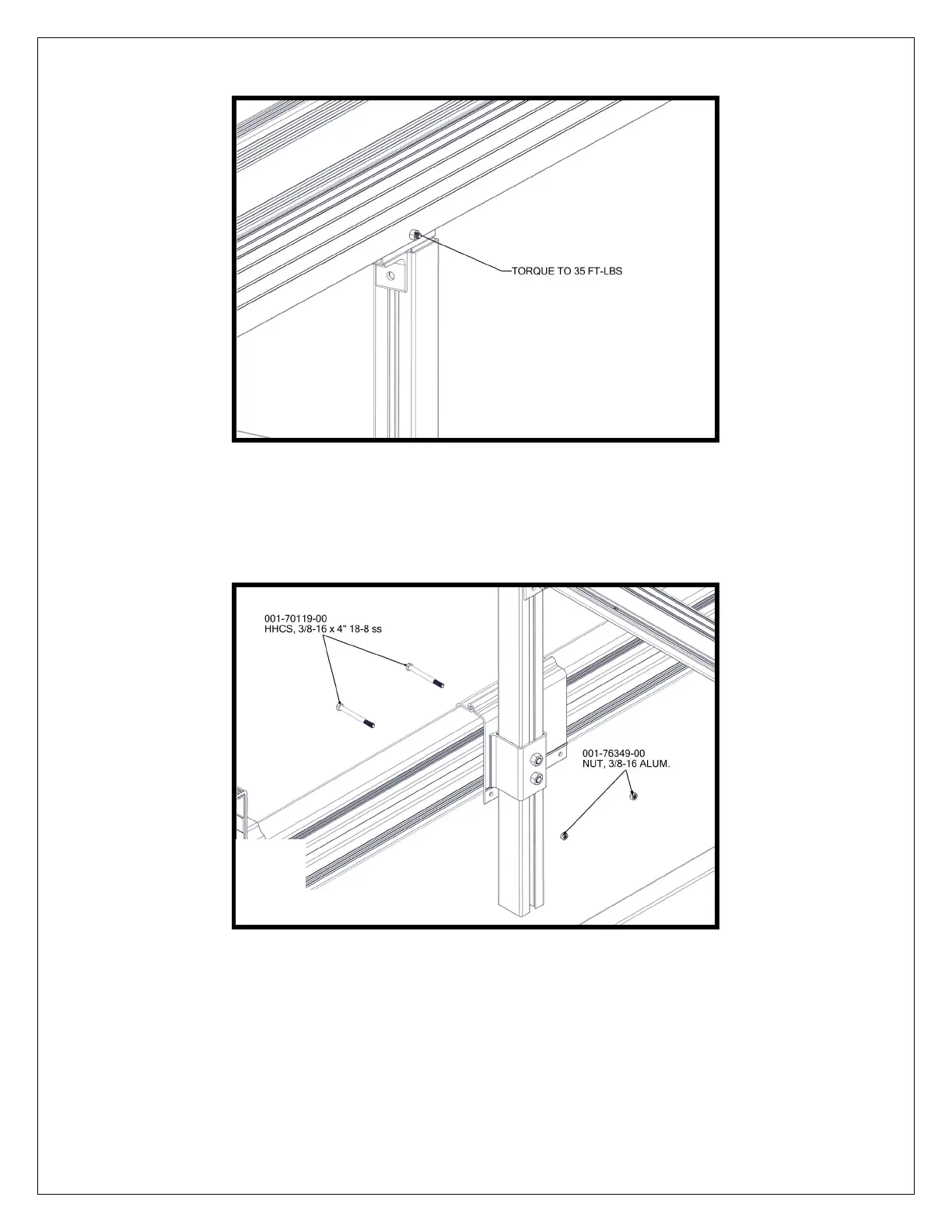

TORQUE NUTS TO 35 FT-LBS (FIGURE 2.3).
ATTACH CLAMP WELDMENT TO CRADLE BEAM USING (2) 3/8” X 4” BOLTS AND (2) 3/8” NUTS (FIGURE
2.4).
4X
FIGURE 2.3
FIGURE 2.4
4X
