Flotec FPI800DCC - Repair Parts

Repair Parts 12
For parts or assistance, call Flotec Customer Service at 1-800-365-6832
DELAVAN, WI 53115
U27-470
BLACK TERMINAL NEGATIVE (-)
RED TERMINAL POSITIVE (+)
COMPLETE
CHARGE
FAULT

4 STAGE LEAD-ACID
BATTERY CHARGER
5
7
7A
7B
3
4
2
1
BA
TTERY CO
NN
ECTION
CHARGER C
ONN
ECTION
FLO
AT
SW
ITCH
CONNE
CTIO
N
REPLACE FUSE WITH SAME 25 AMP -
36V TYPE AND RATING ONLY
PUMP FU
SE &
CON
NE
CTION
DISABLE ENABLE
AUDIBLE ALARM
D
ISAB
LE WHEN LIT
+
+
+
–
–
–
6
8
9
10
14
3465 0799
11
12
A
L
A
R
M
R
E
S
E
T
S
O
F
T
R
E
S
E
T
A
U
D
IB
L
E
A
L
A
R
M
D
IS
A
B
LE
CHARGING - YELLOW
CHARGED - GREEN
LOW
BATTERY ALARM
A
U
D
IBL
E
A
L
A
R
M
S
ILE
N
C
E
PU
M
P R
U
N
A
LA
R
M
A.C.POW
ER ON
MICRO PROCESSOR CONTROLLED
5 STAGE BATTERY CHARGE/MAINTAINER
12 VOLT 8 AMP
A
LW
A
YS
R
EA
D
WA
RN
I
N
GS
I
N I
N
ST
R
UC
T
ION
M
A
NU
A
L B
E
FO
R
E
U
S
I
N
G
.
13
† Included in Fittings Package.
†† Includes 1-1/2 x 1-1/4 Reducer Bushings (2).
††† Included with Key No. 10.
§ Included with Key No. 13.
• Not illustrated.
* Purchase locally.

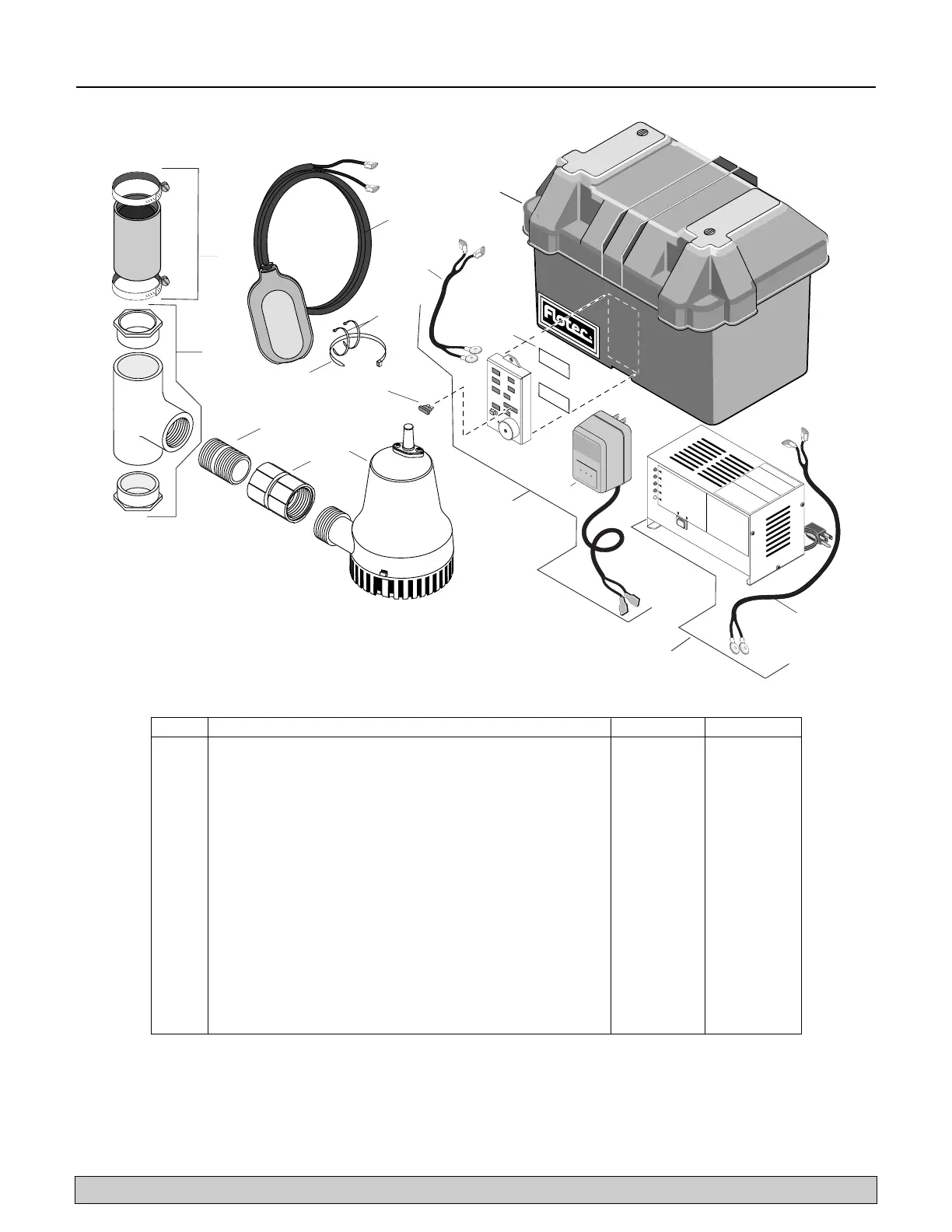

Key No. Part Description FP1800DCC FP2800DCC
1 Rubber Hose Coupling and Clamps U74-68 U74-68
2 PVC Tee 1-1/2 x 1-1/2 Slip x 1-1/4 FNPTW/1-1/4 (†)(††) U78-846P U78-846P
3 PVC Pipe Nipple, 1-1/4 NPT x Close (†) U37-66P U37-66P
4 Coupling/Check Valve Assembly, 1-1/4 FNPT x 1-1/4 FNPT (†) ZB902110 ZB902110
5 DC Backup Pump PS17-118 PS17-115
6 Replacement Fuse, - ATO 20 Amp, 12 Volt * *
7 Float Switch - 1/2HP, 8’, 16 Gauge PS117-120P PS117-120P
7A Small Cable Ties (2) * *
7B Large Cable Tie * *
8 Battery Case (Complete) PS17-100 PS17-100
9Two Face Tape, 1” x 2” (†)(2) PS97-5 –
10 Charger Kit (FP1800DCC) (includes wires, junction box) PS217-112 –
11 Charger (FP1800DCC) (†††) PS117-112 –
12 Battery Lead (†††) PS117-114 –
13 Charger Kit (FP2800DCC) – PS217-119
14 Battery Leads (§) – PS17-155
• Fittings Package PS198-10 PS198-11
