FLOWROX PV 80 - 8 Appendixes; APPENDIX A: PV- Open Body Assembled

18
8 APPENDIXES

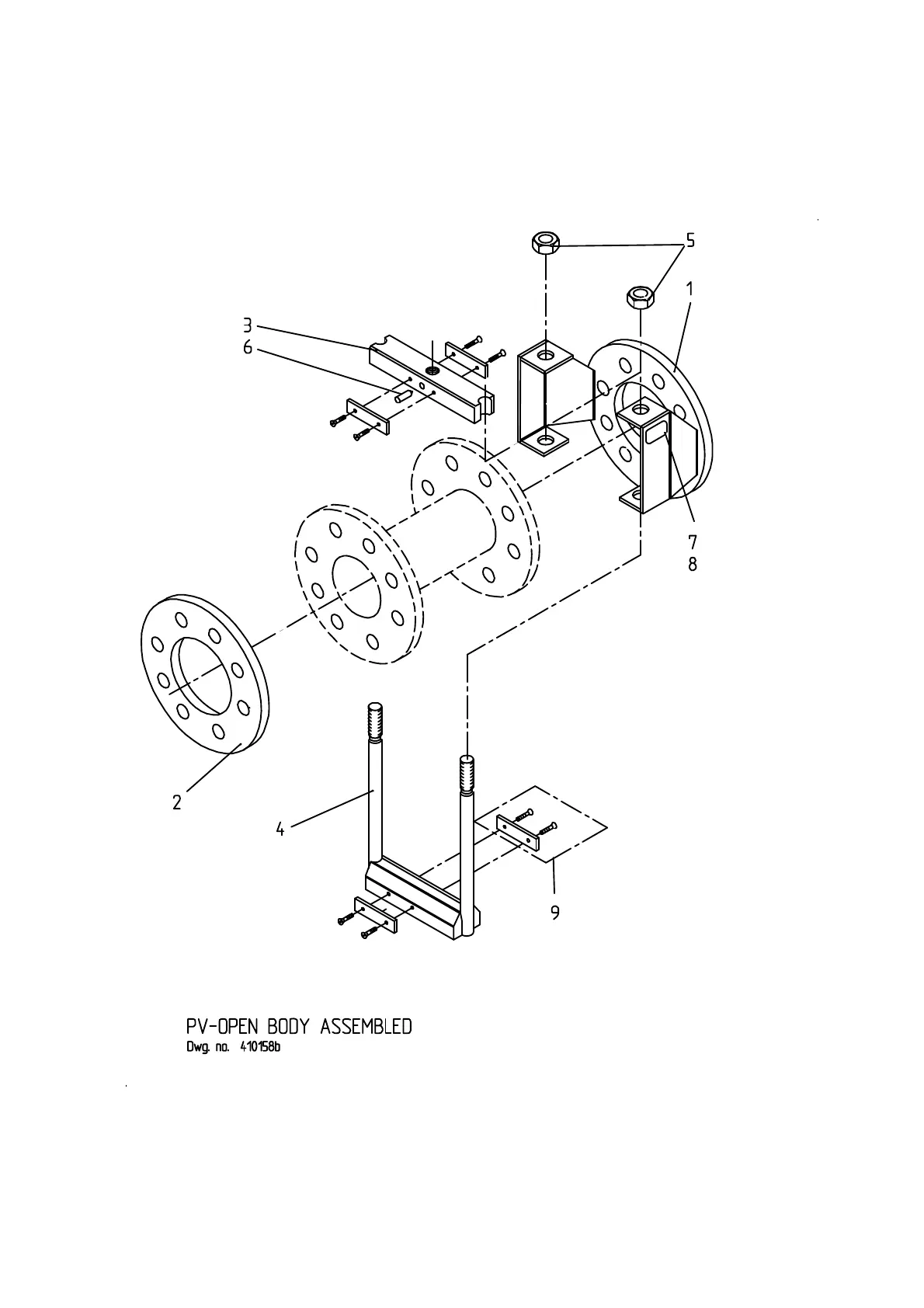

8.1 APPENDIX A: PV- Open Body Assembled
FLOWROX
1. Valve body 6. Allen screw
2. Flange 7. Valve plate
3. Upper pinch bar 8. Drive screw
4. Lower pinch bar 9. Fix. parts for opening tags
5. Hex. nut
