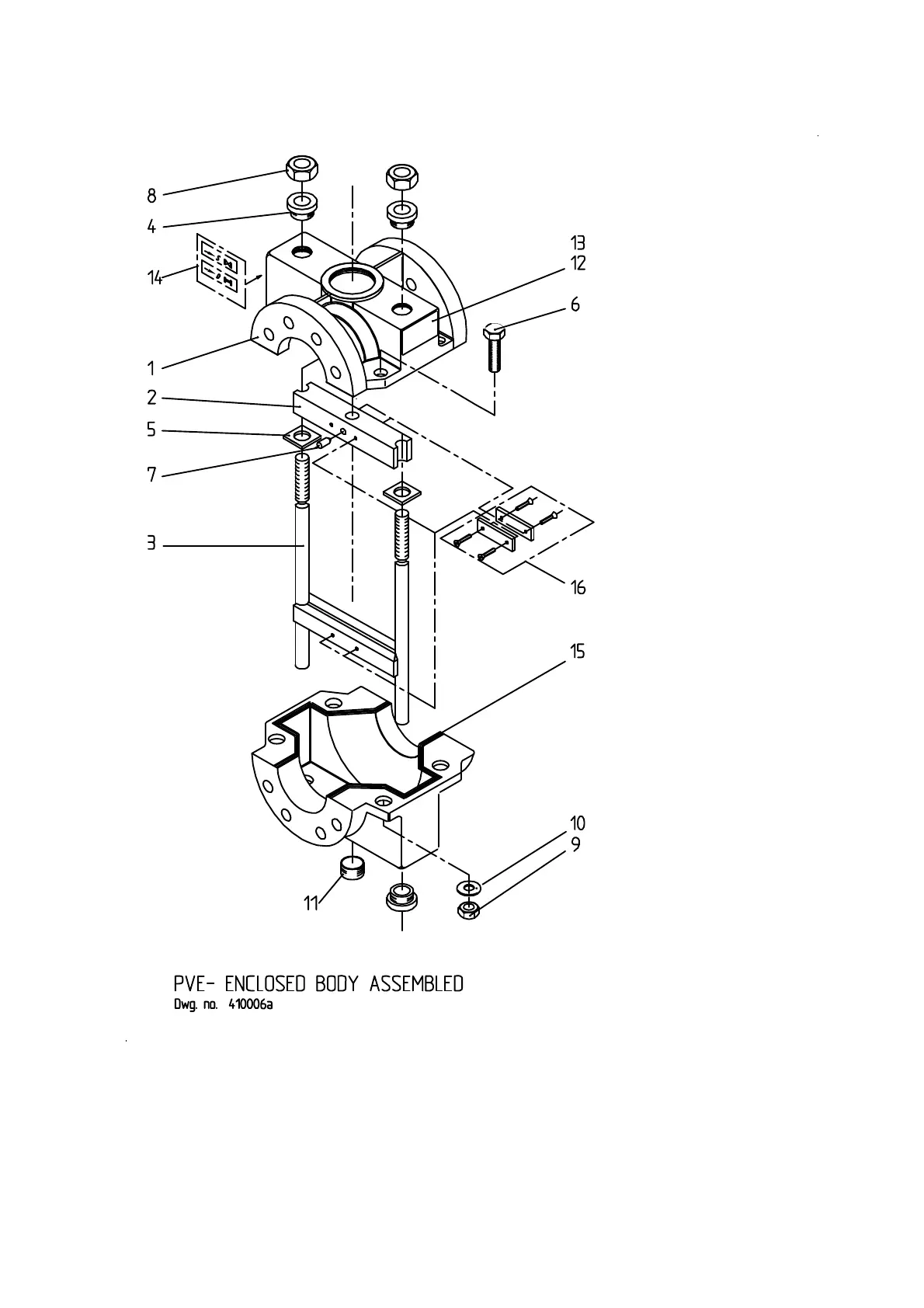

APPENDIX B: PVE-Enclosed Body Assembled
FLOWROX
1. Valve body
7. Allen screw
13. Drive screw
2. Upper pinch bar
8. Hex nut
14. Sticker open-closed
3. Lower pinch bar
9. Hex nut
15. Sealing
4. RCH-bushing
10. Washer
16. Fix. parts for opening tags
5. Guide
11. Plug
6. Hex screw
12. Valve plate
20
Table of Contents
Default Chapter
2
Table of Contents
2
1 General
3
General Safety Instructions for PV & PVE Valves
3
2 Introduction to Device
4
Intended Use
4
Construction of Device
4
Open Body Valve PV
5
Enclosed Body Valve PVE
5
Valve Function
6
3 Transportation, Storage and Lifting
7
Receiving
7
Storing
7
Lifting
7
4 Installation
8
Open Body Model (PV)
8
Enclosed Body Model (PVE)
9
Both Models (PV and PVE)
9
5 Operation
10
First Use
10
During Operation
10
6 Maintenance
11
Schedule
11
Changing the Valve Sleeve
11
Changing the Valve Sleeve in Open Model Valve (PV)
11
Changing Valve Sleeve with Enclosed Model Valve PVE
12
Adjusting the Valve
13
Troubleshooting
15
7 Technical Data
16
Model and Spare Part Codes
16
Valve Model Selection
16
Sleeve Model Selection
17
Sleeve Materials for Flowrox Valves
17
8 Appendixes
20
APPENDIX A: PV- Open Body Assembled
20
APPENDIX B: PVE-Enclosed Body Assembled
21
