Flowserve FlowAct Series User Manual

FlowAct Diaphragm Linear Actuator FCD VLENIMFACTA4 10/16
69
flowserve.com
Item #
Part
WW EU
202 6.1 Diaphragm Casing (4x)
211 6.12 Stem
220 6.14 Disk (2x)
225 6.16 Diaphragm (2x)
227 6.15 Diaphragm Plate (2x)
228 6.13 Spacer Bushing (2x)
229 6.21 Actuator Spring
231 6.22 Distance Plate (2x)
253 6.8 Lower Guide Bushing
254 6.80 Plain Bearing (3x)
255 6.18 Thrust Washer (2x)
258 6.26 Vent Plug (2x)
272 6.17 O-Ring (2x)
273 6.11 Scraper Ring (2x)
275 6.10 O-Ring (3x)
276 6.9 O-Ring (4x)
279 6.46 O-Ring (24x)
326 6.23 Spring Adjusting Plate (2x)
334 6.45 Hexagon Bolt (24x)
335 6.3.1 Hexagon Bolt - short (40x)
336 6.3.2 Hexagon Bolt - long (8x)
337 6.5 Plain Washer (48x)
1)
339 6.25 Protection Sleeve (8x)
348 6.20 Stem
349 6.19 Lock Washer (2x)
351 6.4 Hexagon Nut (48x)
373 6.82 Intermediate Guide Bushing
374 6.47 Distance Bushing (2x)
380 6.81 Stem Extension
389 6.83 Upper Guide Bushing
1)
Alternatively, hex head assembled screws with captive flat washers are used for this application.
275
231
326
229
275
273
202
373
254
258
276
279
334
211
255
225
272
220
227
228
374
349
380
202
253
254
276
279
334
339
351
374
348
334
279
276
202
202
389
254
276
279
334
258
337
335
336

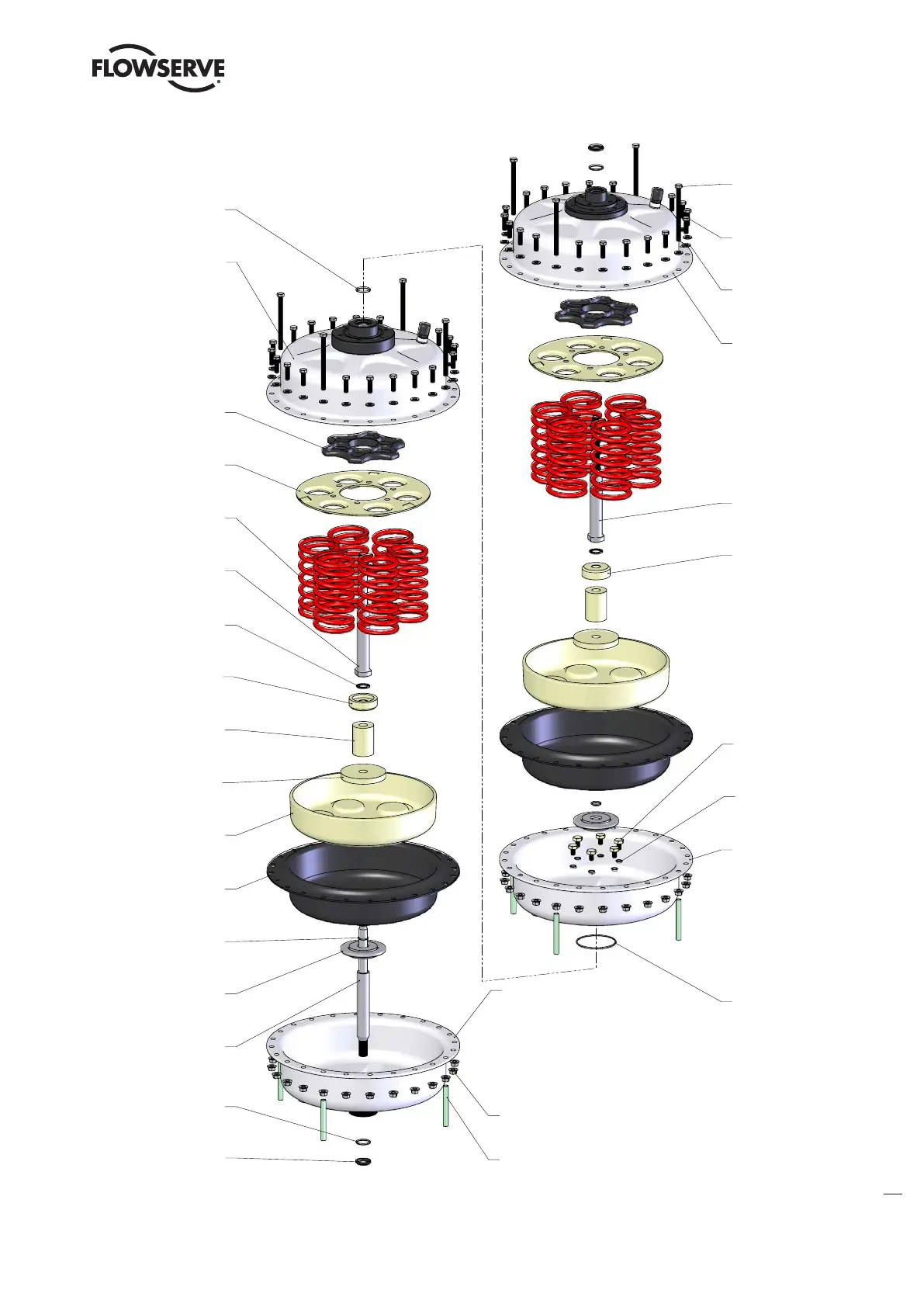

Table 38: Actuator parts Figure 35: Actuator parts
