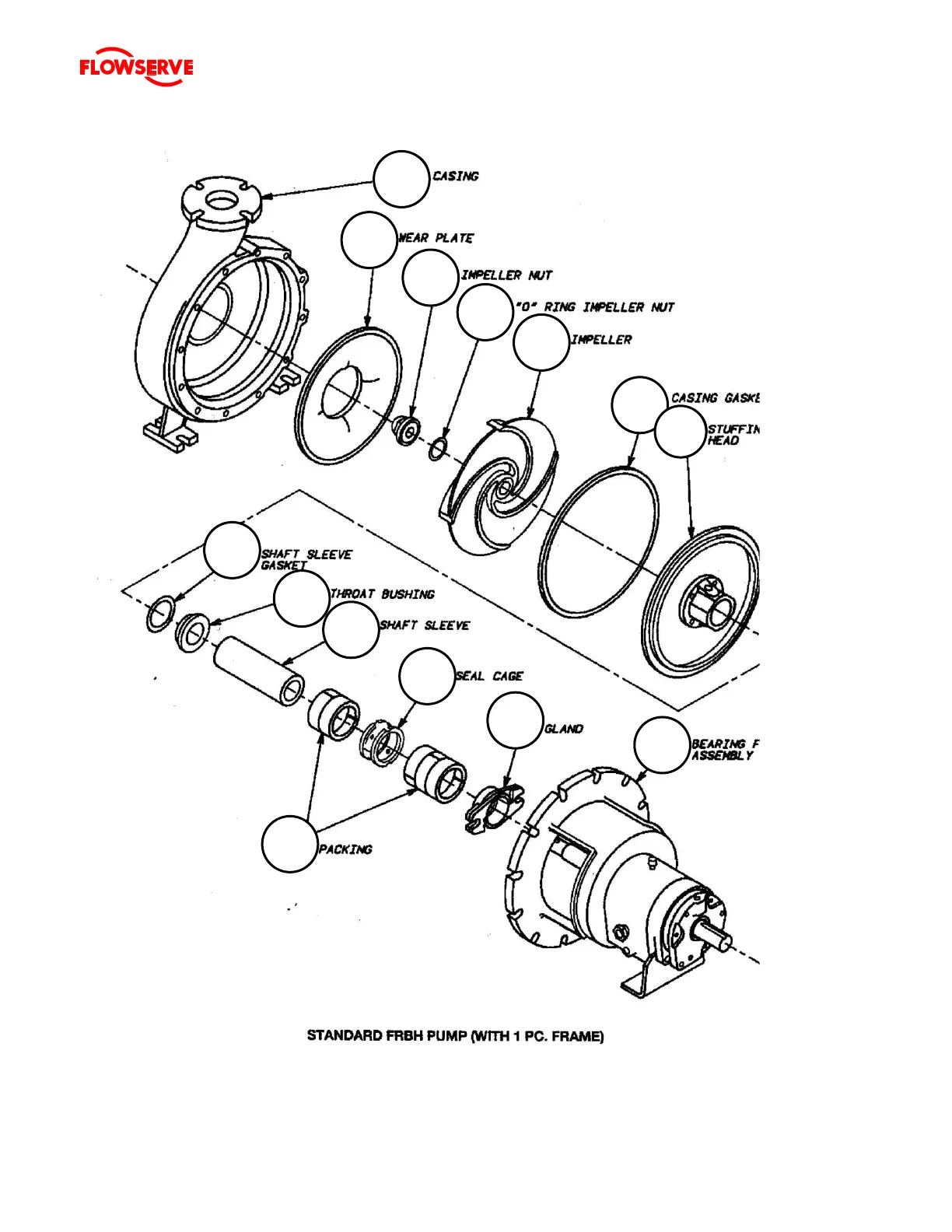

8.5 FRBH Frames 1-4- liquid end Exploded View
Where the Expeller is utilized see 8.4.1 for the parts list and exploded view.
1110
1915
2912
4610
2200
4590
4100
4590
4132
2445
4121
4130
1110
1915
2912
4610
2200
4590
4100
4590
4132
2445
4134
4121
3130
4130
