APPENDIX A - DRAWINGS FLUID COMPONENTS INTL

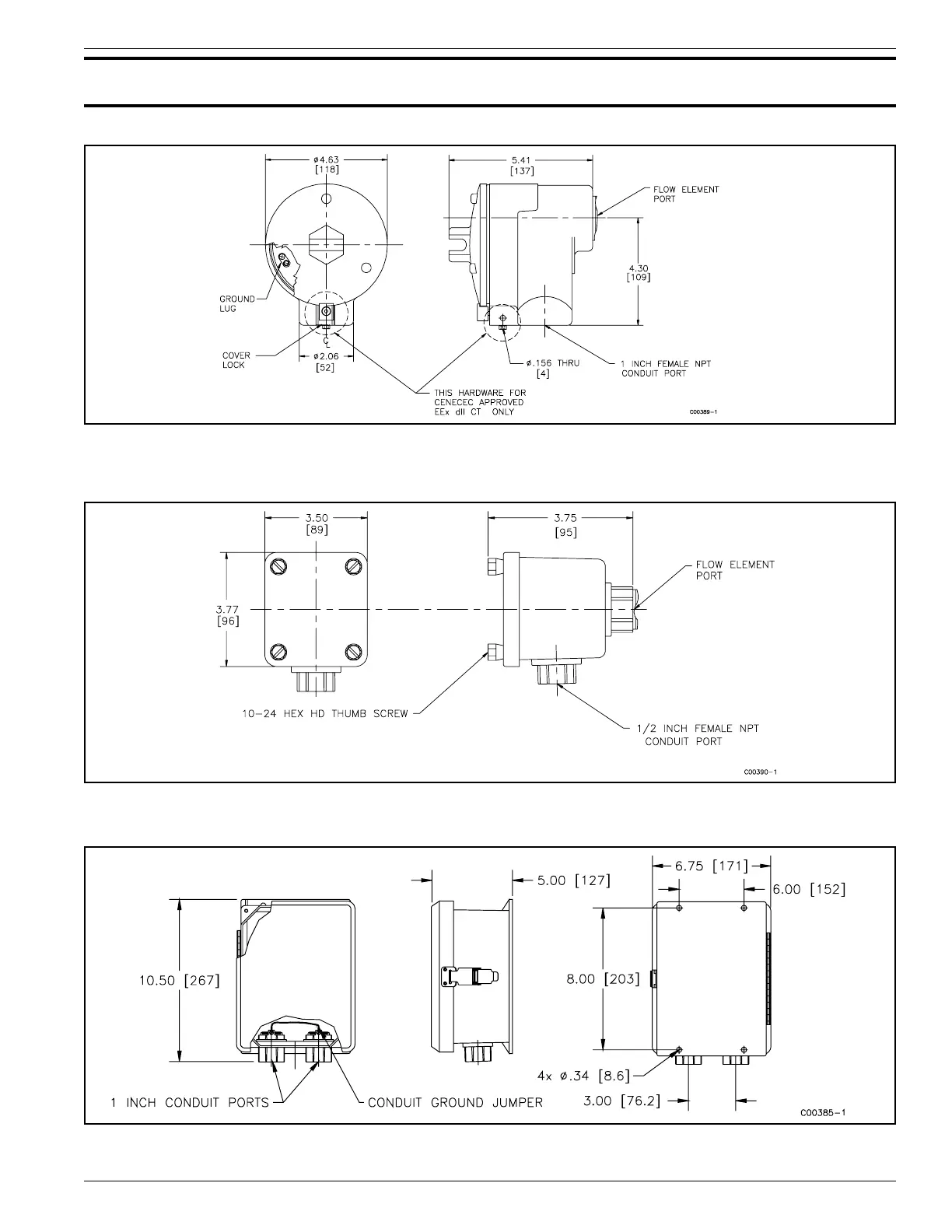

Appendix A. Drawings
Inch [mm]
Figure A-1. Local Enclosure, NEMA Type 4X and Hazardous Location (Aluminum Enclosure Shown)
Figure A-2. Local Enclosure NEMA Type 4X (Fiberglass Shown)
Figure A-3. Remote Enclosure NEMA Type 4X
Doc. No. 06EN003246 Rev. B A - 1 FLTÔ Series FlexSwitchÔ
