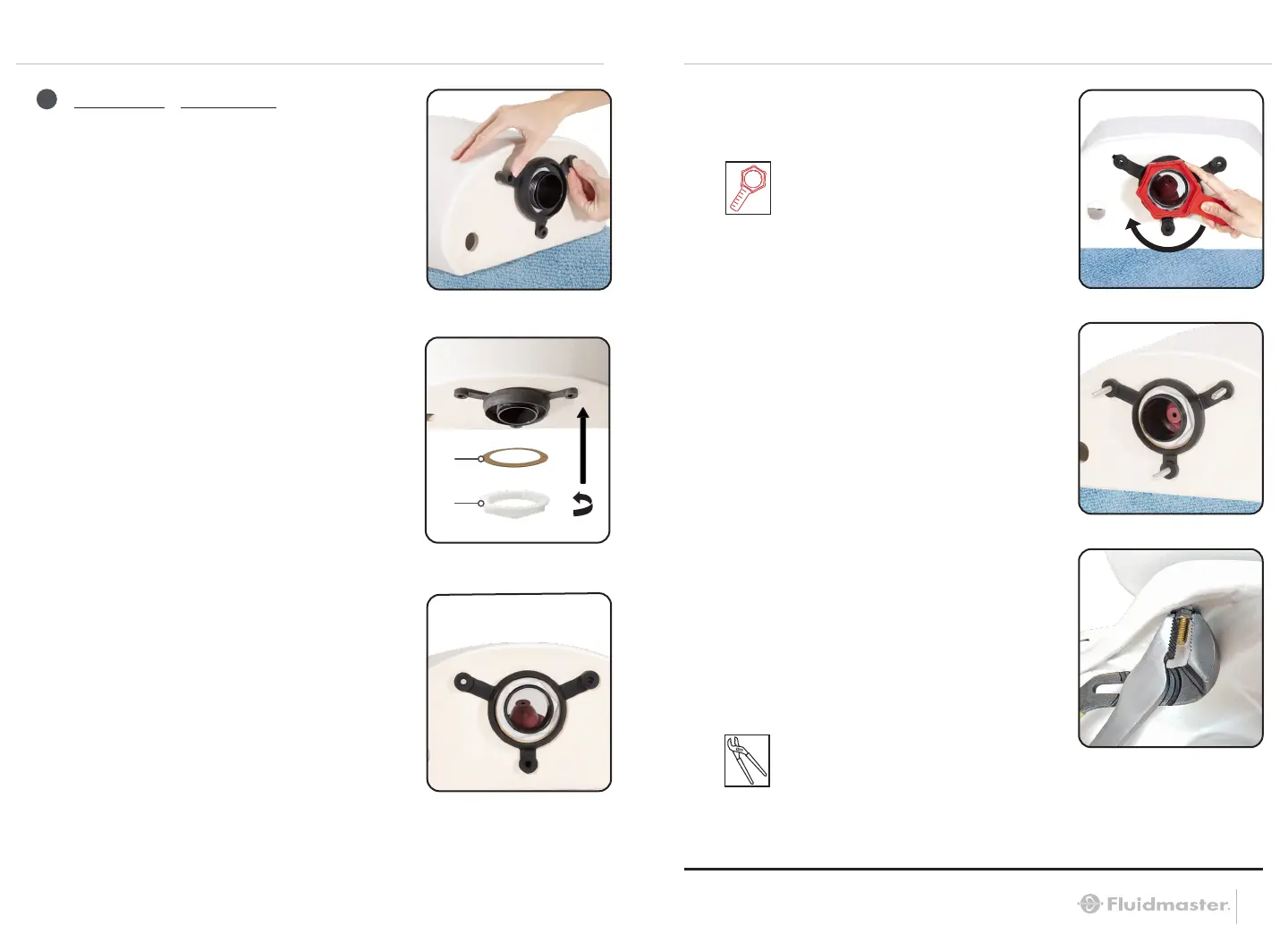

STEP 4: GASKET FOR KOHLER
®
TOILETS
11
STEP 4: GASKET FOR KOHLER
®
TOILETS (CONT.)
Red Wrench
A: Position black gasket onto bot-
tom of tank and press plugs into
holes. Ensure tank gasket is flush
with bottom of toilet tank.
B: INSTALL LOCKNUT
Position friction washer (b)
and locknut (c) onto bottom of
flush valve.
C: Hand-tighten locknut to secure
flush valve.
D: Use the red wrench to tighten the
locknut 1/2 turn beyond hand-
tight. Do not overtighten.
E: SECURE TANK TO BOWL.
From inside tank, insert a bolt
through each of the three holes in
tank. Orient tank so that bolts line
up with the holes in toilet bowl and
lower tank onto bowl.
F: Slide one metal washer onto each
bolt, then loosely tighten hex nuts.
Alternately hand-tighten hex nuts
onto each one of the bolts evenly,
then use pliers to tighten hex nuts
until tank is snug and it does not
rock. Do not overtighten. Proceed
to Step 6.
KOHLER
®
TOILETS:
NOTE: See Step 5B for
reference. Adjust tank bolts to
ensure that tank is level, front
to back and side to side. See
Troubleshooting on p.17
Large Adjustable
Pliers
b
c
