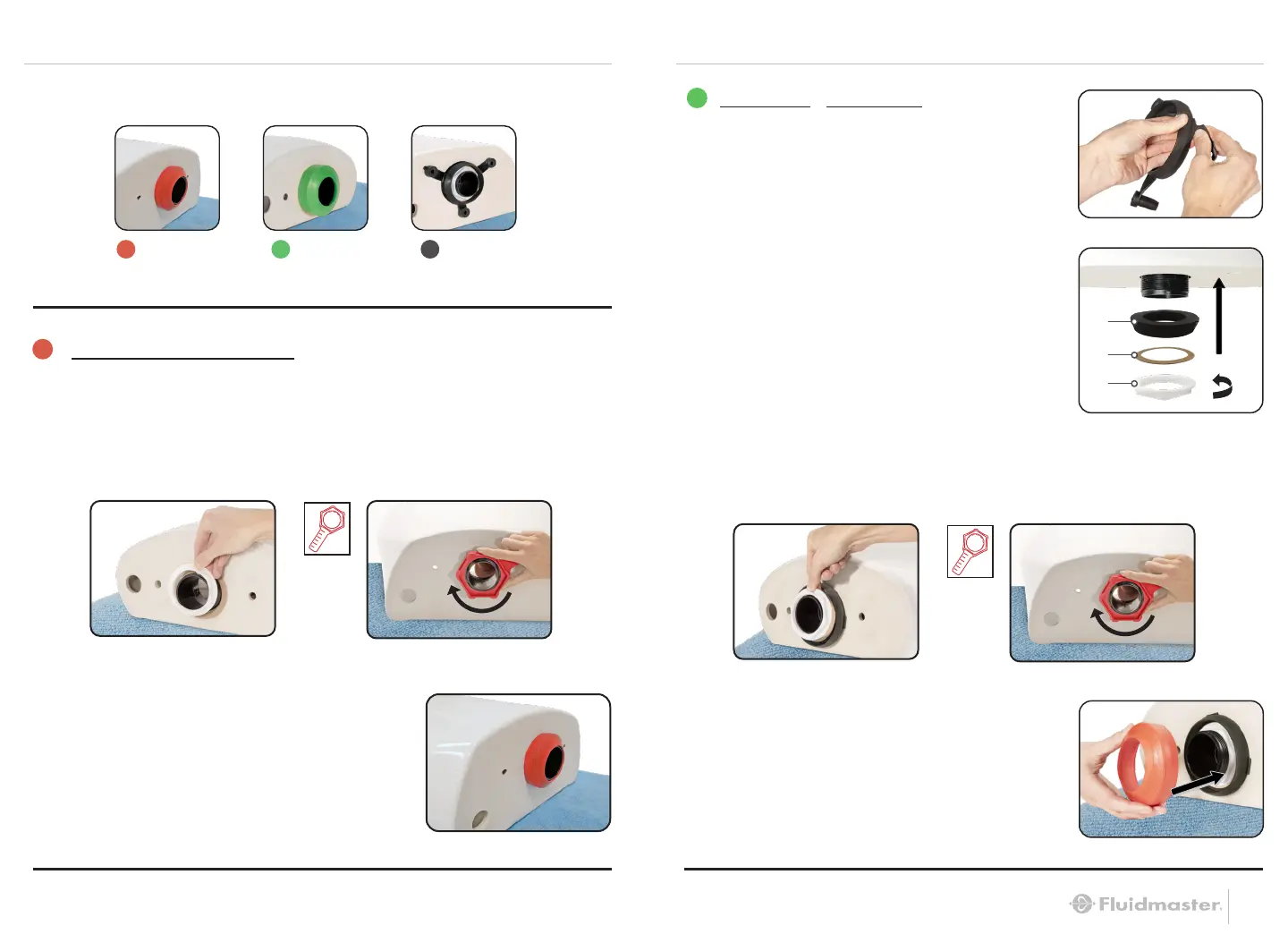

STEP 4: INSTALL TANK-TO-BOWL GASKET STEP 4: GASKET FOR GERBER
®
TOILETS
A: Tear the three perforated tabs off
the black gasket.
NOTE:
For Gerber
®
toilets, see p.9.
For Kohler
®
toilets, see p.10.
B: Apply red tank-to-bowl gasket to
bottom of flush valve locknut, fully
covering locknut. Proceed to Step 5.
C: Hand-tighten the locknut to secure the flush valve. Use the
red wrench to tighten the locknut 1/2 turn beyond hand-
tight. Do not overtighten.
D: Place red gasket onto bottom of the
valve, covering the locknut and nesting
inside black gasket. Proceed to Step 5.
B: INSTALL LOCKNUT
Place the black gasket (a) onto the
bottom of the valve, followed by the
friction washer (b) and locknut (c).
a
b
c
GERBER
®
TOILETS:
Red Wrench
Red Wrench
ALL OTHER TOILETS:
A: INSTALL LOCKNUT
Holding flush valve in place, place friction washer onto
bottom of flush valve then hand-tighten locknut to secure.
Use red wrench to go ½ turn beyond hand-tight.
Do not overtighten.
A: IDENTIFY YOUR GASKET
All Other Gerber
®
Kohler
®
(Below) (p.9) (p.10)
