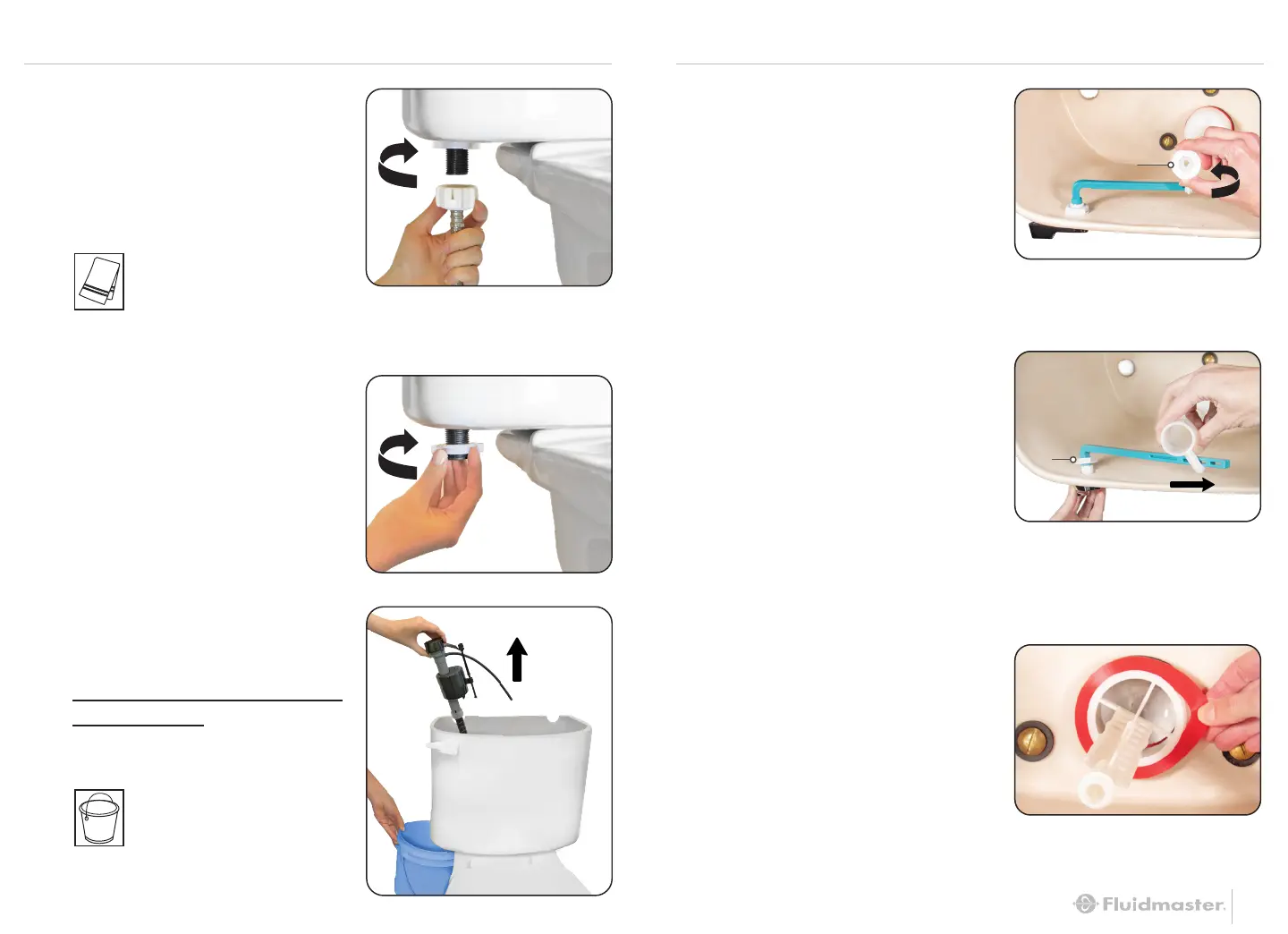

STEP 2: REMOVE OLD FILL VALVE
5
A: REMOVE CONNECTOR
Remove water supply
connector from bottom
of fill valve by twisting
connector nut to the left
(clockwise).
B: REMOVE OLD LOCKNUT
Below tank, twist locknut
to the left (clockwise) to
remove from fill valve.
C: REMOVE OLD FILL VALVE
Including refill tube and
shank washer.
Drain any excess water
into bucket by removing
fill valve from tank.
(Pull fill valve up)
Bucket
(Optional)
NOTE: Inspect water
supply connector.
Replace it if it is worn, or
you don’t know how old it is, to
prevent flooding and property damage.
NOTE: Loosen locknut (a)
on lever. If lever has chain,
detach now.
Towel
(Optional)
STEP 3: REMOVE FLUSH VALVE
A: REMOVE STOP CAP (a)
FROM FLUSH VALVE
Twist left (counter-
clockwise) to remove.
B: REMOVE FLUSH
VALVE TUBE
Pull up on flush valve
tube while sliding lever
arm from the flush
valve loop.
C: REMOVE RED SEAL
Pull from top groove
and discard.
a
PULL UP
SLIDE OFF
a
To Next Page
