Fluidmaster MANSFIELD User Manual

10 11

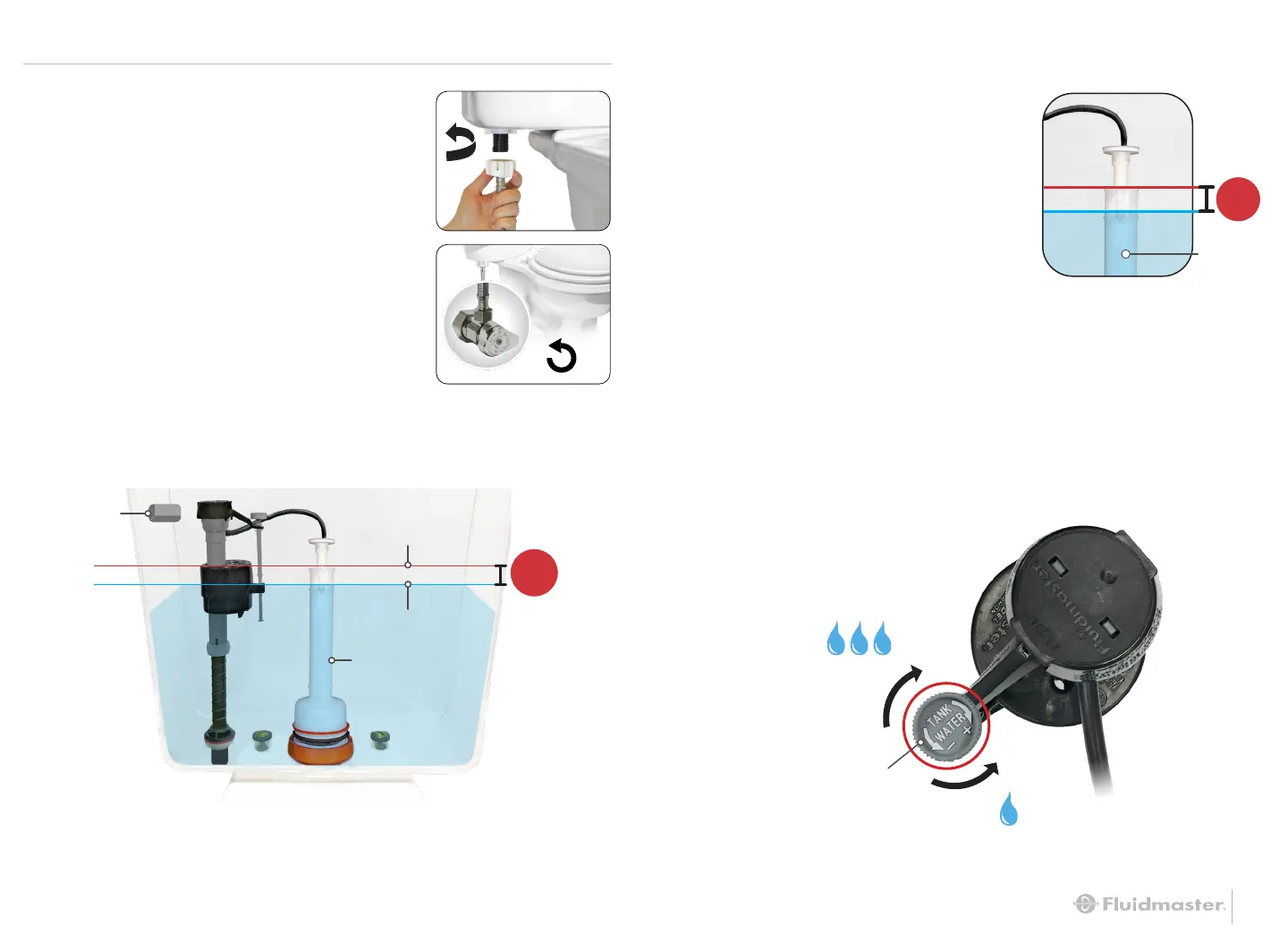

STEP 8: FINISHING STEPS
A: ATTACH WATER SUPPLY
CONNECTOR TO FILL VALVE
Twist to the right
(counterclockwise)
*Hand-tighten only.
DO NOT OVERTIGHTEN.
RIGHT
TURN
COUNTER-
CLOCKWISE
B: TURN ON WATER
Check for leaks.
C: WATER LEVEL
After the tank stops filling, water level should fill the tank to
roughly ½ inch below top of overflow pipe to ensure a
proper flush. (Does not need to be exact.)
Overtightening may crack the fill valve or tank causing flooding.
**
The top of the overflow pipe must be a minimum of 1" below tank lever hole.
Water Level
Overflow Pipe
Top of
Overflow Pipe
1/2"
**Lever Hole
*
STEP 9: FINE-TUNE TANK WATER LEVEL
A: FLUSH THE TOILET
TO CHECK THE TANK
WATER LEVEL
After the water stops filling the
tank, the water level should be
roughly ½ inch below the top
of overflow pipe to ensure a
proper flush.
B: WATER LEVEL IS TOO LOW
Turn the tank water level adjustment screw clockwise to
raise the float. Flush to reset water level.
WATER LEVEL IS TOO HIGH
Turn the water level adjustment screw counterclockwise
to lower the float. Flush to reset water level.
1/2"
Overflow
Pipe
See Step 5C for Full Tank view
Tank Water Level
Adjustment Screw
+
–
