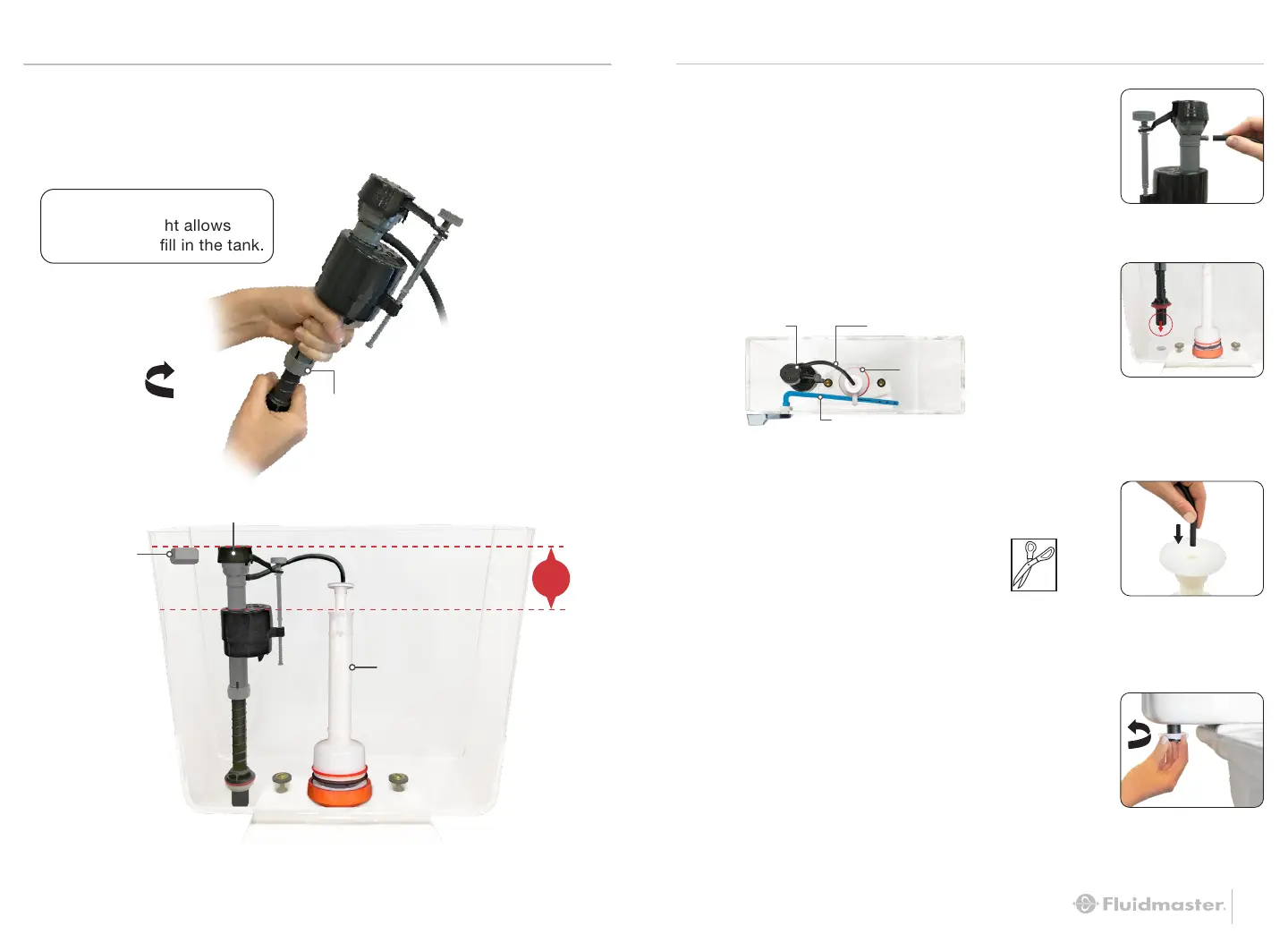

STEP 6: ADJUST HEIGHT OF NEW FILL VALVE
A: TWIST FILL VALVE TO ADJUST HEIGHT
Top of fill valve cap should measure roughly 3"
above top of overflow pipe when installed.
NOTE:
Increasing height allows
more water to fill in the tank.
HOLD
TWIST
LEFT
Do Not Move Lock Ring
*
The top of the overflow pipe must be a minimum of 1" below tank lever hole.
STEP 7: INSTALL NEW FILL VALVE
A: PUSH REFILL TUBE ONTO FILL
VALVE REFILL PORT
D: INSTALL LOCKNUT
Screw locknut to the right
(counterclockwise) onto fill valve shank
(below tank).
**Hand-tighten only. DO NOT OVERTIGHTEN.
B: INSERT FILL VALVE
Position refill tube to face flush valve
making sure fill valve parts do not
interfere with lever arm*.
TOP
DOWN
VIEW
Refill Tube
Lever Arm
Flush
Valve
Fill Valve
RIGHT
*
Make sure the float cup does not touch the tank walls or tank lever and flush valve.
* *
Overtightening may crack the fill valve or tank causing flooding.
C: ATTACH REFILL CLIP TO
OVERFLOW PIPE
Note: If refill tube is too long to
fit inside tank with lid closed,
remove refill tube from fill valve
refill port, cut tube and
reattach to port.
Scissors
(Optional)
TOP OF FILL VALVE CAP
TOP OF OVERFLOW PIPE
Fill Valve Cap
Overflow Pipe
*Lever Hole
3"
