13

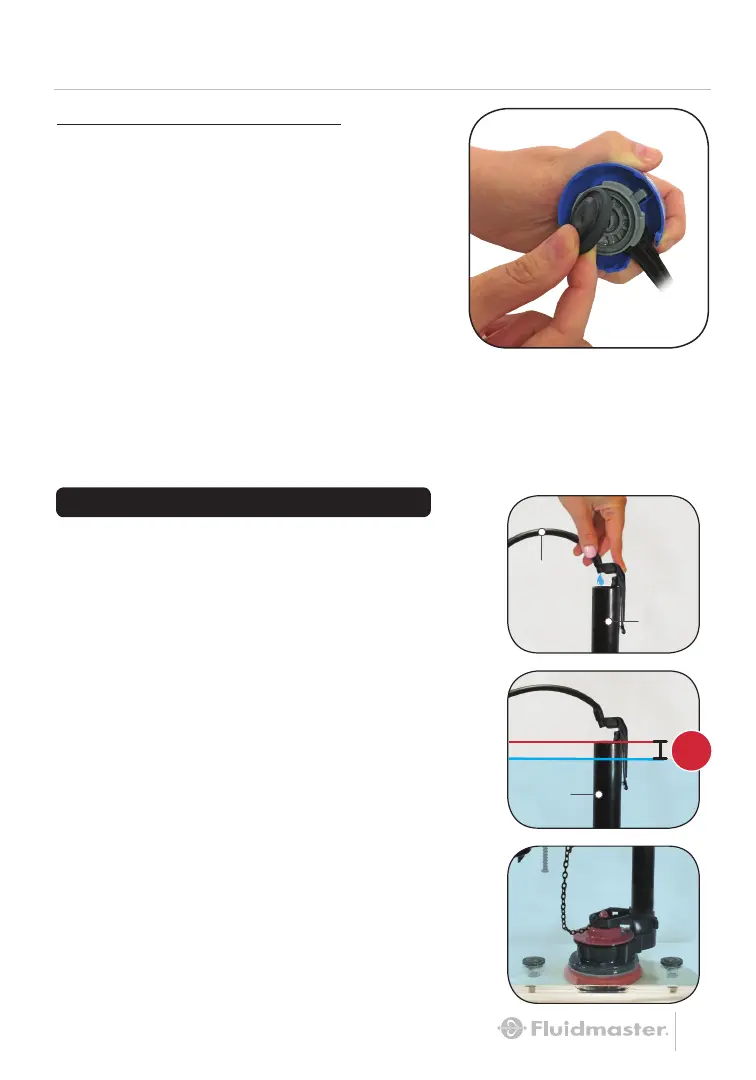

REPLACE FILL VALVE SEAL
• Place cap assembly on top of gray
valve body by aligning cap arm and
adjustment rod next to refill tube.
• Press down on top cap while
rotating top & arm clockwise to
locked position.
A: Remove cap (see page 12).
B: Replace seal with a
*genuine
Fluidmaster 242 Seal.
C: Replace valve cap.
*
Always use genuine Fluidmaster parts when installing or repairing. Fluidmaster will not be
responsible or liable for use of non-Fluidmaster parts during installation or repair.
A: WATER FROM REFILL TUBE MUST
FLOW THROUGH OVERFLOW PIPE
Make sure the refill tube is supplying
water down overflow pipe. (Metal side
out for refill clip)
B: WATER LEVEL IN TANK MAY BE
TOO LOW
1/2” below top of overflow pipe is
recommended (see page 8).
C: FLAPPER MAY BE CLOSING
TOO SOON
Give flapper chain approximately
1/2" of slack.
WATER LEVEL IN BOWL IS TOO LOW
Overflow
Pipe
Refill Tube
1/2"
Overflow
Pipe
To Next Page
