fluidra 66178 - Settings and Functionality; Instrument Display

0000137242 Rev. 7.1 8
3.0 SETTINGS AND FUNCTIONALITY
3.1 INSTRUMENT DISPLAY
3.1.1 STANDARD VERSION(DISPLAY 4 X 20 ROWS)

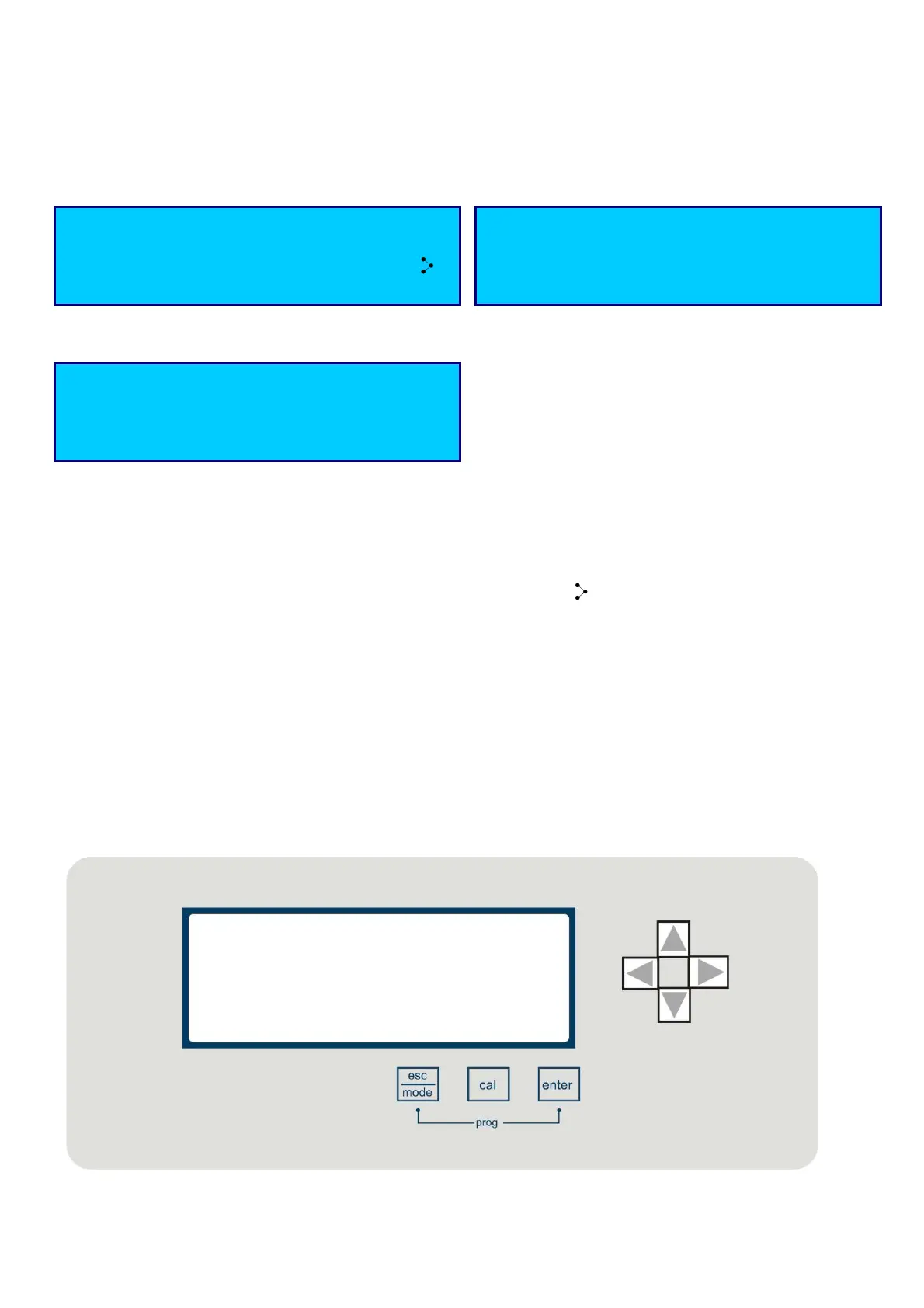

The graphic display version is characterized by the following graphic screens and texts
A B
C
The right/left keys can be used to select display modes A and B
Note: Any unavailable chemical measurements will not be displayed.
Mode A
Line 1 = Time or relais status RT (relais duration) is active; system water flow status
Line 2 = pH measurement display; Temperature measurement display.
Line 3 = Chlorine display; Network connection through RS485 serial port ( symbol)
Line 4 = ORP (Redox) display; Hold signal or OFA alarm flashing display, Available Alarms list display.
Mode B
Line 1 = pH dosing pump status, pH measurement display, Hold signal or OFA alarm flashing display.
Line 2 = Chlorine dosing pump status, Chlorine measurement display
Line 3 = ORP (Redox) dosing pump status, ORP (Redox) measurement display
Line 4 = Temperature relay status,Temperature measurement display; Available Alarms list display.
Mode C
Line 1 = Flow Meter instantaneously measure value
Line 2 = Permanent Totalizer Value
Line 3 = Resettable Totalizer Value
Line 4 = Date of last Reset of Resettable Totalizer; Available Alarms list display.
12:30 FLOW ON
pH 7.20 pH Tm 25.0°C
CL 1.50 ppm
ORP 750 mV Hold A
P ON pH 7.40 pH Hold
P ON CL 0.80 ppm
P OFF ORP 700 mV
R ON T 25.0°C A
Flow 150.0L/S
TP 123456789L
TR 12345L
02/03/2015
A
