Fluidwell E018 Operation Manual

Page 29
FW-E115-P-M_v0203_03_EN.docx
4.3.2 MOUNTING
The display inside the enclosure can be installed in four positions:
0°; 90°; 180°; 270°, so the enclosure can be installed in four positions.
The enclosure can be installed on a wall by using the mounting plate (accessory) or pipe mounted
with the bracket and hose clamps (accessory).

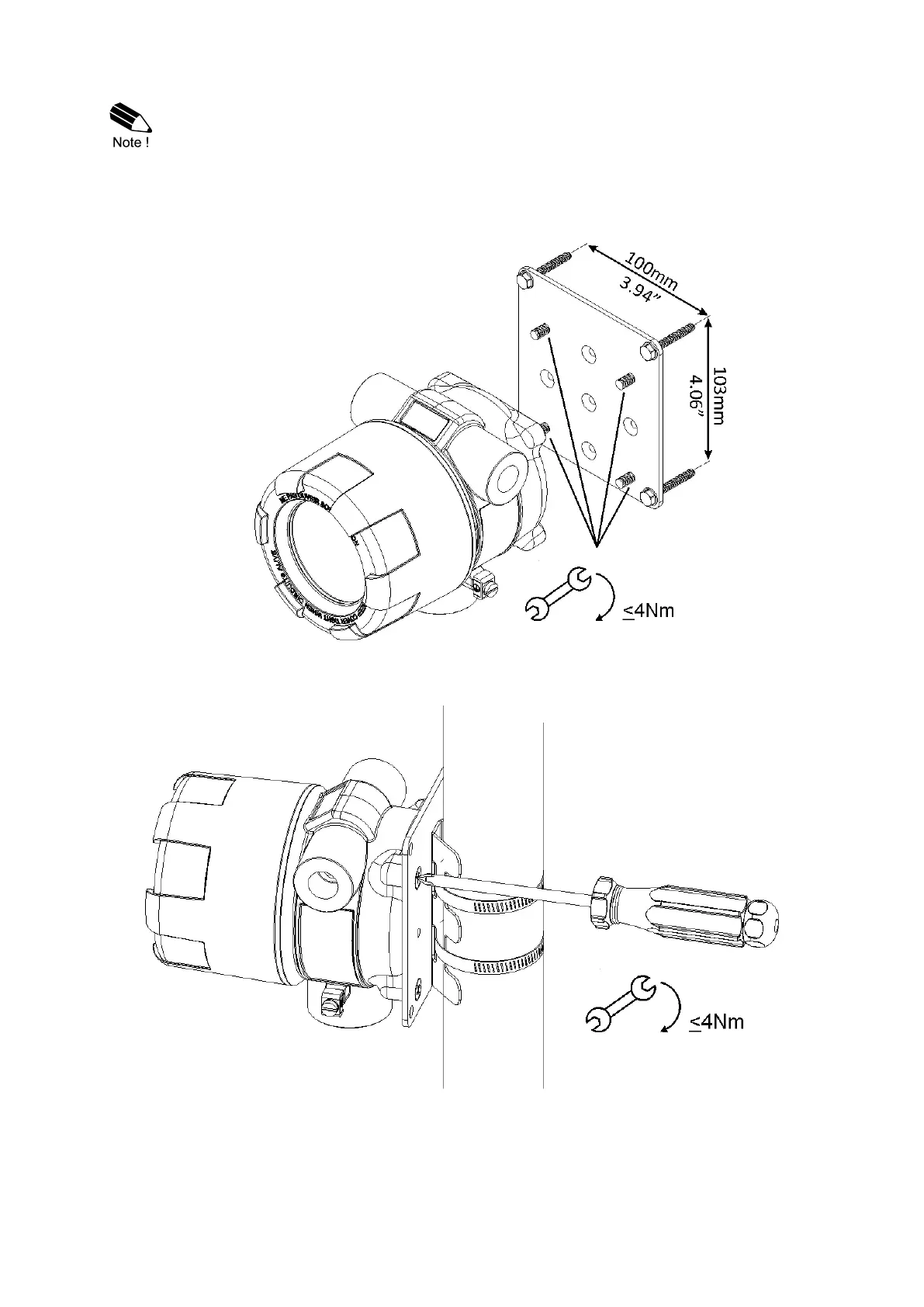

Fig. 10: Installation – Plate mounted
Fig. 11: Installation – Pipe mounted
