6 LABEL INFORMATION
6.1 GENERAL REMARKS REGARDING THE SHOWN LABELS
Two labels will be fitted on the E-series enclosure: one showing the certification data, the other
showing the thread sizes, type number, serial number and address applied.
The labels below show a typical example for recognition. For the actual data, refer to the label
which is attached to your unit or refer to the Appendix A; Technical specifications.
6.2 LABEL WITH CERTIFICATION DATA
The E-series comes in temperature class T6. T6 classified versions consume 4.5 watts or less.

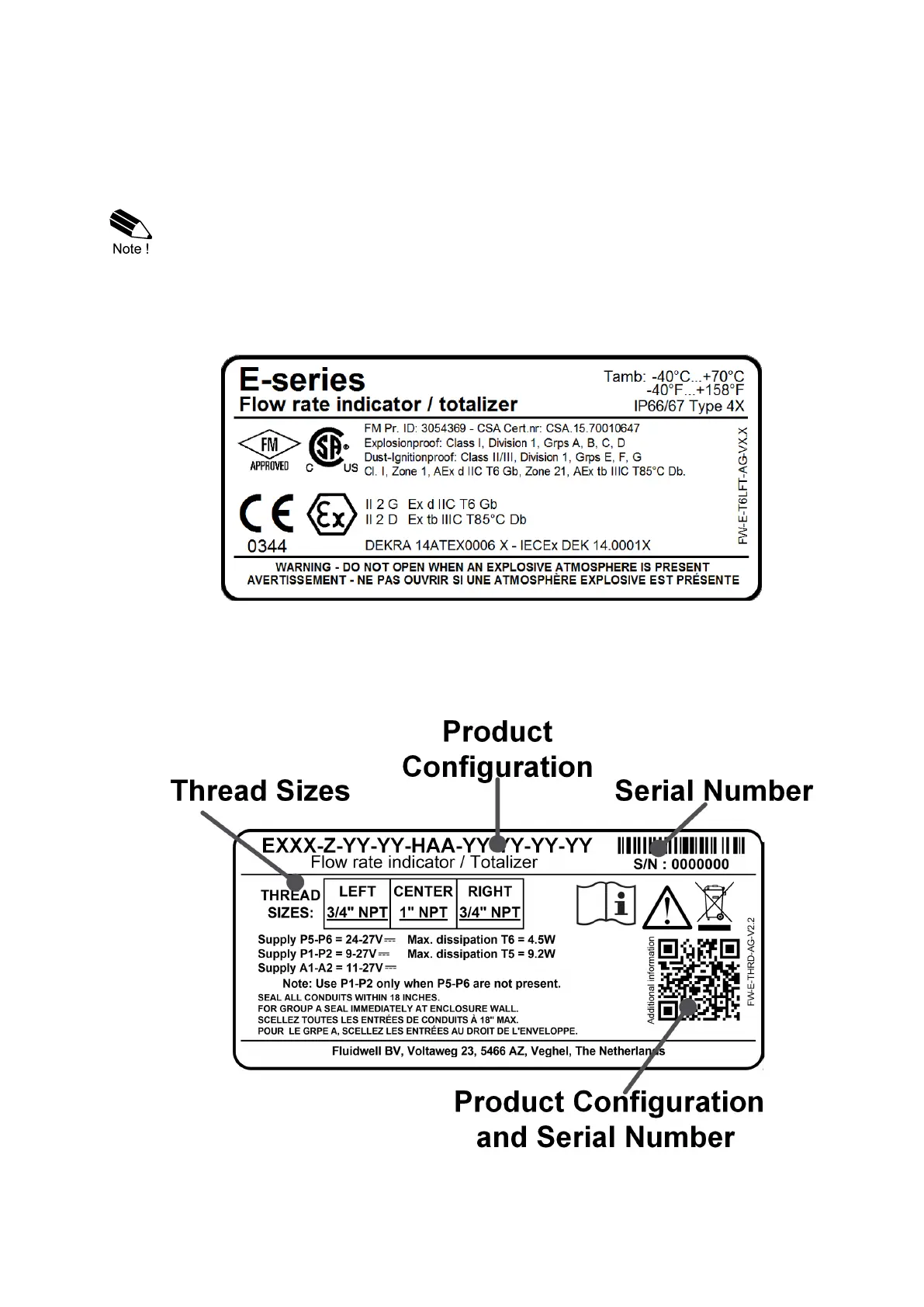

Fig. 27: External label Certification Data
6.3 LABEL WITH THREAD SIZES.
The thread sizes will be indicated on the label as per the drawings below.
Fig. 28: Example external label Thread Sizes
