4.4 MECHANICAL INSTALLATION
4.4.1 DIMENSIONS  ALUMINUM AND STAINLESS STEEL ENCLOSURES

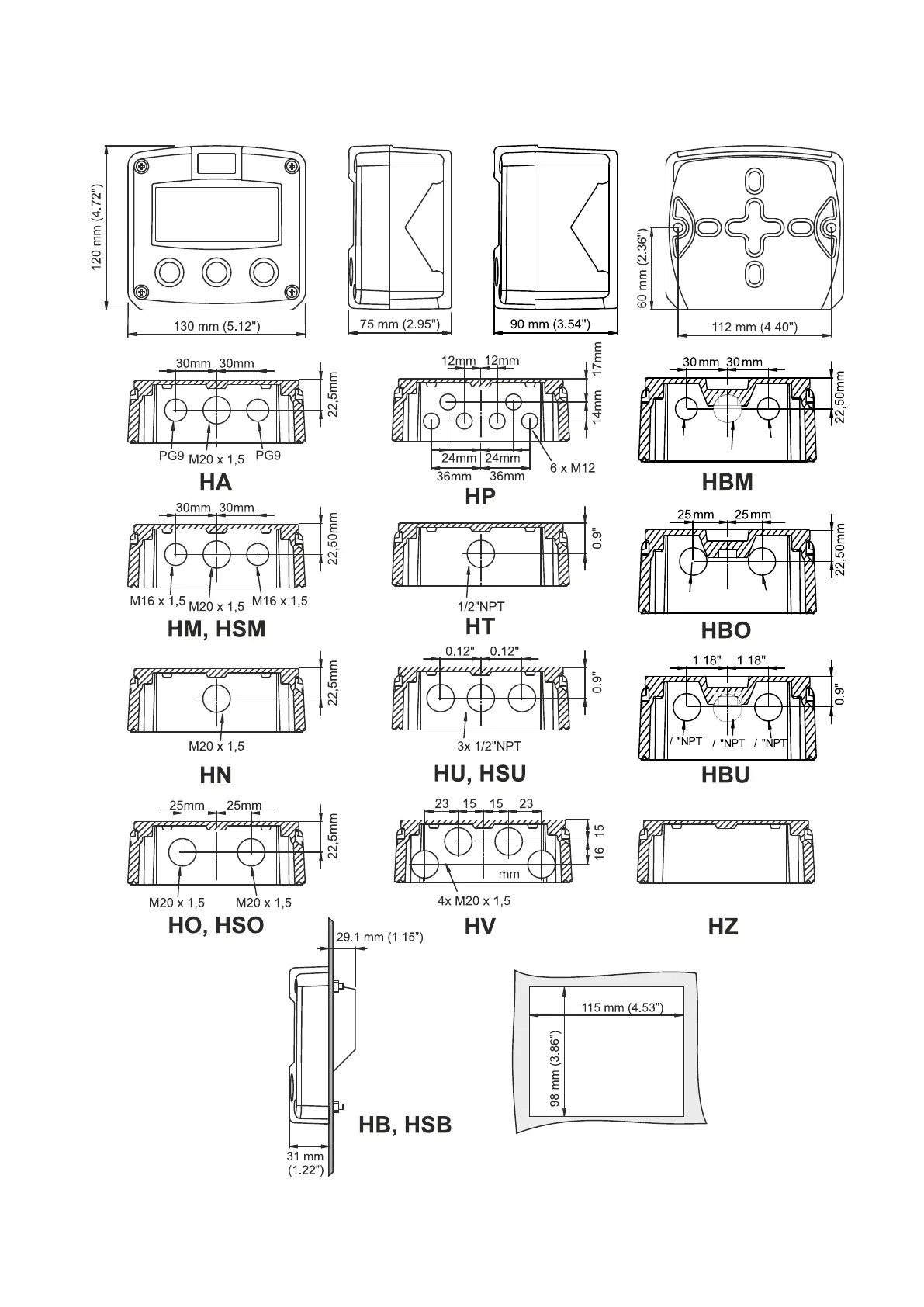

Fig. 12: Dimensions  Aluminum and stainless steel enclosures











