Page 28
FW_F130-P_M_v2201-01_EN.docx
4.6.2 TERMINAL 03-04: CONTROL OR PULSE OUTPUT R2
This output is available to control the batch process for two-step control or as pulse output. In case
of a pulse output function: the maximum pulse frequency of this output is 500Hz.
4.6.3 TERMINAL 05-06: CONTROL OUTPUT R1
This output is designed to drive a low-power device (e.g. relay) to control the batch process.
Relay 1 is switched-on during the whole batch process.
Type OA
An active 24V DC signal according to the functions R1 and R2 is available with this option. Max.
driving capacity 50mA@24V per output. (Requires power supply type PD/PF/PM).

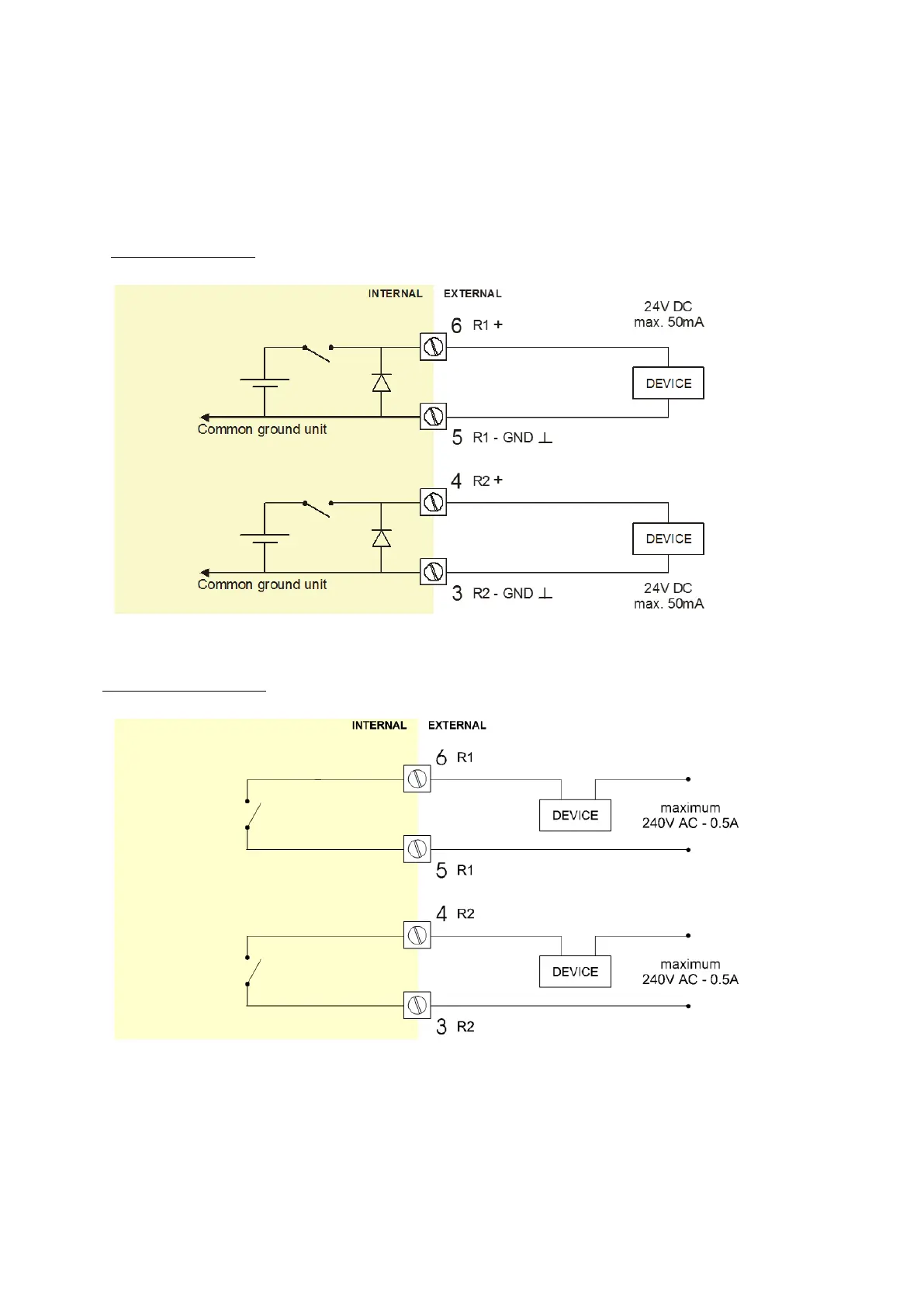

Fig. 17: Terminal connections - Active output (typical)
Type OR
A mechanical relay output according the functions R1 and R2 is available with this option. Max.
switch power 240V-0,5A per output. (Requires power supply type PF/PM).
Fig. 18: Terminal connections - Mechanical relay output R1 and R2.
