4.6.6 TERMINAL 15-16: EXTERNAL STOP
With this function, the batch controller can be interrupted or cancelled with an external switch.
The input must be switched once for interruption or switch twice for cancellation with a potential free
contact to the GND-terminal number 15 for at least 0.3 seconds.

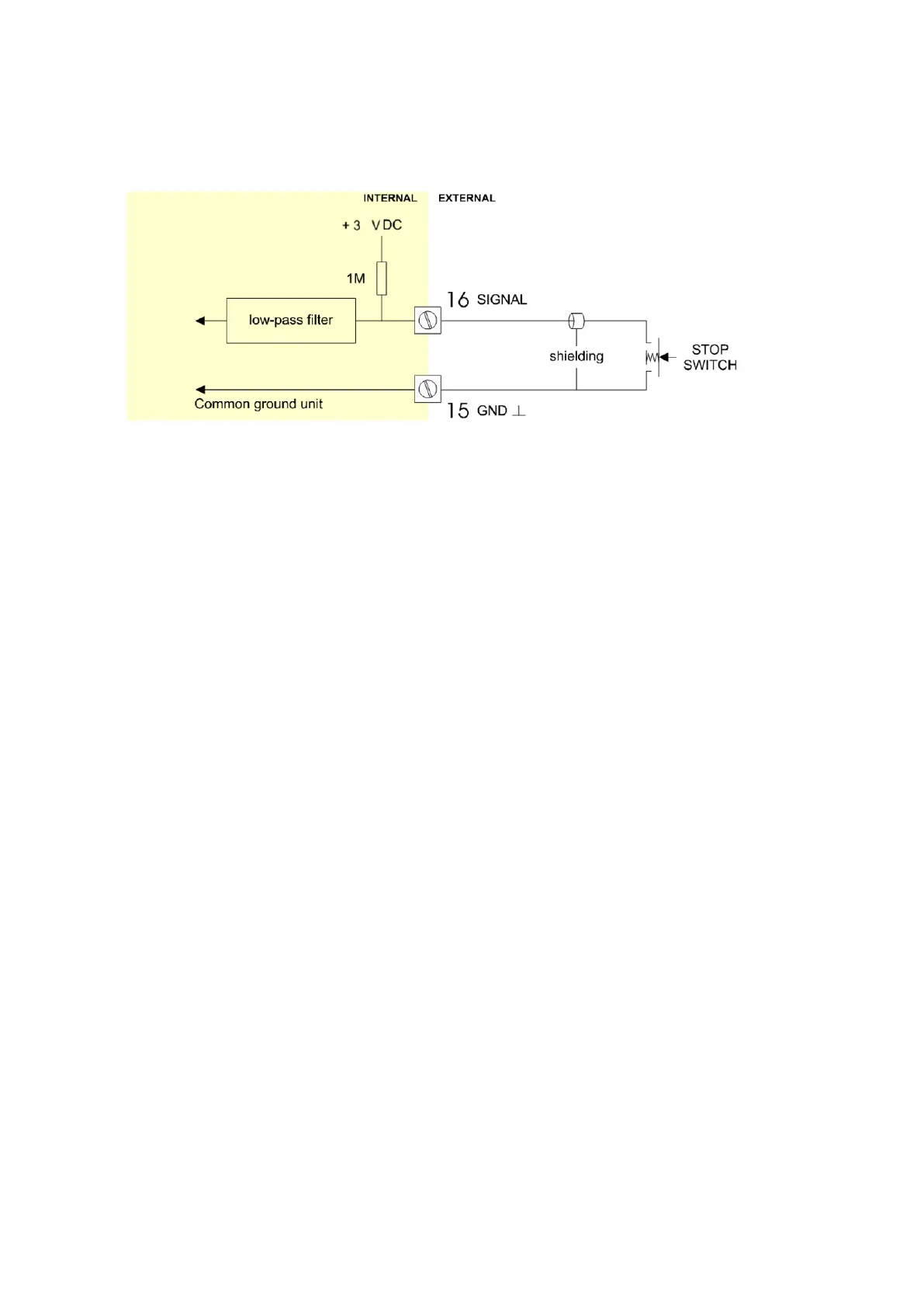

Fig. 27: Terminal connections - External stop (typical)
