Measuring AC and DC Current
WWarning
To avoid personal injury or damage to the
Meter:
• Never attempt to make an in-circuit
current measurement when the open-
circuit potential to earth is > 600 V.
• Use the proper switch position and range
for your measurement.
Flame
sensor
probe
Control
Module

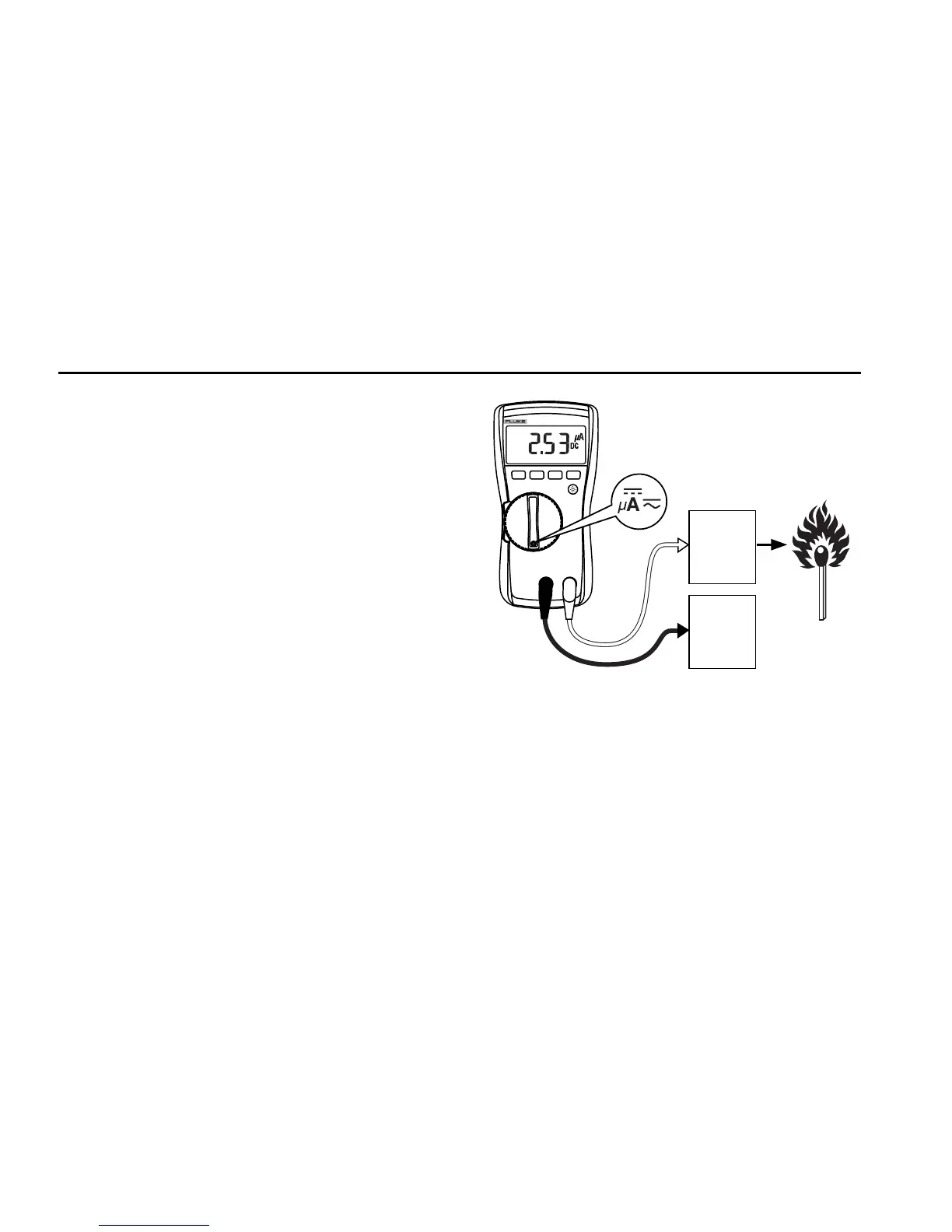

eeo08f.eps
To measure flame rectification circuits:
1. Turn the function switch to
$.
2. Connect the Meter between the flame sensor probe and
the control module.
3. Turn heating unit on and record μA measurement.
