True-rms Multimeter
Making Low Impedance Capacitance Measurements
15

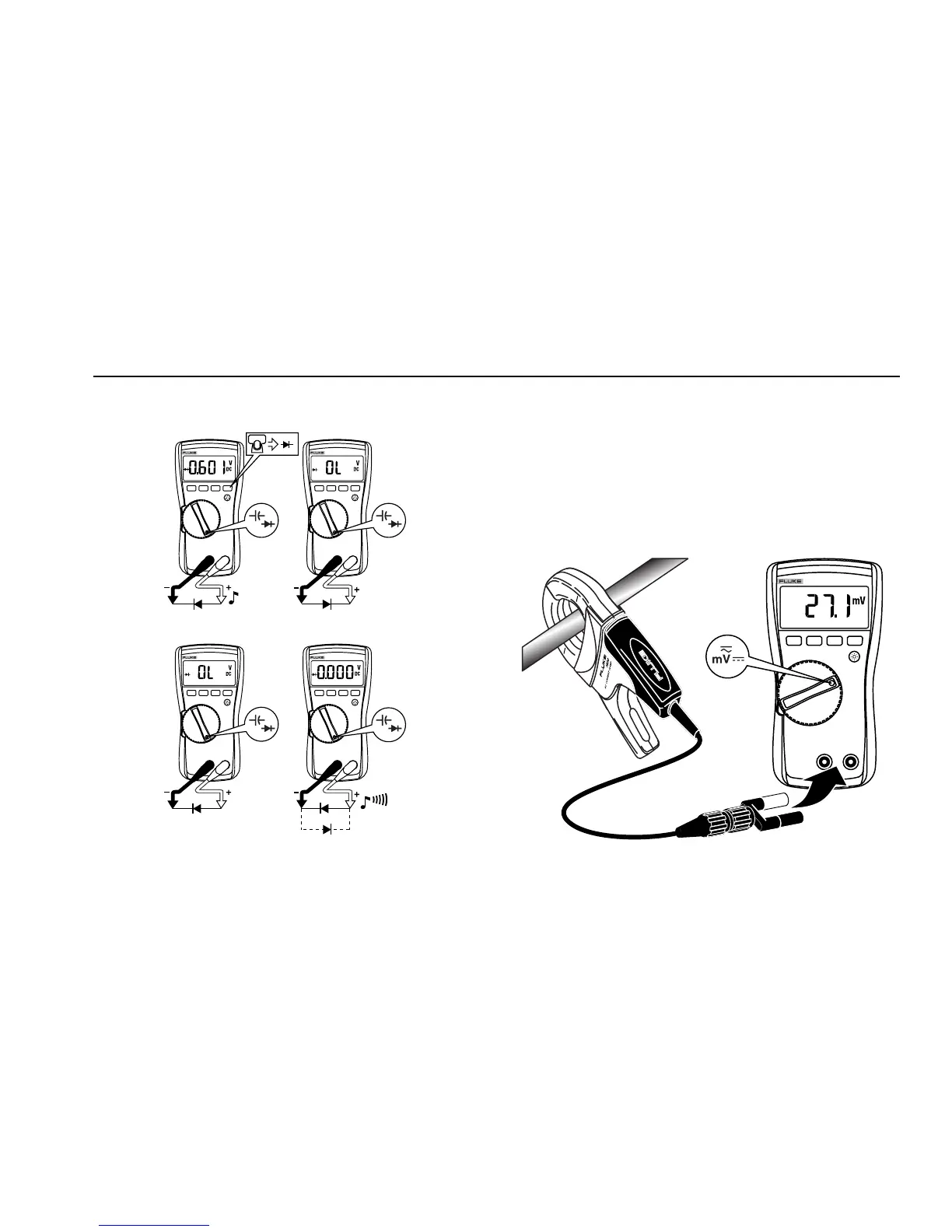

Testing Diodes
Forward Bias
Single
Beep
Reverse Bias
Shorted
and
Open
Bad Diode Bad Diode
Good Diode Good Diode
eeo07f.eps
Measuring Current above 600
μ A
The millivolt and voltage function of the Meter can be used
with an optional mV/A output Current Probe to measure
currents that exceed the rating of the Meter. Make sure the
Meter has the correct function, AC or DC, selected for your
current probe. Refer to a Fluke catalog or contact your
local Fluke representative for compatible current clamps.
eeo14f.eps
