Fluke 12 - TURNING BEEPER OFF; MAINTENANCE; Replacing the Battery; Replacing the Test Leads

10, 11, 12 Multimeters
Service Manual
3-4
WINDOW DECAL (MP3)
CASE TOP (MP2)
ELASTOMERIC CONTACT
STRIP, LCD (J3)
LCD (U3)
ELASTOMERIC CONTACT
STRIP, SWITCH (MP9)
TOP SHIELD
(MP7)
SWITCH SUPPORT (MP6)
MAIN PRINTED CIRCUIT
ASSEMBLY (A1)
SHOCK ABSORBER (MP10)
9V BATTERY (BT1)
CASE BOTTOM (MP8)
4 PHILLIPS-HEAD SCREWS (H1-4)
NON-SKID FOOT (MP11)
BOTTOM SHIELD (MP9)
SIDE-SWITCH
ACTUATOR (MP5)
SWITCH ASSEMBLY (S2)
CASE TOP
DECAL (MP4)
ana02F.eps

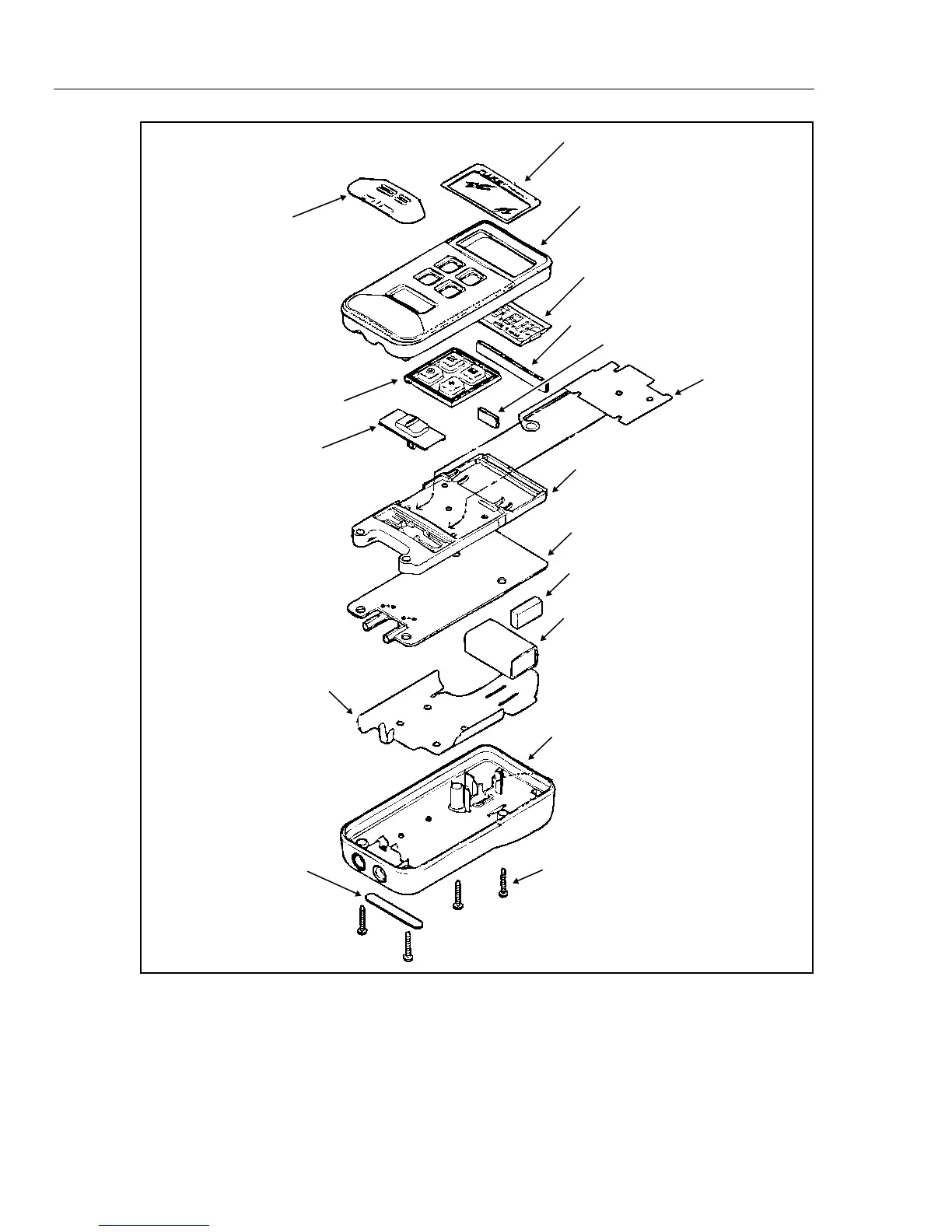

Figure 3-1. Disassembled Unit
