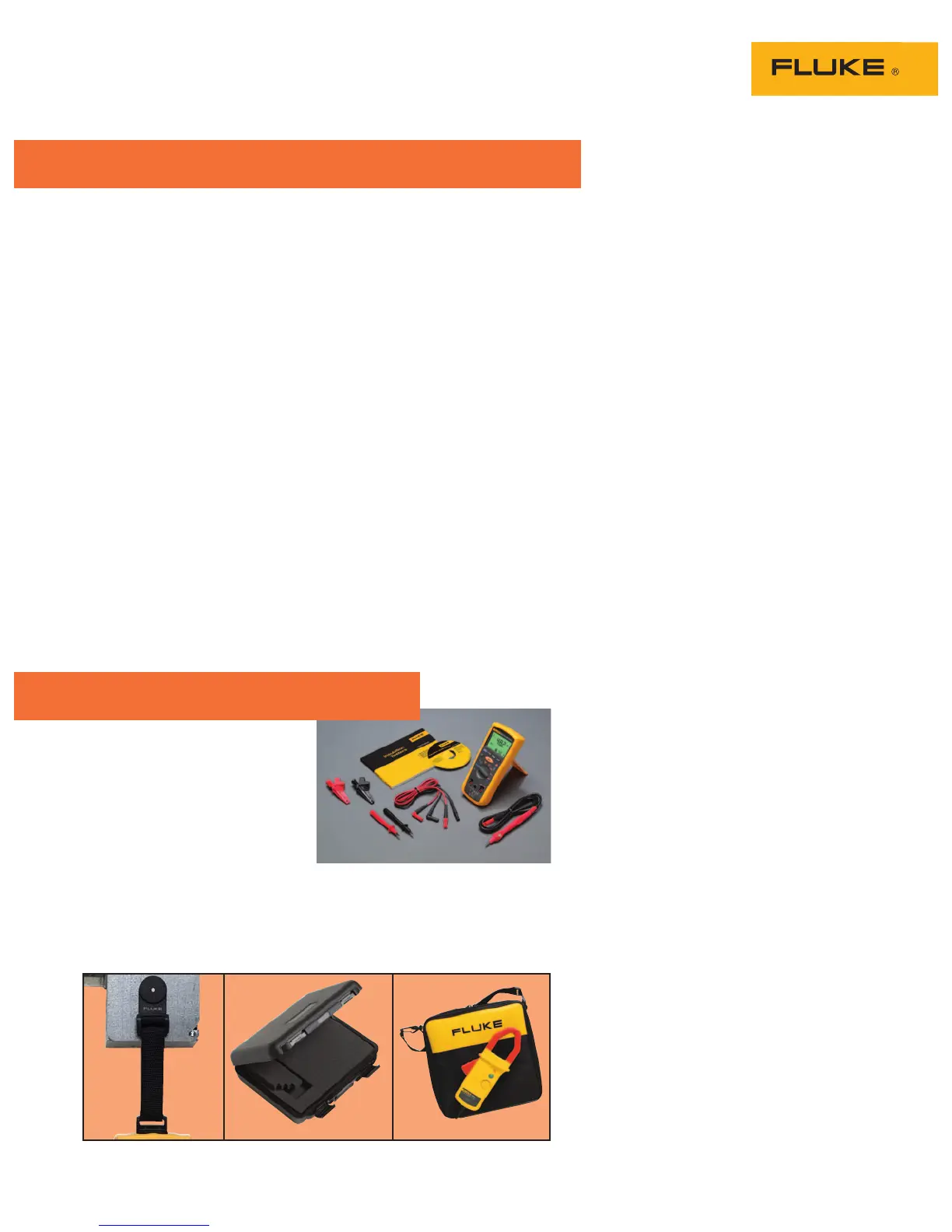

Fluke-1507 Insulation Tester
Fluke-1503 Insulation Tester
Included
Remote probe, test leads, test
prob
es, alligator clips, holster,
user documentation
Optional accessories
TPAK
™
Magnetic Tool Hanger
C1
0
1
Hard Case
TLK225 SureGrip Master
Accessory Kit
Maximum voltage applied to any terminal:
600 V ac rms or dc
Storage temperature: -40 °C to 60 °C
(-40 °F to 140 °F)
Operating temperature: -20 °C to 55 °C
(-4 °F to 131 °F)
T
emperature coefficient:
0.05 x (spec
ified accuracy)
per
°C for temperatures < 18 °C or > 28 °C
(< 64 °F or > 82 °F)
Relative humidity noncondensing:
0 % to 95 % @ 10 °C to 30 °C (50 °F to 86 °F)
0 % to 75 % @ 30 °C to 40 °C (86 °F to 104 °F)
0 % to 40 % @ 40 °C to 55 °C (104 °F to 131 °F)
Vibration: Random, 2 g, 5-500 Hz per
MIL-PRF-28800F, Class 2 instrument
Shock: 1 meter drop per IEC 61010-1 2nd Edition
(1 meter drop test, six sides, oak floor)
Electromagnetic compatibility: In an RF field of
3 V/M, accuracy = specified accuracy
(EN 61326-1:1997)
Safety: Complies with ANSI/ISA 82.02.01 (61010-1)
2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN
61010-1 2nd Edition for measurement category IV
600 V (CAT IV)
Certifications: CSA per standard CSA/CAN C22.2
No. 61010.1-04; TUV per standard IEC/EN 61010-1
2nd Edition
Batteries: Four AA batteries (NEDA 15A or IEC LR6)
Battery life
Insulation test use: Tester can perform at least 1000
insulation tests with fresh alkaline batteries at room
temperature. These are standard tests of 1000 V into
1 M
Ω with a duty cycle of 5 seconds on and 25 sec-
onds off
.
Resistanc
e measurements: Tester can perform at least
2500 earth bond resistance measurements with fresh
alkaline batteries at room temperature. These are
standard tests of 1
Ω with a duty cycle of 5 seconds
on and 25 seconds off.
Size: 5.0 cm H x 10.0 cm W x 20.3 cm L
(1.97 in H x 3.94 in W x 8.00 in L)
Weight: 550 g (1.2 lb)
IP rating: IP40
Altitude
Operating: 2000 m CAT IV 600 V,
3000 m CAT III 600 V
Non-operating (storage): 12,000 m
Over-range capability: 110 % of range
Included accessories: TL224 Test Leads, TP74 Test
Probes, clips PN 1958654 (red) and PN 1958646
(black), holster and remote probe
Ordering Information
1507/1503 General Specifications
TPA K C101 i1010-Kit

Fluke 1503 Specifications

General

Display type	-
Housing color	Grey, Yellow
Maximum voltage	600 V
Drop proof up to	1 m
Operating altitude	0 - 2000 m
Auto discharge time	0.5 s
Operating vibration	2 G
Overload protection	Yes
Non-operating altitude	0 - 12000 m
Maximum capacitive load	1 µF
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	-20 - 55 °C
Insulation measurement range	0.01 - 2000 MΩ
Insulation test voltage accuracy	20 %
Operating relative humidity (H-H)	0 - 95 %
Insulation measure accuracy (500V)	1.5 %
International Protection (IP) code	IP40
Battery size	AA
Number of batteries supported	4

Weight and Dimensions

Depth	50 mm
Width	100 mm
Height	203 mm
Weight	550 g
