Table 5. Error Messages (cont.)
Message Description
diSc Meter cannot discharge a capacitor.
EPPr
Err
Invalid EEProm data. Have the Meter
serviced.
CAL
Err
Invalid calibration data. Calibrate the Meter.
Input Terminals

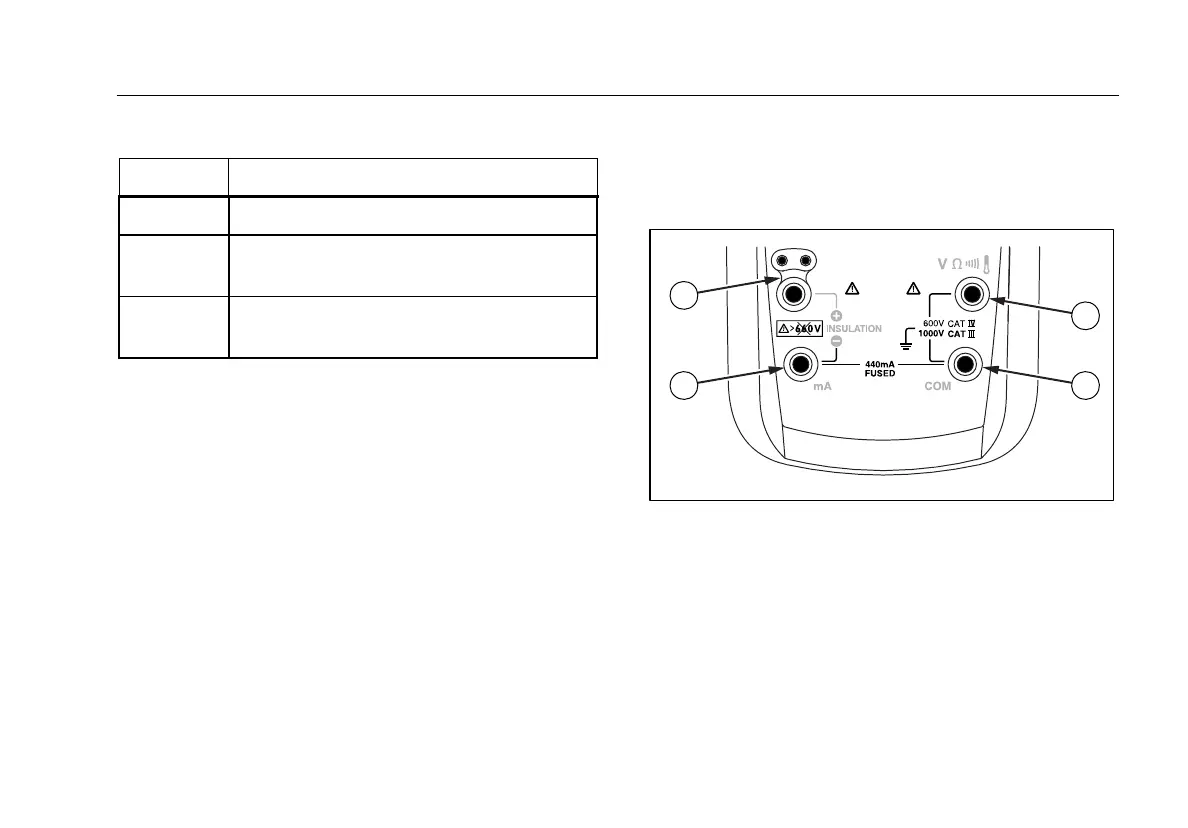

Input terminals are shown in Figure 4 and described in
Table 6.
1
2
3
4
bav04f.eps
Figure 4. Input Terminals
