Model 16 English Instruction Sheet
Page
7
Microamps
µA
Range 0 to 200 µA
16
MULTIMETER
OFF
600V
COM
CAT
+
A
TEMPERATURE
V
•
Check
Flame
sensor
probe
Control
module
µA AC µA DC
ip20i.eps

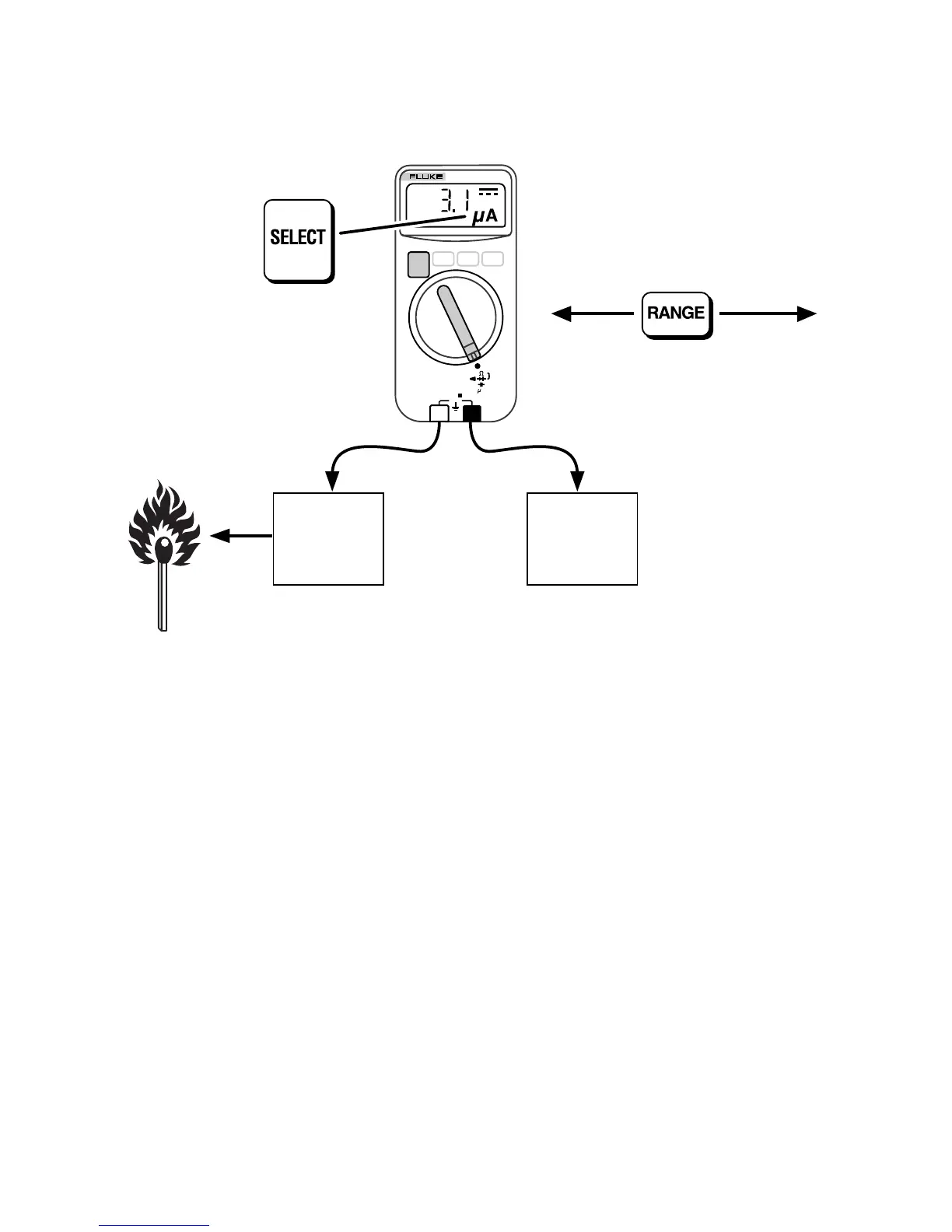

Example: Flame rectification circuit.
To measure flame rectification circuits:
1. Turn function switch to far right position.
2. Push select button 3 times to select µA.
3. Connect meter between flame sensor probe and control module.
4. Turn heating unit on and record µA measurement.
