Fluke 341A - Mechanical Specifications; General Specifications

VIBRATION
Withstands
10
Hz to 55 Hz,
4.5
g
maximum per MIL-
T-21200.
ALTITUDE
Up
to 10,000
feet
operating and 50,000
feet non-operating,
per MIL-T-21200.
1-7.
MECHANICAL
SPECIFICATIONS
SIZE
3H
inches high
by
17 inches wide by 18 inches deep.
MOUNTING
Mounting brackets
provided
for standard EIA 1 9-inch rack
mount,
and resilient
feet provided for bench use. Tapped
341
A
343A
holes also
provided
for attaching chassis slides. The instru-
ment outline
drawing
is shown in Figure
1
-1
.
WEIGHT
23
pounds
1-8.
GENERAL
SPECIFICATIONS
DESIGN
Solid-state throughout
FUSES
Single-fused
ac line and high
voltage
METER
Monitors output voltage and current

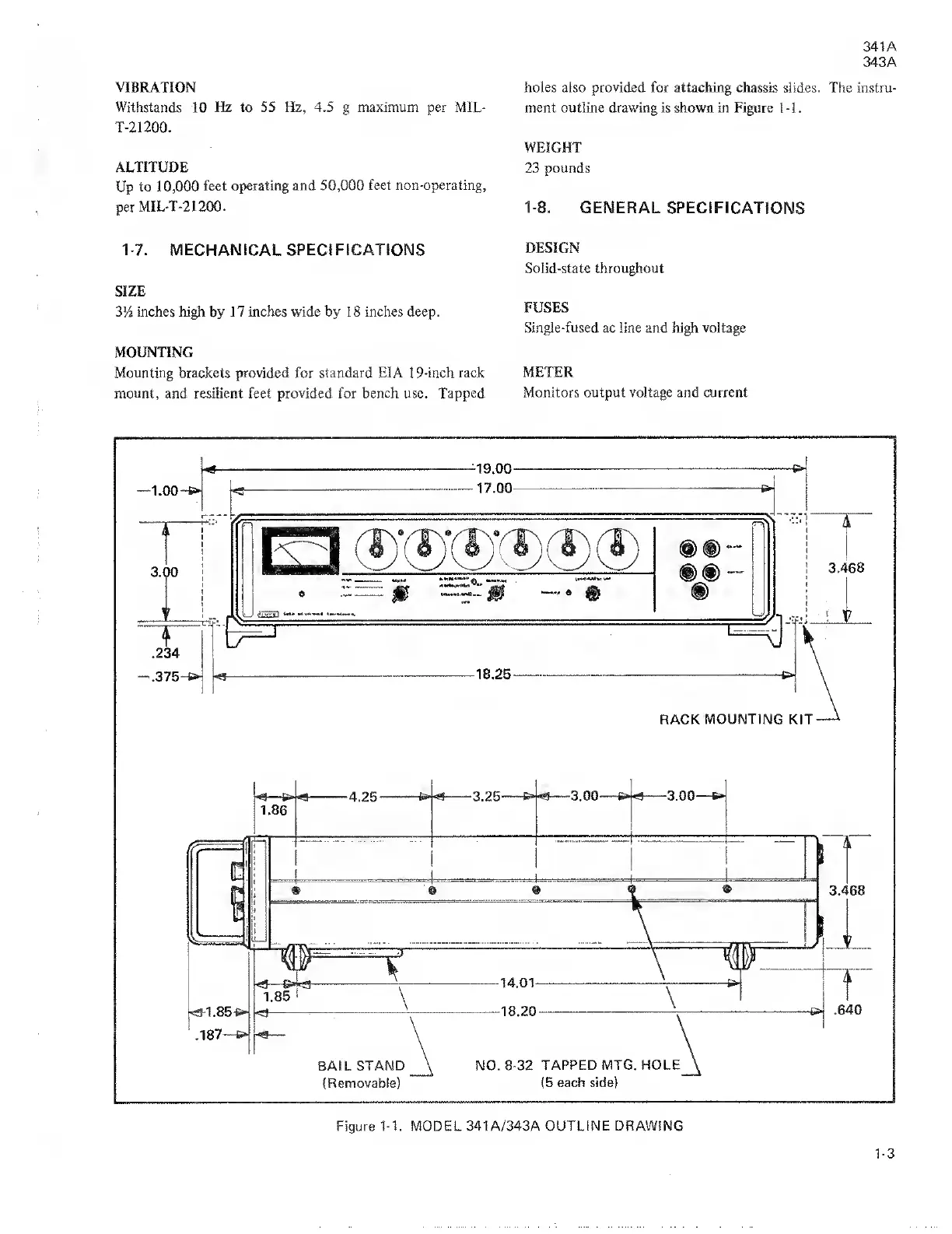

Figure
1-1.
MODEL 341A/343A
OUTLINE DRAWING
1-3
