Multifunctional Endpiece
The 419D and 424D Meters adapt to multiple
measurement situations with the multifunctional endpiece,

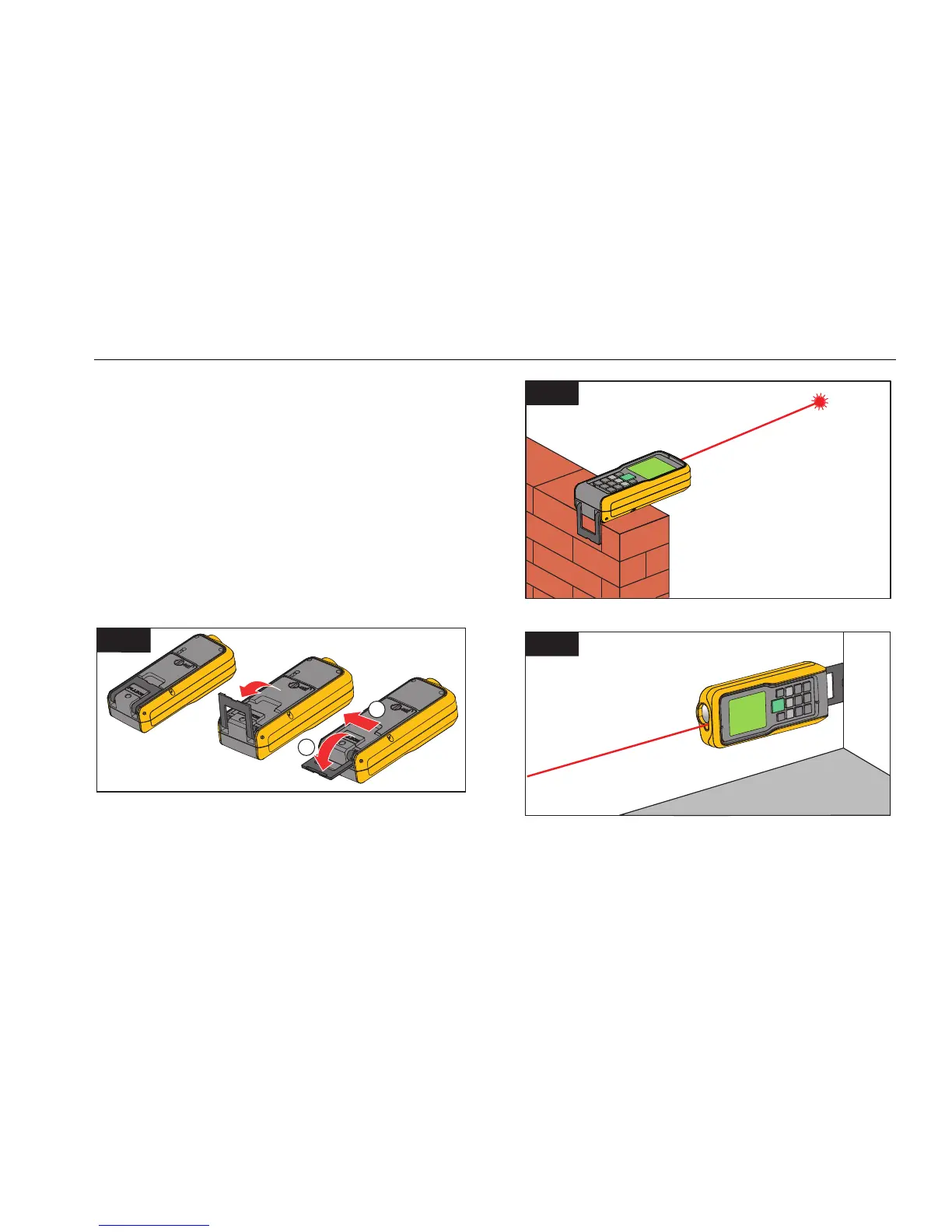

see Figure 3:
• For measurements from an edge, fold out the
endpiece (90 °) until it locks into place. See Figure 4.
• For measurements from a corner, fold out the
endpiece (90 °) until it locks into place. Push the
endpiece lightly to the right side to fold it out fully.
See Figures 3 and 5.
• A built-in sensor automatically senses the orientation
of the endpiece and adjusts the zero point.
3
1
2
gwo02.eps
4
gwo03.eps
5
gwo04.eps
