Logger
Trend21
21-3
Trend

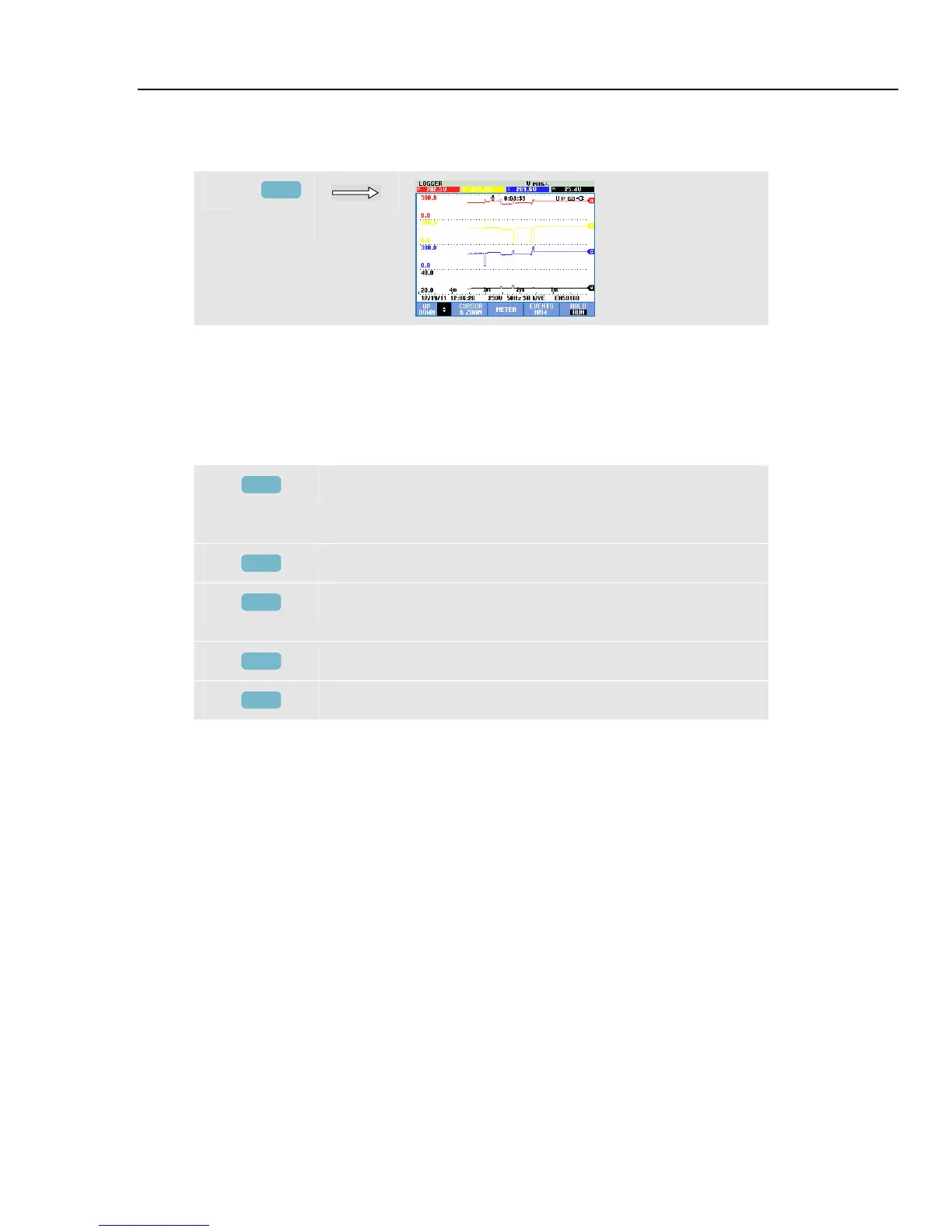

To access the Logger Trend screen:
e
F3
All readings are recorded during logging, but not all of them are visible at a time. Use the
up/down arrow keys to make the desired set of trends visible within the viewing area.
The traces are build up from the right side. Readings in the header correspond to the most
recent values plotted on the right.
Available function keys:
F1
The up/down arrow keys are assigned to select a set of
loggings for Trend display. The selected set is displayed in
the screen header.
F2
Access to submenu for Cursor and Zoom operation.
F3
Access to Meter screen showing momentary measuring
results of all logged readings.
F4
Access to Events Table.
F5
Access to menu to stop the logging.
Cursor. When the Cursor is on, the Trend values at the Cursor are displayed in the screen
header. Moving the Cursor off the left or right side of the screen brings the next screens
into the viewing area. Cursor is only active in ‘Hold’ mode.
Zoom. Allows you to expand or shrink the display vertically or horizontally to view
details or to fit a complete graph within the screen area. The min, max, and average
values of the trend are displayed in the screen header if vertical zoom is expanded to one
trace in the viewing area. Zoom and Cursor are operated by the arrow keys and explained
in Chapter 23.
Offset and Span of the Trends are auto ranging for a good display in most cases, but they
are adjustable when required. The adjustment menu is reached via the SETUP key and
function key F3 - FUNCTION PREF. See Chapter 24, FUNCTION PREFerences
