Fluke 438-II User Manual

Motor Analyzer
Motor Setup
7

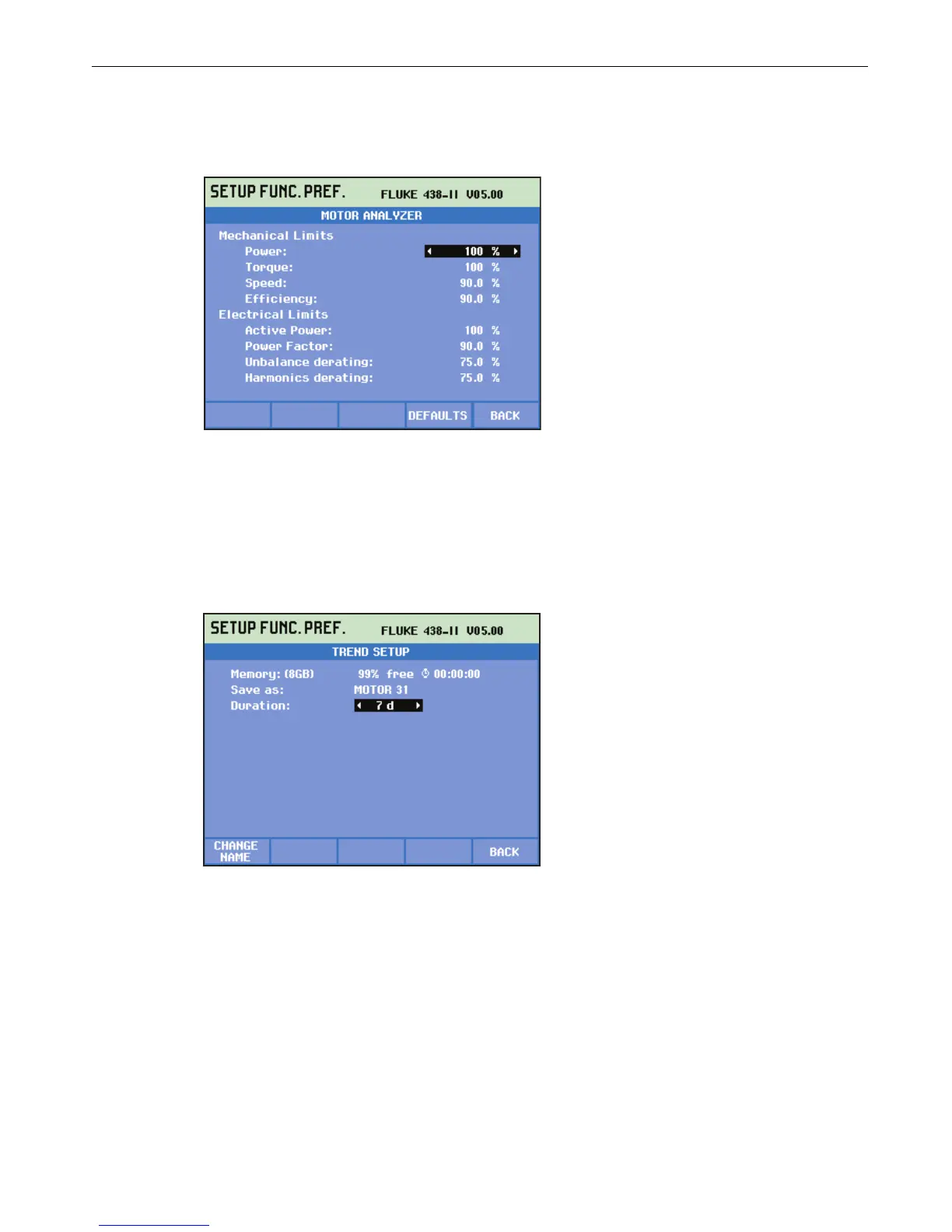

Set Analyzer Limits
You can adjust the default limit values that show the system performance in various bar graphs. The limits
you enter here adjust where the bar graph shows the transition from orange to red. See Motor Analyzer
Parameters on page 8 for more information.
To change:
1. Use  to change a default value.
2. Press  to restore the default values.
Trend Setup
The Trend Setup screen is a simplified version of the normal TIMED START screen. Motor Analyzer has an
immediate start mode only and TIMED START is not available. To open the screen, go to Motor Setup
screen and press .
The top line is information about the available memory space (43X-series II standard feature).
You can adjust the duration of the TREND. Default is the global TREND duration as defined in the Function
Preferences Trend setup screen. The TREND resolution is fixed at 1s.
Softkeys:
 CHANGE NAME
Change the name of the data file (43X-series II standard
feature).
 BACK Go to the MOTOR SETUP screen.

Fluke 438-II Specifications

General

Test leads	Yes
Display diagonal	- \
Display resolution	320 x 240 pixels
Display technology	LCD
Efficiency	100 %
Input frequency	40 - 70 Hz
Battery technology	Alkaline
Product type	Power & motor quality analyzer
Voltage measurement resolution	0.01 V
International Protection (IP) code	IP51
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 95 %
Operating relative humidity (H-H)	0 - 45 %
Mini-USB ports quantity	1
