P3000 Pneumatic
Deadweight Tester
High performance gas deadweight testers,
with unique suspended piston design for
vacuum calibration.
• 0.015 % of reading accuracy standard
(0.008 % optional)
• 3 to 500 psi (0.2 to 35 bar) pressure
• Optional low range 0.03 to
1 bar vacuum (1 to 30 inHg)
• Integrated vacuum and pressure pump
available to 2 MPa
(300 psi)
P3100 Hydraulic
Deadweight Tester
Highly accurate oil deadweight tester,
with quick and easy-to-use single and
dual piston deadweight models.
• Pressure ranges to 140 MPa (20 k psi,
1400 bar)
• 0.015 % of reading accuracy standard
(0.008 % optional)
• Built-in pressure generation and
adjustment
• Single or dual piston formats
P3200 Hydraulic
Deadweight Tester
Hydraulic deadweight tester specially
designed to use water as a test medium.
• Pressure ranges to 70 MPa
(10 k psi, 700 bar)
• 0.015 % of reading accuracy standard
(0.008 % optional)
• Built-in pressure generation and
adjustment is standard
• Single or dual piston formats
• Water media
P3800 Hydraulic
Deadweight Tester
High performance and simplicity for very
high pressure hydraulic calibration.
• Pressure ranges to 400 MPa (60 k psi,
4,000 bar)
• 0.02 % of reading accuracy standard
(0.015 % optional)
• Includes hand pump and intensifier for
generating and adjusting high pressures
Pressure
comparators
P5510 Pneumatic
Pressure Comparator*
Precise, cost effective solution for
checking pressure measuring instruments
to 300 psi (20 bar).
• Dual pressure/vacuum capability
• Pressure to 21 MPa (300 psi, 20 bar)
• Vacuum from 0 to 80 kPa
(0 to 24 inHg, 800 mbar)
• Built-in pressure and vacuum
generation
P5513 Pneumatic
Pressure Comparator*
Precise, cost effective solution for
checking pressure measuring instruments
to 3,000 psi (210bar).
• Pressure range 0 to 21 MPa
(3 k psi, 210 bar)
• High pressure pneumatic operation
• Screw press for fine pressure
adjustments
• High quality needle valves for fine
control
P5514 and P5515 Series
Hydraulic Pressure Comparators*
Quick and easy solutions for checking
pressure measuring instruments to
10,000 psi (700bar).
• Compatible with a wide range of fluids
• P5514 Test Pump generates pressures to
70 MPa (10 k psi,
700 bar)
• P5515 Test Pump generates pressures to
140 MPa (20 k psi, 1,400 bar)
• P5515 has a built-in hand pump for
system priming and large volume
applications

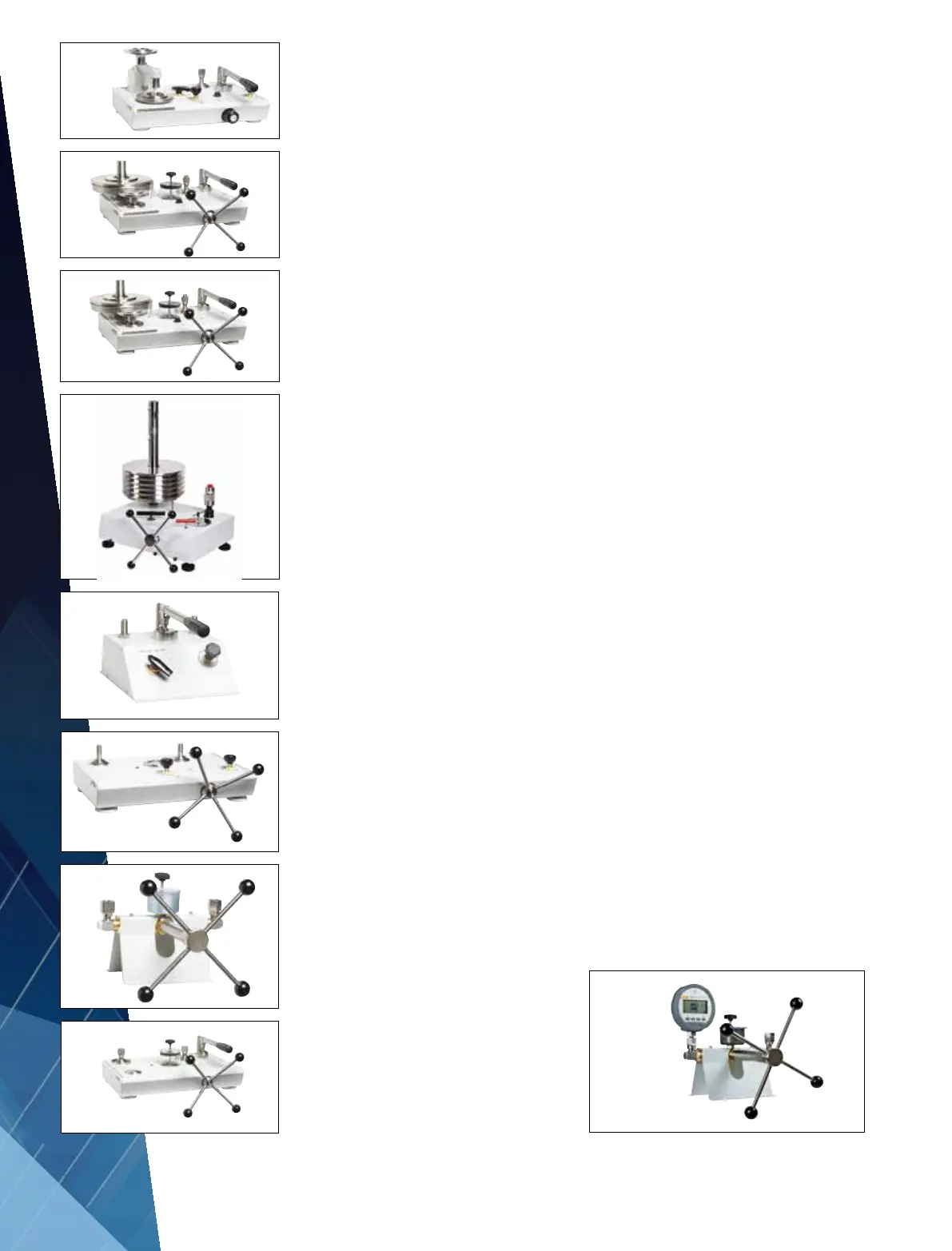

P3100
P3200
P3800
P5514
P5514
with 2700G
P5515
P3000
P5513
P5510
* Can be used with the 2700G Reference Pressure Gauge to provide a complete calibration solution
