525B Temperature/Pressure
Calibrator
Superior accuracy and function-
ality in an economical benchtop
package.
• A calibrator to address process
industry instrumentation
• Simulates and measures all
ANSI thermocouples, as well
as L and U types, and provides
cold junction compensation
to enable calibration of a
wide variety of thermocouple
instrumentation
• Direct input for storage of
ITS-90 RTD constants
• RTD source uncertainties
to 0.03 °C
Oscilloscope
calibrators
9500B Oscilloscope
Calibrator
The highest performance, fully
automated, upgradeable oscillo-
scope calibration workstation.
• Full automation provides
totally hands-free calibration
• Bandwidths of 600 MHz,
1,000 MHz, 3,200 MHz, and
6,400 MHz
• A fast edge of 25 ps to address
bandwidths up to 14 GHz
• Connect up to five channels
simultaneously
55XX Series Oscilloscope
Calibration Options
Options for the 5502A and 5522A
calibrators add capabilities to
calibrate your digital and analog
oscilloscopes with any of three
different ranges of bandwidths.
• Leveled sine wave genera-
tor with optional bandwidths
of 300 MHz, 600 MHz and
1100MHz for verifying
oscilloscope bandwidth
• DC and square wave voltage
generators for calibrating
voltage gain
• Horizontal time base
calibration functions
• Edge source including a 300 ps
fast edge with low aberrations
for verifying dynamic response
• Fast edge risetime pulse
generator (< 1 ns) for checking
pulse response
Precision
multimeters

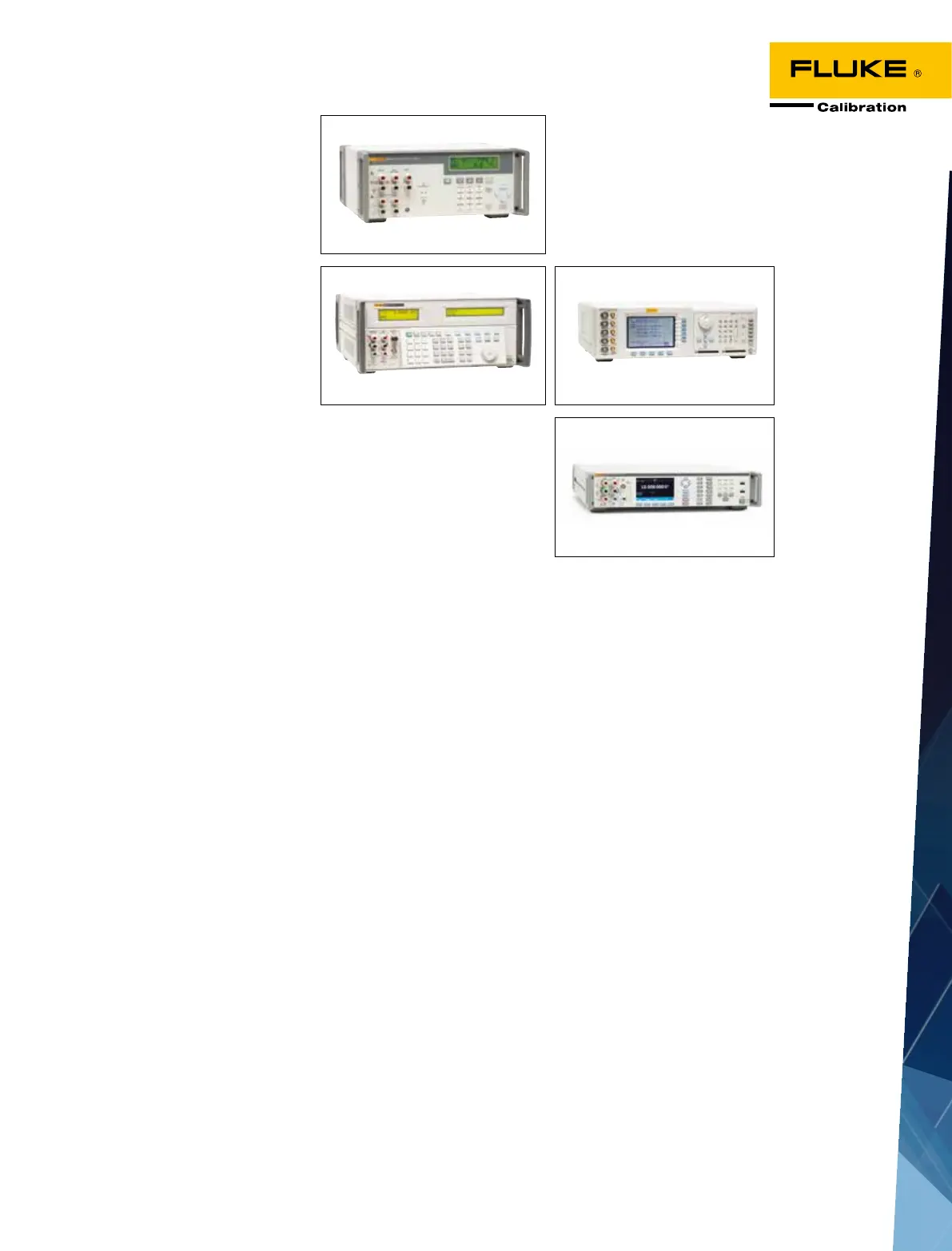

8588A Reference Multimeter
The world’s most stable digitizing
reference multimeter
• 8.5 digit resolution, exceptional
linearity ad low noise and
stability
• Guaranteed 3.5 ppm 1 year
accuracy (99 %) analog perfor-
mance without self-calibration
• AC rms measurement perfor-
mance that is ten times faster,
two times less noisy, and more
sensitive for low level signals
than other instruments in this
class
• 0 to 10 s aperture setting
allows industry’s widest
flexibility to control data
capture window
• Intuitive menu structure and
graphical display that enables
instantaneous visualization of
trend plot, statistical analysis,
histogram and FFT
• GPIB, USBTMC, Ethernet allows
industry standard selection of
remote interface
8558A 8.5 Digit Multimeter
The industry’s fastest direct 5
mega-samples-per-second
digitizing for system automation
in labs and manufacturing test
environments.
• Digitizes at 5 MS/s, 18-bit
resolution into memory for
capturing complex, fast
changing waveforms
• Up to 20 MHz bandwidth for
voltage and 4 MHz for current
retains high bandwidth
content of the signal measured
• 4.5 digit data delivered to a PC
at 100 kilo-readings/s
www.flukecal.com
7
Electrical calibration

Fluke 5730A Specifications

General

Type	Multifunction Calibrator
Resistance Range	0 to 1 GΩ
AC Voltage Frequency	10 Hz to 1 MHz
Display	Color LCD
Interfaces	RS-232, Ethernet
Weight	18 kg
DC Voltage Range	0 to ±1100 V
Dimensions	172 mm H x 432 mm W x 457 mm D (6.8 in H x 17 in W x 18 in D)
