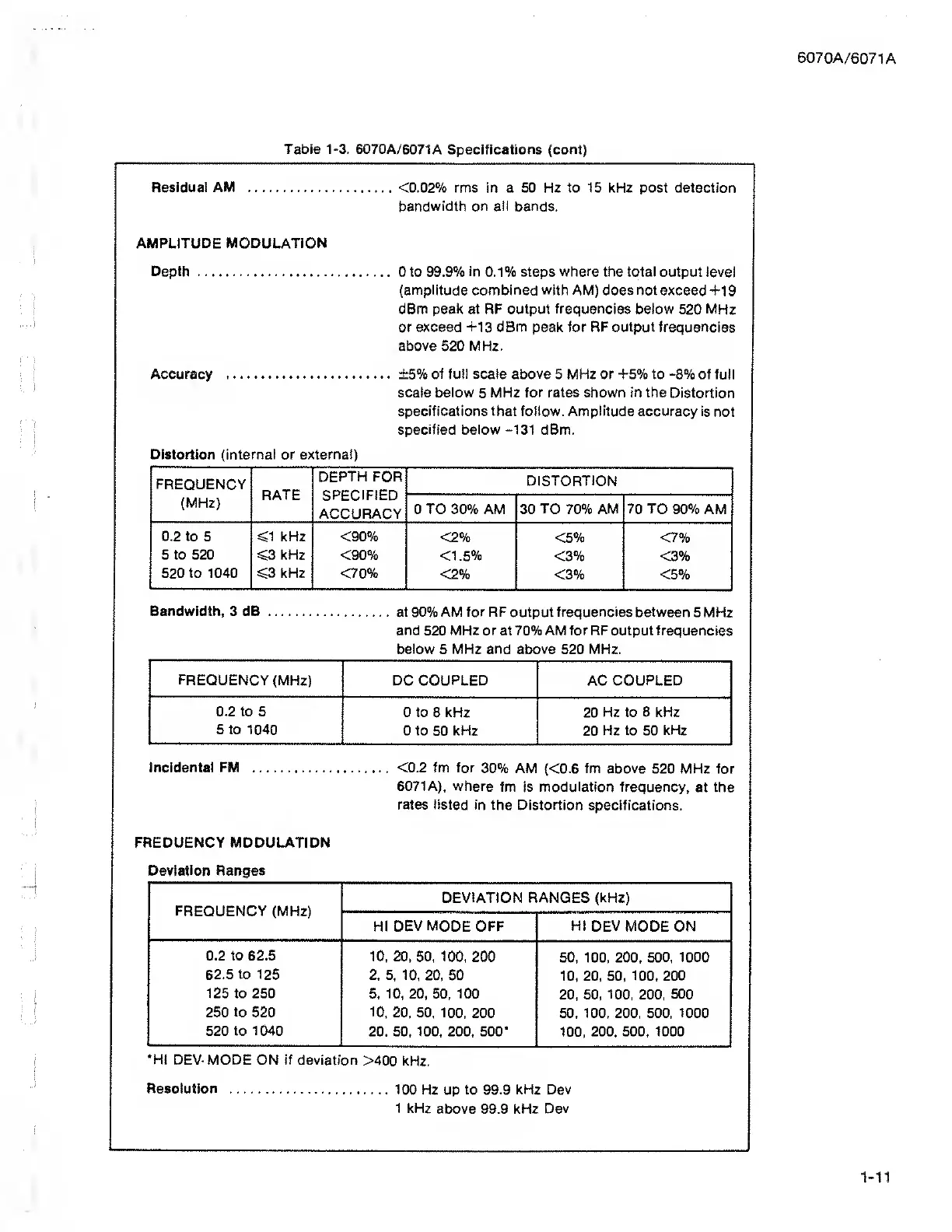

Table 1-3. 6070A/6071A Specifications (cont)
Residual AM <0.02% rms in a 50 Hz to 15 kHz post detection
bandwidth on all bands.
AMPLITUDE MODULATION
Depth.0 to 99.9% In 0.1% steps where the total output level
(amplitude combined with AM) does not exceed 4-19
dBm peak at RF output frequencies below 520 MHz
or exceed +13 dBm peak for RF output frequencies
above 520 MHz.
Accuracy .±5% of full scale above 5 MHz or +5% to -8% of full
scale below 5 MHz for rates shown in the Distortion
specifications that follow. Amplitude accuracy is not
specified below -131 dBm.
Distortion (internal or external)
FREQUENCY
DEPTH FOR
SPECIFIED
ACCURACY
DISTORTION
(MHz)
0 TO 30% AM 30 TO 70% AM 70 TO 90% AM
0.2 to 5 ^1 kHz <90%
<2%
<5%
<7%
5 to 520
^ kHz <90%
<1.5% <3% <3%
520 to 1040 ^ kHz
<70%
<2%
<3% <5%
Bandwidth, 3 dB . a t 90% AM for RF output frequencies between 5 MHz
and 520 MHz or at 70% AM for RF output frequencies
below 5 MHz and above 520 MHz.
FREQUENCY (MHz) DC COUPLED AC COUPLED
0.2 to 5
0 to 8 kHz
20 Hz to 8 kHz
5 to 1040
0 to 50 kHz
20 Hz to 50 kHz
incidental FM .<0.2 fm for 30% AM (<0.6 fm above 520 MHz for
6071A), where fm is modulation frequency, at the
rates listed in the Distortion specifications.
FREQUENCY MODULATION
Deviation Ranges
FREQUENCY (MHz)
DEVIATION RANGES (kHz)
H! DEV MODE OFF HI DEV MODE ON
0.2 to 62.5
10, 20, 50, 100, 200
50. 100, 200, 500, 1000
62.5 to 125
2, 5. 10, 20, 50
10, 20, 50, 100, 200
125 to 250
5, 10, 20, 50, 100
20, 50, 100, 200, 500
250 to 520 10, 20, 50, 100, 200
50, 100, 200, 500, 1000
520 to 1040
20. 50, 100, 200, 500- 100, 200, 500, 1000
*Ht DEV- MODE ON if deviation >400 kHz,
100 Hz up to 99.9 kHz Dev
1 kHz above 99.9 kHz Dev
Resolution
