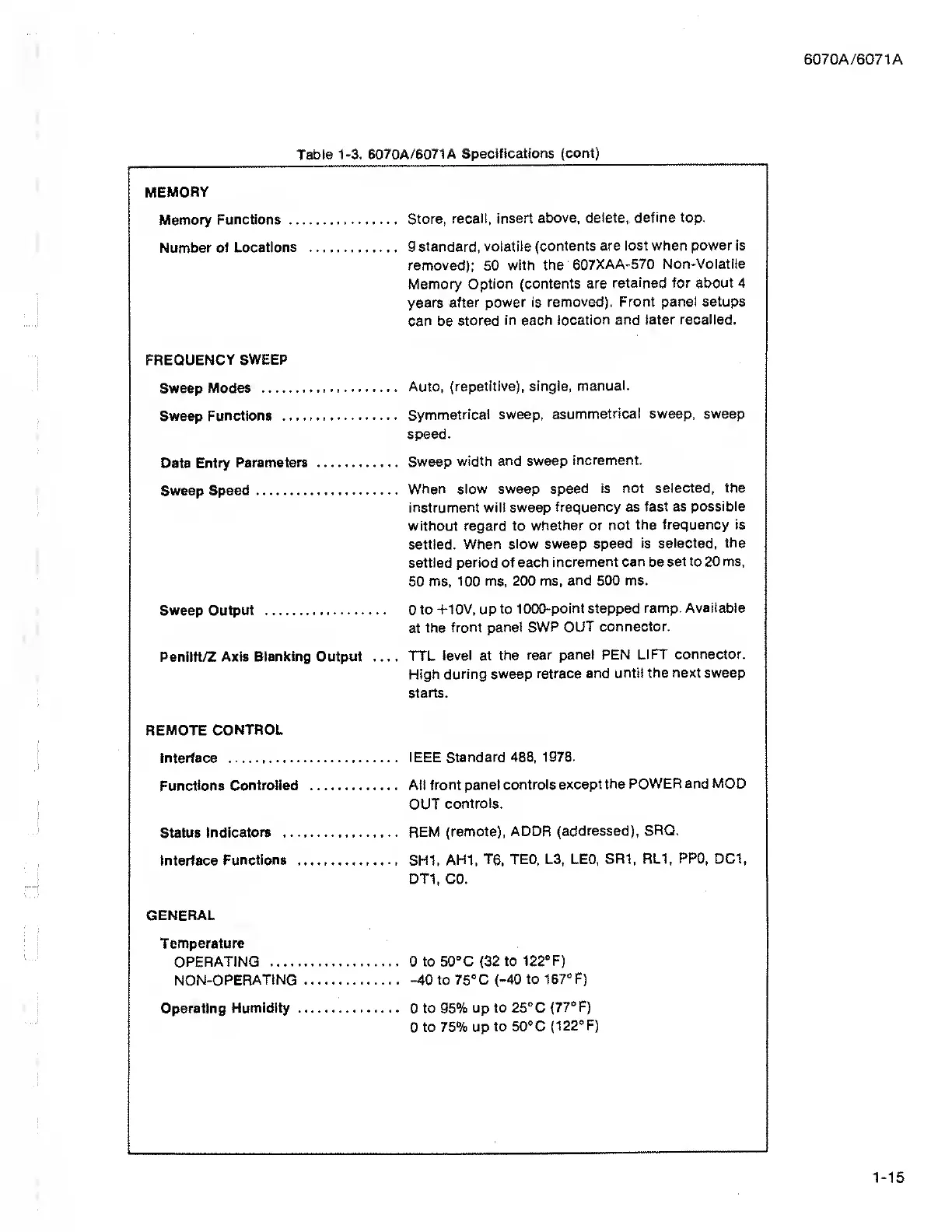

Table 1-3. 6070A/6071A Specifications (cont)
MEMORY
Memory Functions.
Store, recall, insert above, delete, define top.
Number of Locations .
9 standard, volatile (contents are lost when power is
removed); 50 with the 607XAA-570 Non-Volatile
Memory Option (contents are retained for about 4
years after power is removed), Front panel setups
can be stored in each location and later recalled.
FREQUENCY SWEEP
Sweep Modes .
Auto, (repetitive), single, manual.
Sweep Functions .
Symmetrical sweep, asummetrical sweep, sweep
speed.
Data Entry Parameters .
Sweep width and sweep increment.
Sweep Speed.
When slow sweep speed is not selected, the
instrument will sweep frequency as fast as possible
without regard to whether or not the frequency is
settled. When slow sweep speed is selected, the
settled period of each increment can be set to 20 ms,
50 ms, 100 ms, 200 ms. and 500 ms.
Sweep Output .
Oto +10V, up to 1000-point stepped ramp. Available
at the front panel SWP OUT connector.
Penlitt/Z Axis Blanking Output ...
TTL level at the rear panel PEN LIFT connector.
High during sweep retrace and until the next sweep
starts.
REMOTE CONTROL
interface .
IEEE Standard 488, 1978.
Functions Controlled .
Ait front panel controls except the POWER and MOD
OUT controls.
Status indicators .
REM (remote), ADDR (addressed), SRQ.
interface Functions .
SH1. AHI, T6. TEO, L3, LEO, SRI, RL1, PPO, DC1,
DTI, CD.
GENERAL
Temperature
OPERATING .
NON-OPERATING.
0 to 50°C (32 to 122®F)
. -40 to 75“ C (-40 to 167° F)
Operating Humidity.
. 0 to 95% up to 25° C (77° F)
Oto 75% up to 50°C (122° F)
