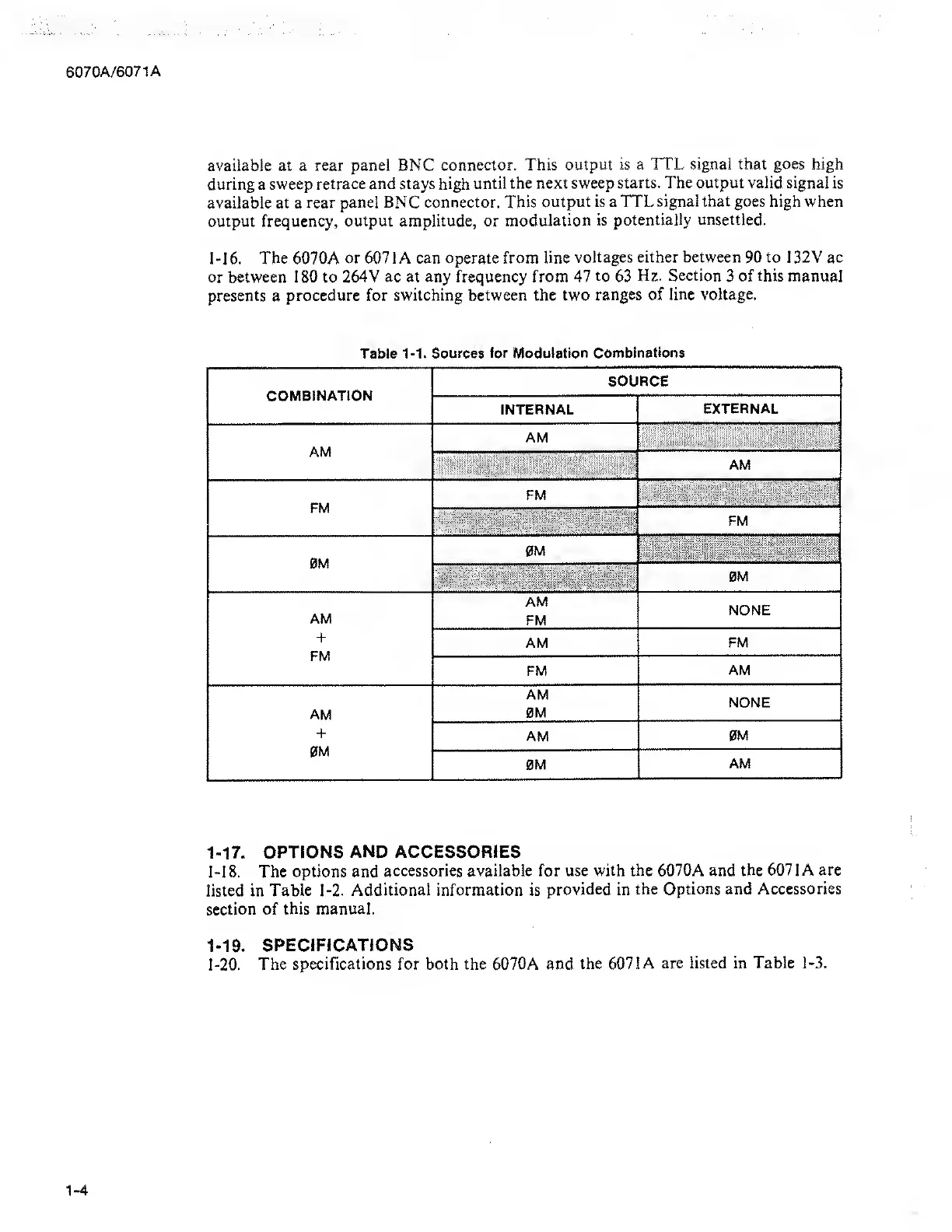

available
at
a
rear
panel
BNC
connector.
This
output
is
a
TTL
signal
that
goes
high
during
a
sweep
retrace
and
stays
high
until
the
next
sweep
starts.
The
output
valid
signal
is
available
at
a
rear
panel
BNC
connector.
This
output
is
a
TTL
signal
that
goes
high
when
output
frequency,
output
amplitude,
or
modulation
is
potentially
unsettled.
1-16.
The
6070A
or
6071A
can
operate
from
line
voltages
either
between
90
to
132V
ac
or
between
180
to
264V
ac
at
any
frequency
from
47
to
63
Hz.
Section
3
of
this
manual
presents
a
procedure
for
switching
between
the
two
ranges
of
line
voltage.
Table
1-1.
Sources
for
Modulation
Combinations
COMBINATION
SOURCE
INTERNAL
EXTERNAL
AM
AM
AM
FM
FM
-.M
0M
0M
kJM
AM
+
FM
AM
FM
NONE
AM
FM
FM
AM
AM
+
0M
AM
0M
NONE
AM
0M
0M
AM
1-17.
OPTIONS
AND
ACCESSORIES
1-18.
The
options
and
accessories
available
for
use
with
the
6070A
and
the
6071A
are
listed
in
Table
1-2.
Additional
information
is
provided
in
the
Options
and
Accessories
section
of
this
manual.
1-19.
SPECIFICATIONS
1-20.
The
specifications
for
both
the
6070A
and
the
6071A
are
listed
in
Table
1-3.
