Fluke 6070A - Introduction and Specifications

Section 1
Introduction and Specifications
1-1. THE 6070A/6071A INSTRUCTION MANUAL SET
1-2. The John Fluke Models 6070A and 6071A RF Synthesized Signal Generators are
documentated by a set of four manuals: the 6070A/6071A Operator Manual, the
6070A/6071A Calibration Manual, the 6070A/6071A Service Manual, and the
6070A/607IA Schematic Manual (Figure 1-1). The 6070A/607iA Operator Manual
introduces the operator to the instrument; familiarizes the operator with all instrument
controls, connectors, and indicators; and presents detailed operating information and
procedures for both manual (local) and systems (remote) operation. The 6070A/607IA
Calibration Manual provides procedures for general maintenance, performance checks,
and calibration adjustments. The 6070A/6071A Service Manual contains a description
of the theory of operation, troubleshooting procedures, and a list of replaceable parts.
The 6070A/6071A Schematic Manual contains schematic digrams, wire lists,
interconnects diagrams, and an overall basic block diagram of the instrument.
1-3. The major difference between the two models is that the 6071A has twice the upper
frequency limit of the 6070A. Because of their similarity, most of the text in this manual
will apply to both models. Text that applies to just the 6070A or just the 6071A will be
identified as such.
6070A/6071A
Operator
Manual
6070A/6071A
Calibration
Manual
6070A/6071A
Service
Manual
6070A/6071A
Schematic
Manual

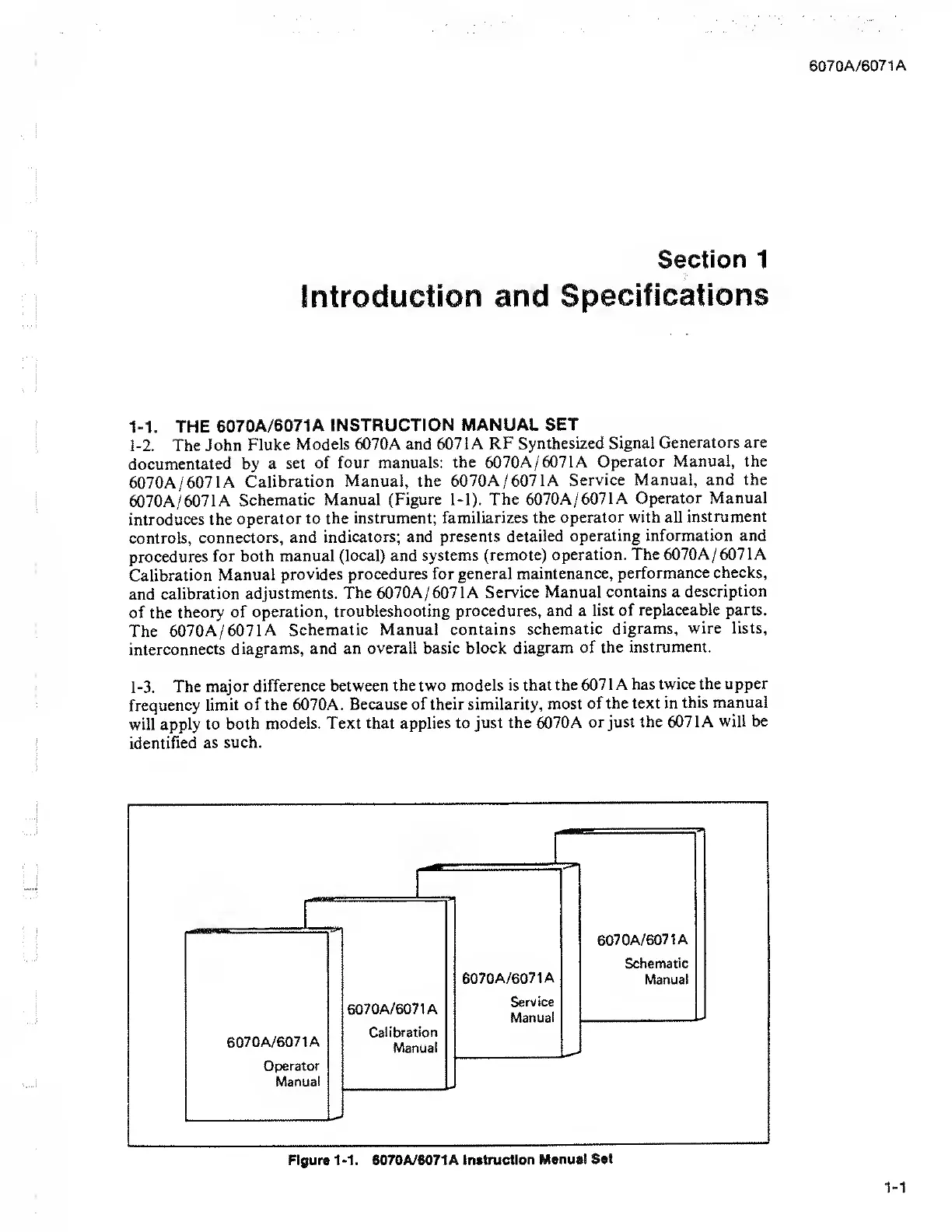

Figure 1-1. 6070A/S071A Instruction Manual Set
