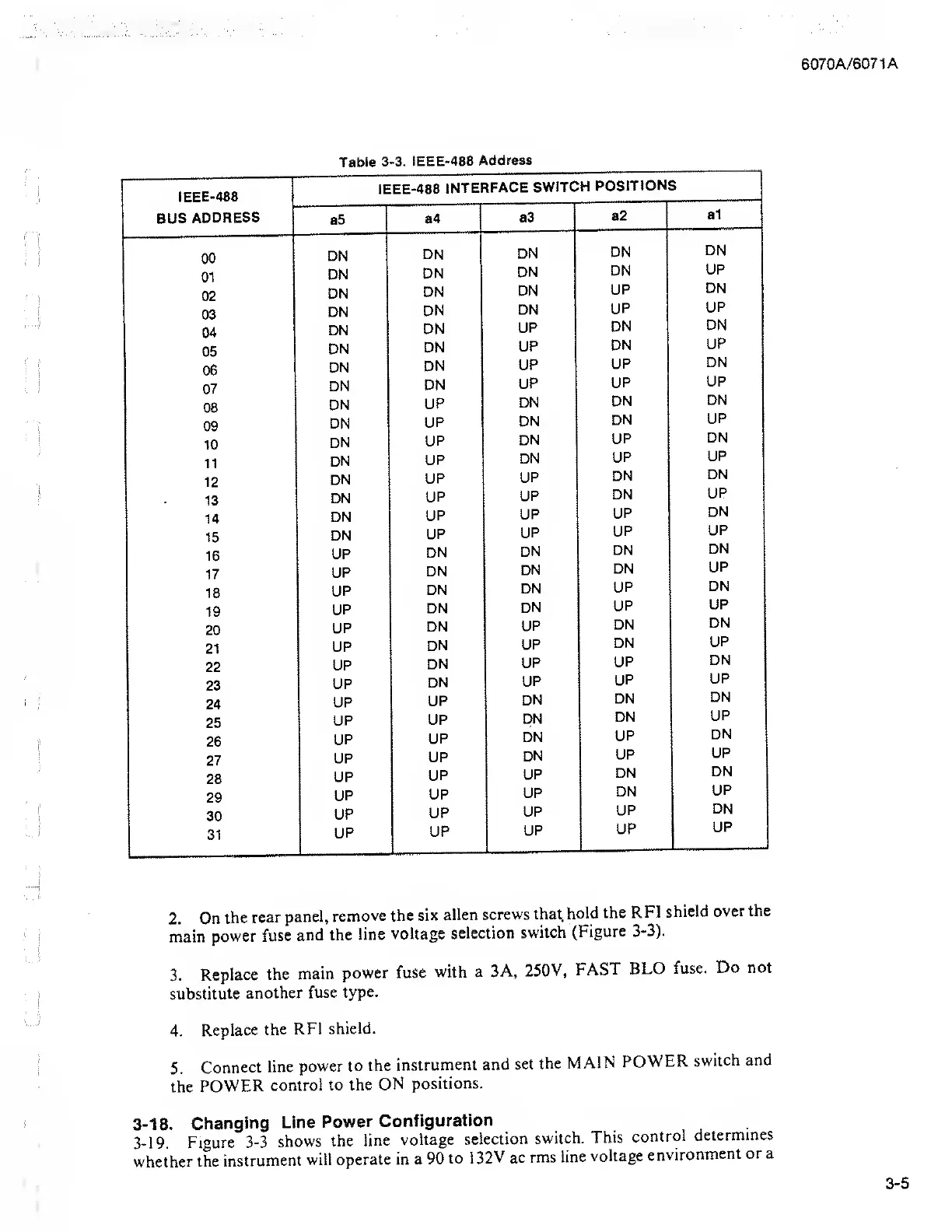

6070A/6071A
2. On the rear panel, remove the six alien screws that, hold the RFl shield over the
main power fuse and the line voltage selection switch (Figure 3-3).
3. Replace the main power fuse with a 3A, 250V, FAST BLO fuse. Do not
substitute another fuse type.
4. Replace the RFI shield.
5. Connect line power to the instrument and set the MAIN POWER switch and
the POWER control to the ON positions.
3-18. Changing Line Power Configuration
3-19. Figure 3-3 shows the line voltage selection switch. This control determines
whether the instrument will operate in a 90 to 132V ac rms line voltage environment or a
3-5
