Fluke 74X Series User Manual

Performance Verification Tests
17
Frequency Measurement
Proceed as follows to verify the Frequency Measurement function:
1. Connect the UUT as shown in Figure 5.
2. Set the UUT to the Frequency Measurement function.
3. Select the <20 Hz range for the first step. Use the ≥20 Hz range thereafter.
4. Set the 5500A to the first test point in Table 7.
5. Observe that the frequency reading on the UUT is within the range shown.
6. Continue through the test points, using the ≥20 Hz range of the UUT.
7. When you are finished, set the 5500A to [STANDBY].
TC
mA mA
V
V
RTD
RTD
SOURCE
300V
MAX
30V
MAX
30V
MAX
30V
MAX
MEAS
CAT
FLUKE 74X
20V PK
MAX
HI
LO
TC
TRIG
OUT
1000V
RMS
MAX
20V
RMS
MAX
1V PK
MAX
20V PK
MAX
NORMAL AUX
SCOPE
V, ,
RTD
A, -SENSE,
AUX V
200V PK
MAX
FLUKE 5500A CALIBRATOR
gb06f.eps

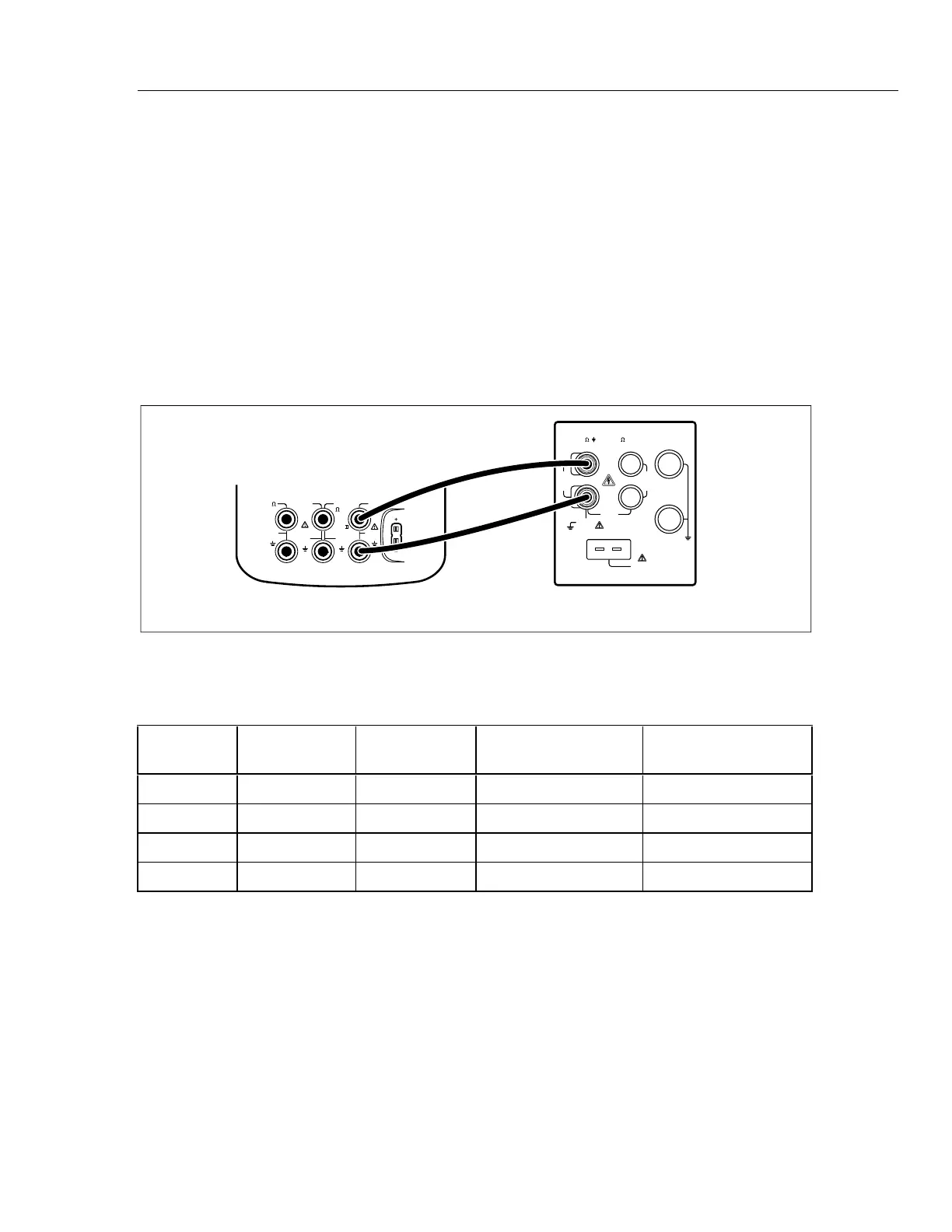

Figure 5. Frequency Measurement Verification Connections
Table 7. Frequency Measurement Verification Points
UUT Range
Frequency
Input
V RMS
Minimum
1 & 2 Year
Maximum
1 & 2 Year
<20 Hz 10 Hz 150 mV 9.95 10.05
>20 Hz 500 Hz 150 mV 499.5 500.5
>20 Hz 10 kHz 700 mV 9.995 10.005
>20 Hz 50 kHz 1.4 V 49.95 50.05
