Fluke 8010A User Manual

V
Volts
dc
Autoranges to
the
4V, 40V, 400V
or 1000V
range.
mV
Millivolts dc
Single 400
mV range.
ml)
-#-
Resistance
(O),
conductance
(1/0),
capacitance or continuity
»m
testing
Press BLUE button to
toggle
between
the resist-
ance
and capacitance function. (The
response of
the
display and the pushbuttons
slows
down in the
capacitance
mode.)
Autoranges to the 400O,
4
kO,
40
kO,
400 kO, 4 MO,
or
40
MO
resistance range.
In
Manual Ranging mode, 40 nS conductance
range (equal to a
25-100,000
MO
range)
is select-
able. (See
item
9.)
Autoranges to the 05.00
nF,
.0500
fjF,
0.500
fjF,
and
05.00 /jF capacitance
range.

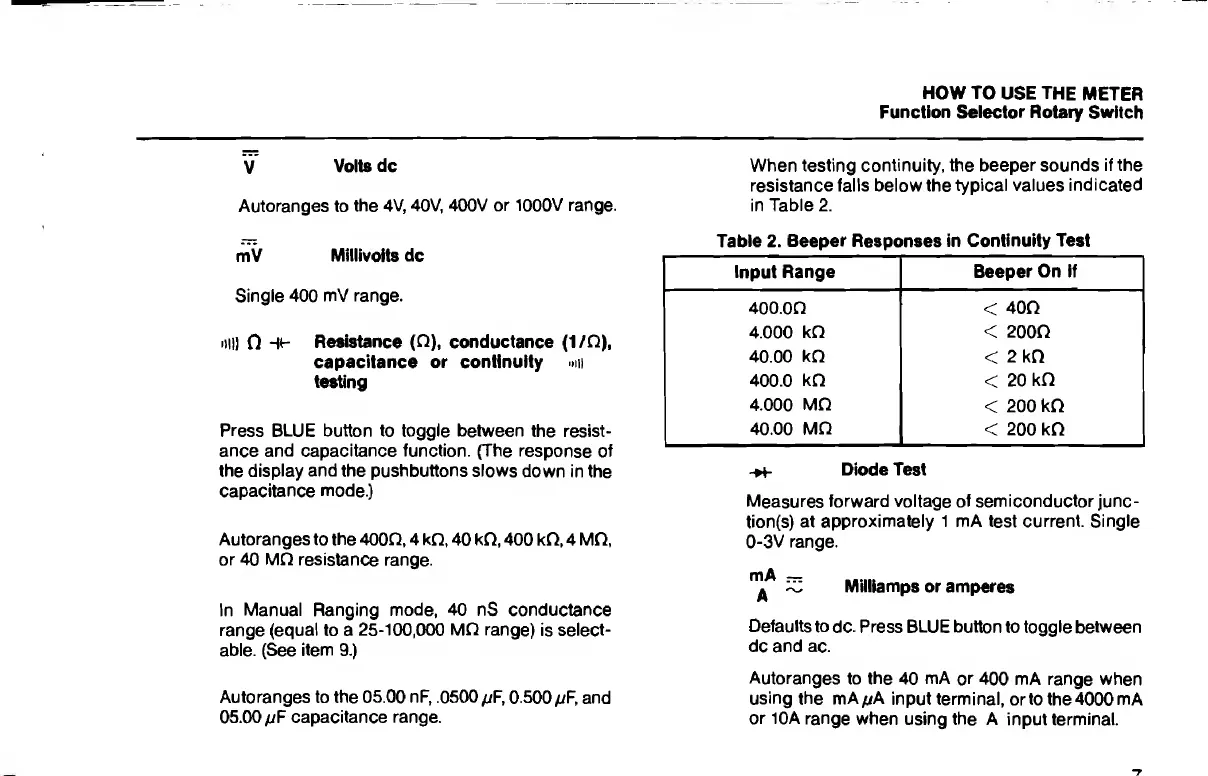

HOW TO
USE THE
METER
Function Selector Rotary
Switch
When testing continuity, the beeper
sounds if the
resistance falls below the
typical values indicated
in Table 2.
Table 2.
Beeper
Responses
in
Continuity Test
Input
Range
Beeper On If
400.00
<
40O
4.000
kO < 200O
40.00
kO
<
2kO
400.0
kO
<
20 kO
4.000
MO
<
200
kO
40.00
MO
< 200
kO
Diode Test
Measures
forward voltage of semiconductor junc-
tion®
at
approximately 1 mA
test
current. Single
0-3V range.
m
£
S3 Milliamps or
amperes
Defaults to
dc.
Press BLUE button
to toggle between
dc and
ac.
Autoranges
to the 40
mA
or
400 mA range when
using
the
mAj/A
input terminal, orto
the 4000
mA
or 10A
range
when using the A
input terminal.
