8270A/8370A
Operators Manual
8
1
2
ifb001.eps

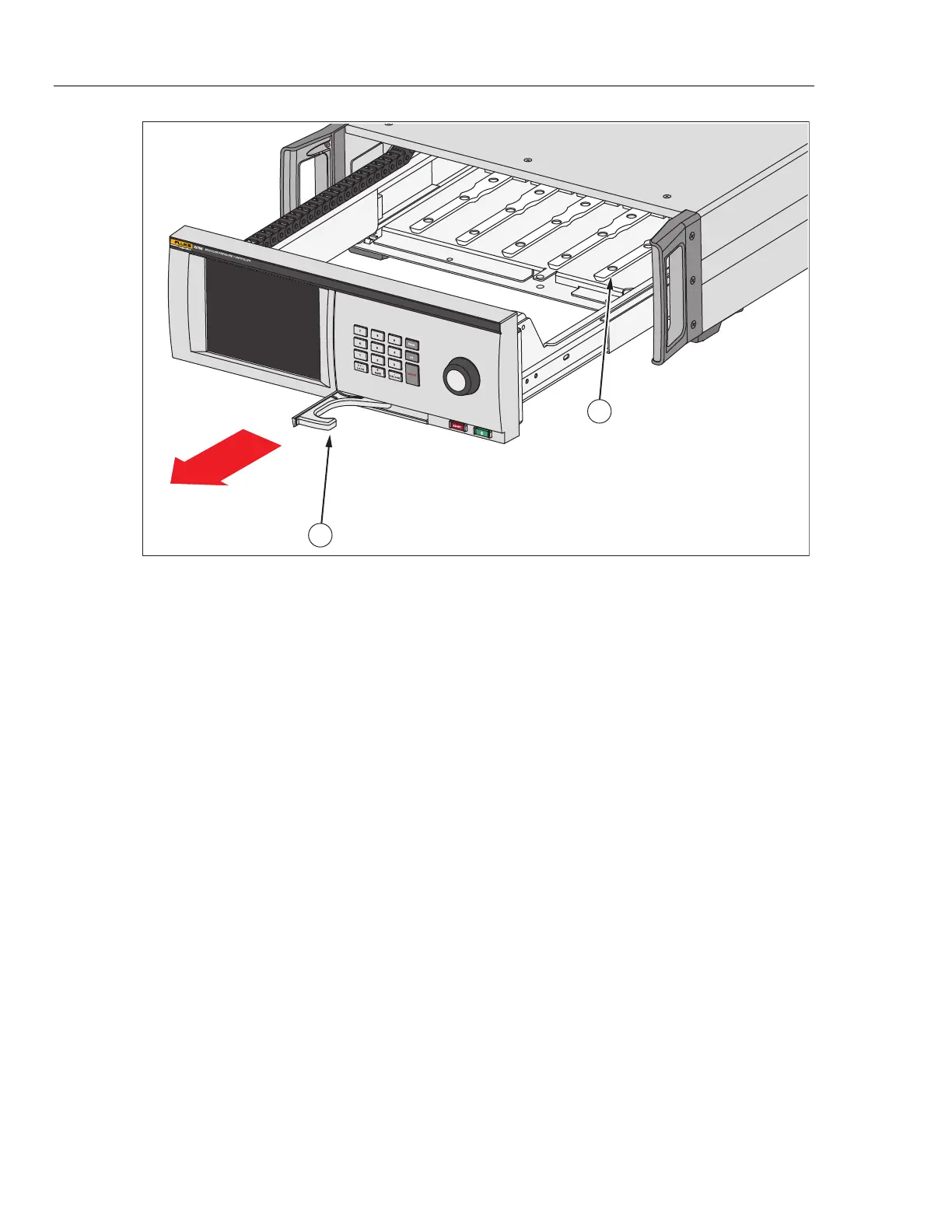

Figure 1. Module Bay
PMM Installation
The PMMs are delivered in a separate box. Install the PMMs with the Product
turned on or off. For the 8270A, the PMMs can be installed in any order without
the need to plug any of the unused slots. For the 8370A, the measure module to
the far right (closest to the control module) must have a full scale of 70 MPa
(10 000 psi) or greater. A module must be installed in this slot for the system to
properly operate. When the front panel is opened, information such as the
pressure range of each module is shown after it is connected. The Product
detects the PMM information when installed and shows the information in the
Modules menu (see Modules).
