Fluke 8270A - External Driver Communication

8270A/8370A
Operators Manual
50
External Driver Communication
The Product has four external 24 V dc powered drivers. These drivers support
several optional accessories and can support the modulated driving of solenoids
for customized solutions. The driver status can be set with the display and
remote interfaces.
Each driver is a modulated low-side switched 24 V dc component. Each Channel
includes a PTC-type resettable fuse.
Maximum continuous power per channel is 10 W and total continuous power
maximum for all 4 channels combined is 24 W. See Figure 11.
6
SWITCH TEST
30V MAX
SYSTEM
DRV1 DRV2
USB LAN IEEE-488
R
DRV3 DRV4
MWP
48 MPa

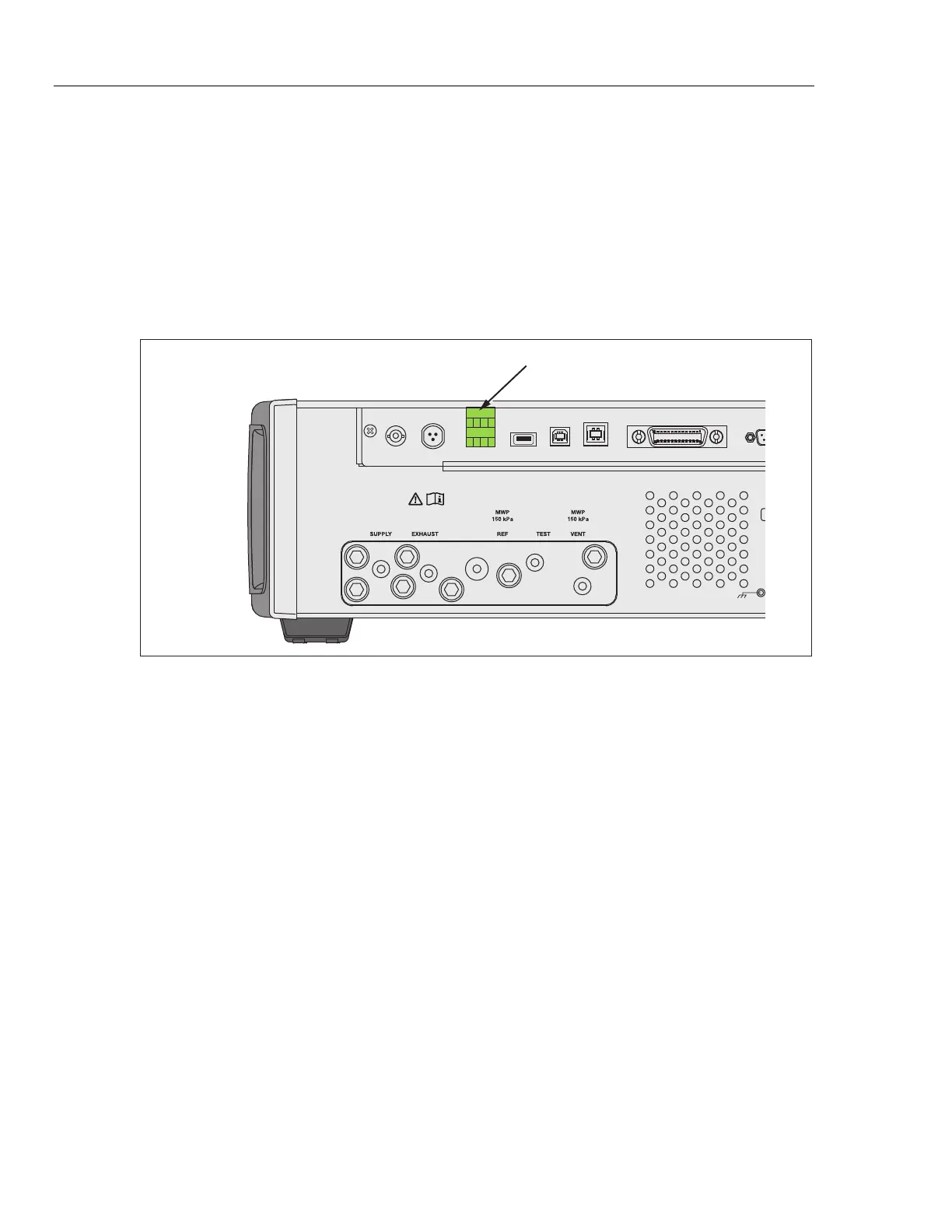

Drivers
ifb030.eps
Figure 11. Drivers
