High-Pressure Modular Controller
Main Menu
27
Table 9. Main Menu
1
2 3 4 5
18
17
16
15 14 13 12
7
8
9
10
11
6

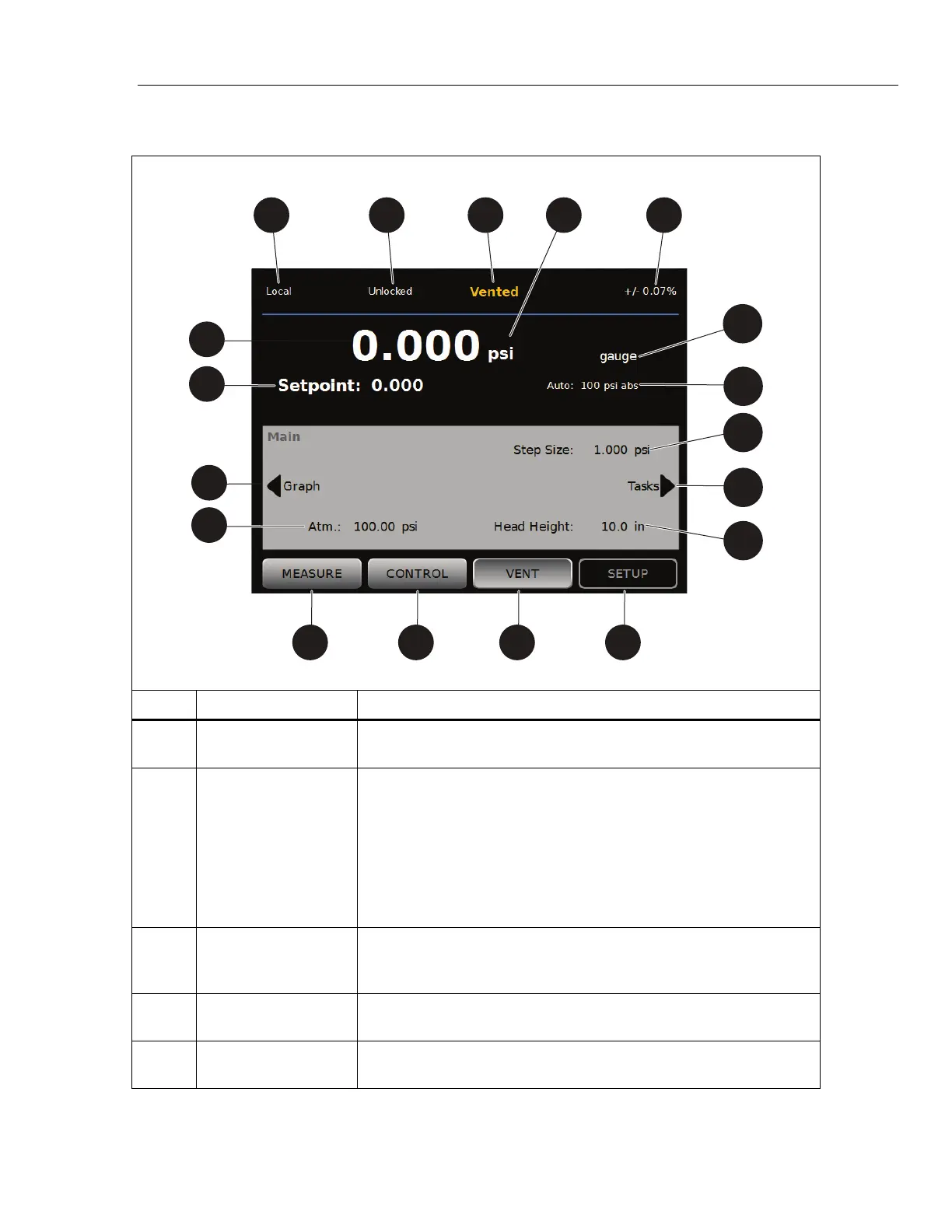

huo015.eps
Item Indicator/Name Function
Pressure
Measurement
Shows the pressure measured by the active PMM.
Local / Remote
Shows when the Controller is under remote operation by a PC. See
the 6270A, 8270A, 8370A Remote Programmers Guide for more
information.
Note
When the Product enters Remote mode, the
front panel is automatically locked to prevent
accidental changes. See .
Locked/Unlocked
When the screen is locked, the front panel keys and touch display
are locked. Push and hold down for 4 seconds to lock or unlock
the screen.
D
Measurement
Indicator
Shows when the pressure is stable and ready for a measurement.
See Pressure Measurement for more information.
E Unit of Measure
Shows the unit of measure and opens a menu to change the unit of
pressure.
To Next Page
