In these primary functions, the solenoid drive is modulated to reduce power
consumption during continuous use.

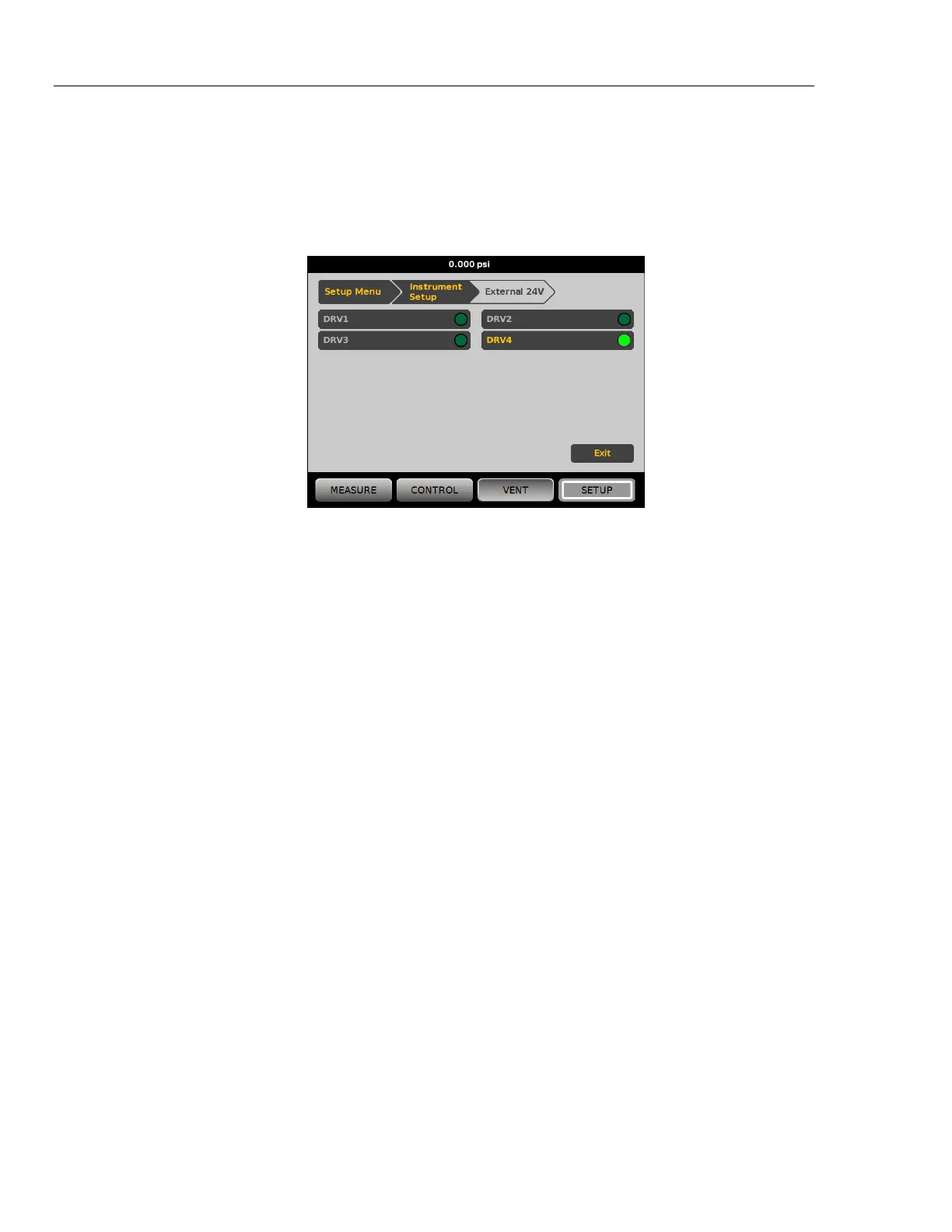

Figure 13 shows the status of the drivers.
On is designated by a light green indicator (DRV4)
Off is designated by a dark green indicator (DRV1, DRV2, DRV3)
Figure 13. External 24V Screen
If drivers are dedicated to a given accessory, then DRV# will be greyed out and
the status cannot be altered with the touchscreen interface.
In Figure 13, the CPS is installed so DRV1, DRV2 , DRV3 are greyed out. If the
isolation valve option is installed, only DRV4 is greyed out.
