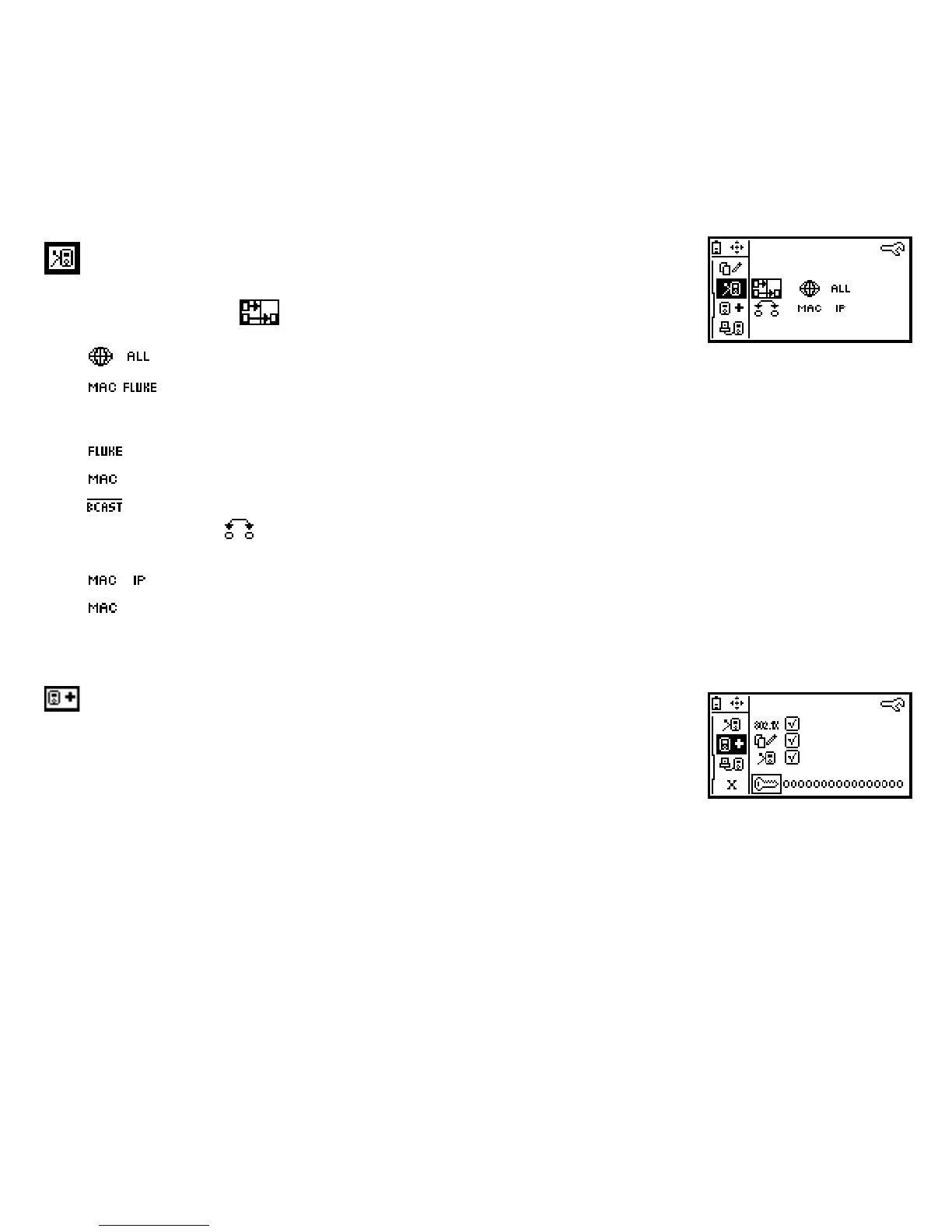

Reflector Mode configuration (optional feature)
Highlight the packet type
and then use the up or down arrow key to select the
packet type that the reflector will respond to:
- any packet
- destination MAC is this LinkRunner Duo and the data string
contains a special Fluke Networks byte string (generated by the Fluke Networks
instrument)
- the data string contains a special Fluke Networks byte string
- destination MAC is this LinkRunner Duo
- any non-broadcast packet
Highlight the swap icon
and then use the up or down arrow key to select
whether the source and destination addresses are swapped in the outgoing packet:
- swaps the source/destination MAC and IP addresses
- swaps the source/destination MAC address only
Blank - no swap; packet is sent out as it was received
You can also use the LinkRunner Connect PC application to configure the Reflector.
Option Key entry
To enable an option: Press the selection button to get into the options menu. Press
the selection button and use the up/down arrow keys to choose the key digit. Use the
right arrow key to move to each key digit. Press the selection button to enter the key
code. Then press the left arrow key to exit. A successfully enabled option will be
indicated by a check mark. You can also use the LinkRunner Connect PC application to
enable options.
