Fluke T5-1000 User Manual

T5-600/T5-1000
Electrical Tester
6
21 cm
(~8.25")
10 turns of #14
single-conductor
magnet wire
Separate into two 5-turn coils.
Use cable ties to
hold coils together
Connect to Calibrator
Mount Banana
plugs on wire end
qp7f.eps

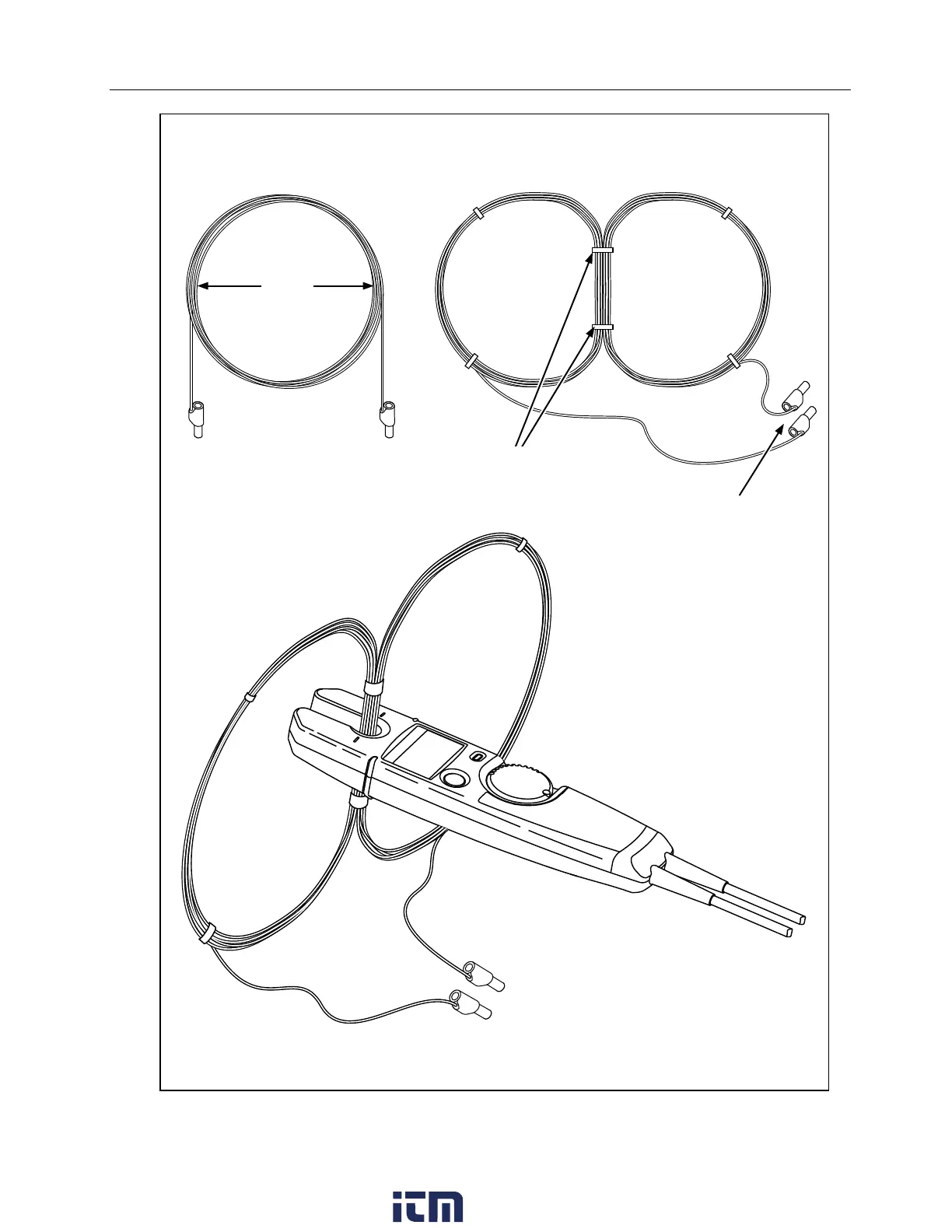

Figure 1. Making the Butterfly Coil
w ww. . com
information@itm.com1.800.561.8187

Fluke T5-1000 Specifications

General

Safety Rating	CAT III 1000 V, CAT IV 600 V
Display Type	Digital
Continuity Beeper	Yes
OpenJaw Current Measurement	Yes
Resistance Measurement Range	1000 Ω
Dimensions	203 x 51 x 30 mm (8.0 x 2.0 x 1.2 in)
