Fluke VT06 User Manual

VT06/VT08
Users Manual
4
Trigger
The Trigger is located in the standard trigger position for a pistol-grip device.
Use the Trigger to capture and save an image. The Trigger is also the laser pointer switch. From
any menu, use the Trigger to return to Camera mode.
Control Panel
Use the control panel to change parameters or select functions and options. You can also use P
to power on or power off the Product. For the VT08 device only, you can also use the O button
to turn on or turn off the LED Light. Ta b l e 4 shows the functions of the buttons on the Control
Panel.

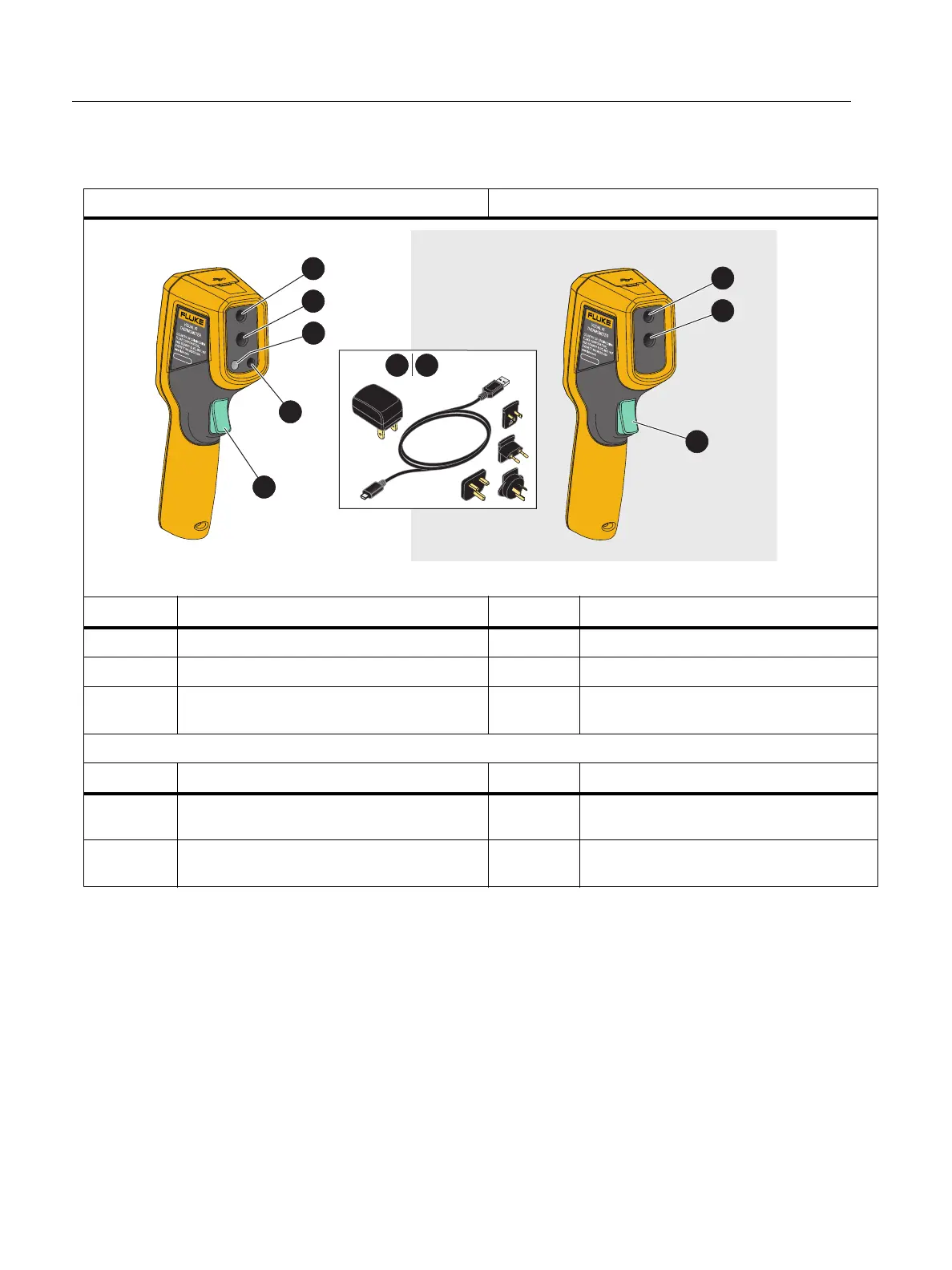

Table 3. Back of the Products
VT08 VT06
VT08
Item Description Item Description
A
Visual Light Camera Lens
D
LED
B
Infrared Camera Lens
E
Tr ig g er
C
Laser Pointer (the Japanese model
has no laser pointer)
F
AC Power Supply with Mains
Adapters
VT06
Item Description Item Description
A
Laser Pointer (the Japanese model
has no laser pointer)
C
Tr ig g er
B
Infrared Camera Lens
D
AC Power Supply with Mains
Adapters
1
2
3
4
5
1
2
3
6 4
VT08 VT06
