Fluval G3 User Manual

HYDRO TECH PERFORMANCE MONITOR
ADVANCED FILTRATION SYSTEM
www.fluval-g.com
EN.38
11
12
08 09
22
16
17
20
21
19
24
10
01
02
06
05
07
03
04
18
25
23
14
15
26
13
01. Priming button
02. Priming chamber
03. Mechanical cartridge
04. Mechanical cartridge cup
05. Chemical cartridge cap
06. Chemical cartridge
07. Chemical cartridge cup
08. AQUASTOP release lever
09. AQUASTOP valve lever
10. AQUASTOP
11. Filter head
12. Biological basket cover
13. Biological baskets
[G3 x 2/G6 x 3]
14. Filter canister gasket
15. Filter canister
16. Cross rim assembly
17. Rim attachment
18.Outputnozzle+extension
19. Hosing
20. Spray bar suction cups
21. Spray bars
22. Telescopic intake stem
23. Intake strainer
24. Cartridge lid
25. Impeller assembly
26.Impellercover+“O”ring

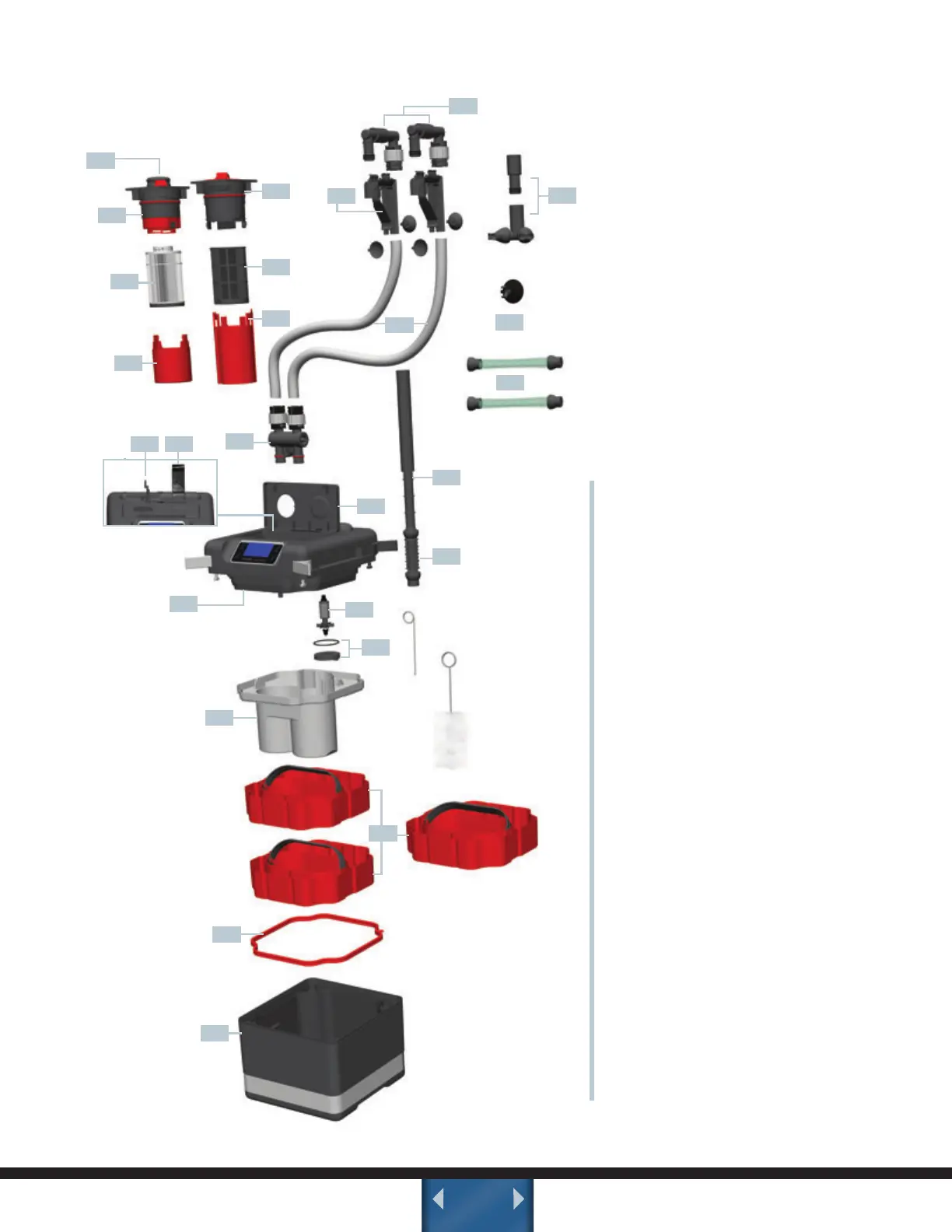

EXPLODED PARTS VIEW
RETURN TO CONTENTS PAGE

Fluval G3 Specifications

General

Filter Media Baskets	3
Filter Type	External Canister
Flow Rate	185 GPH (700 L/H)
Filtration Stages	3
Voltage	120V/60Hz
Hose Diameter	5/8 inch
